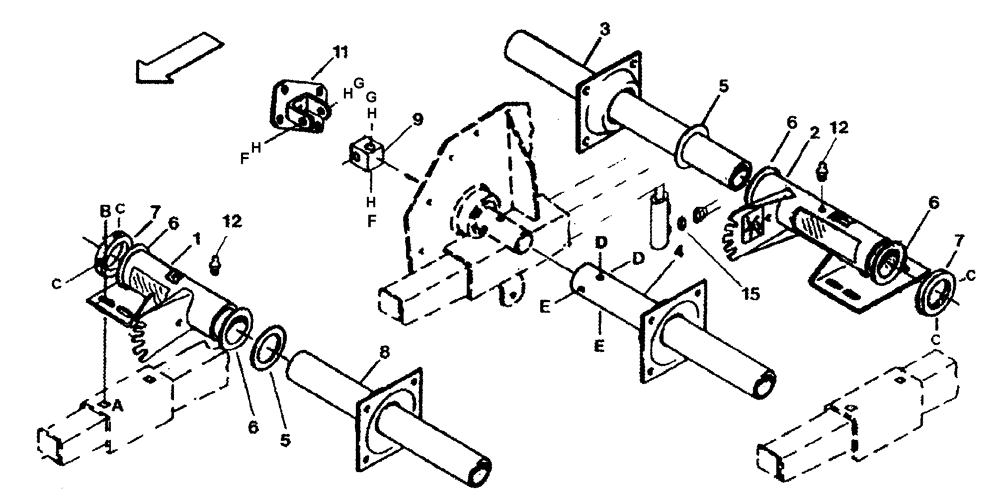

Запчасти Case IH 1042 (09-15) - PICKUP REEL MOUNTING PACKAGE - 36.0 FOOT HEADER

1

131464A1

SUPPORT

Right Hand, Inc. 6 (2), 12 (1), Inc. Decal

1шт.

2

131466A1

SUPPORT

Left Hand, Inc. 6 (2), 12 (1), Inc. Decal

1шт.

3

131463A1

TUBE

End, Left Hand

1шт.

4

131462A1

TUBE

Drive, Center Reel Arm

1шт.

5

1337235C1

WASHER

2шт.

6

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

4шт.

7

1344624C1

RETAINER COLLAR

2шт.

8

131463A1

TUBE

Right Hand

1шт.

9

388527A1

BLOCK

Inc. 10

1шт.

10

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

(Not Shown)

1шт.

11

344810A1

PLATE

Inc. Clevis

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

15

596300R1

PLATE

Orifice

1шт.

a

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

3/8 x 1

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

83-1314

SET SCREW,5/16" - 18 x 1/4"

5/16 x 1/4

1шт.

d

27-8231

CLEVIS PIN,1/2" x 2 5/16"

1шт.

e

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

f

407403A1

BOLT

3/4 x 4-1/4

1шт.

g

231-41412

NUT,3/4"-10, GB

3/4 NC

1шт.

h

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

1шт.
