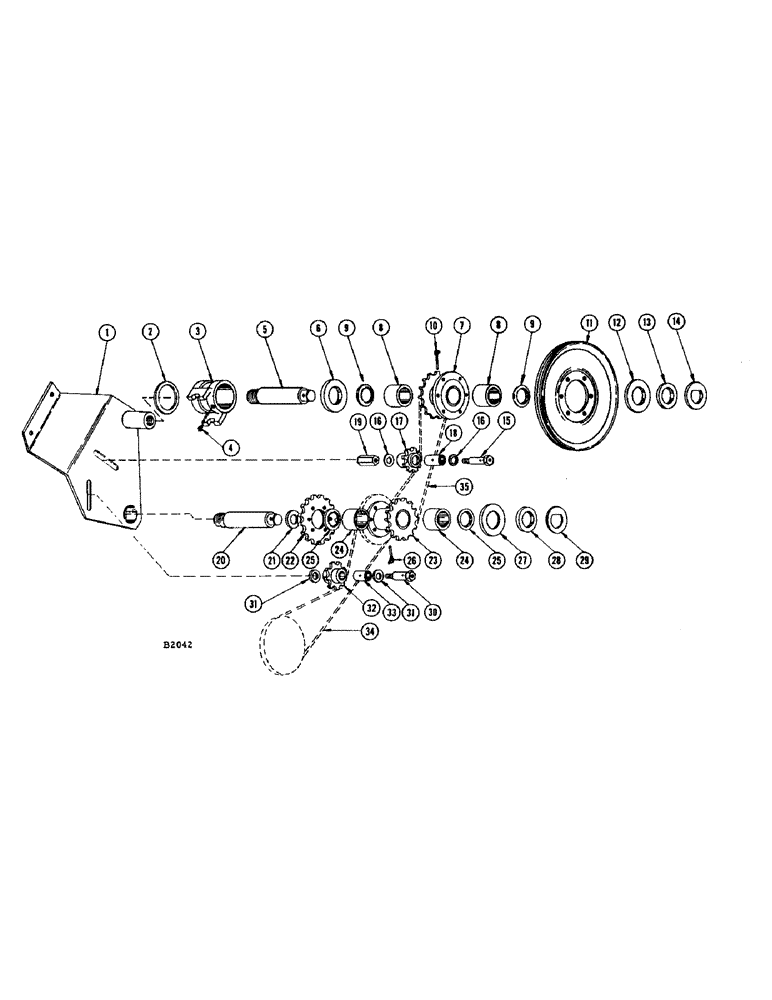

Запчасти Case IH F345 (10) - MAIN DRIVE SPROCKETS AND TIGHTENERS, MODELS 600, 660, 700, 900, 960 (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F79957
BRACKET - pivot, L.H.
1шт.
BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)
2шт.
PIN - cotter 3/8" x 3-1/2" (132-206)
1шт.
2
LS3288S
WASHER - spacer
1шт.
3
F83093
BEARING
- header pivot
1шт.
4
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
5
F11754
SHAFT - stub, rear
1шт.
PIN - cotter 1/4" x 2" (132-154)
1шт.
6
O2089CS
X
WASHER - thrust
1шт.
7
F79959
SPROCKET AND HUB - (24T) gear box drive
1шт.
8
F7356
NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W
BEARING - (Torrington #B2414)
2шт.
9
F7357
SEAL - oil
2шт.
10
219-3
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 PT
1шт.
11
F81287
SHEAVE - (15" O.D.) drive
1шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)
6шт.
12
O31402HT
WASHER - retainer
1шт.
13
F11757
SPACER
1шт.
14
F11758
WASHER - retaining
1шт.
15
O4925CS
STUD - tightener sprocket
1шт.
16
O236CH
WASHER - spacer
2шт.
17
F82220
SPROCKET - rear tightener (14T), gear box drive
1шт.
18
O2167CK
X
BEARING - (Torrington #BL1628OH)
1шт.
19
F18041
SPACER - rear tightener sprocket
1шт.
BOLT - 5/8" x 1-1/4" N.F. hex. (14-1020) l. w. (92-10) and pl. wshr. (195-41)
1шт.
20
F11754
PIN - pivot, front jackshaft drive
1шт.
PIN - cotter 1/4" x 2" (132-154)
1шт.
21
O2089CS
X
WASHER - thrust
1шт.
22
F11760
SPROCKET - (27T) gear box drive
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)
4шт.
23
F79962
SPROCKET AND HUB - (24T) gear box drive
1шт.
24
F7356
NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W
BEARING - (Torrington #B2414)
2шт.
25
F7357
SEAL - oil
2шт.
26
219-3
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 PT
1шт.
27
O31402HT
WASHER - retainer
1шт.
28
F11757
SPACER
1шт.
29
F11758
WASHER - retainer
1шт.
30
O4925CS
STUD - tightener sprocket
1шт.
NUT - 5/8" N.F. hex. (25-1110) l. w. (92-10) and pl. wshr. (195-41)
1шт.
31
O236CH
WASHER - spacer
2шт.
32
F91595
SPROCKET - (14T) front tightener, gear box drive
1шт.
33
O2167CK
X
BEARING - (Torrington #BL1628OH)
1шт.
34
F18039
CHAIN - main drive, front (NSS - See Page 5)
1шт.
35
F12319
X
CHAIN - main gear box drive, rear (NSS - See Page 5)
1шт.
Выбрано товаров: 43
