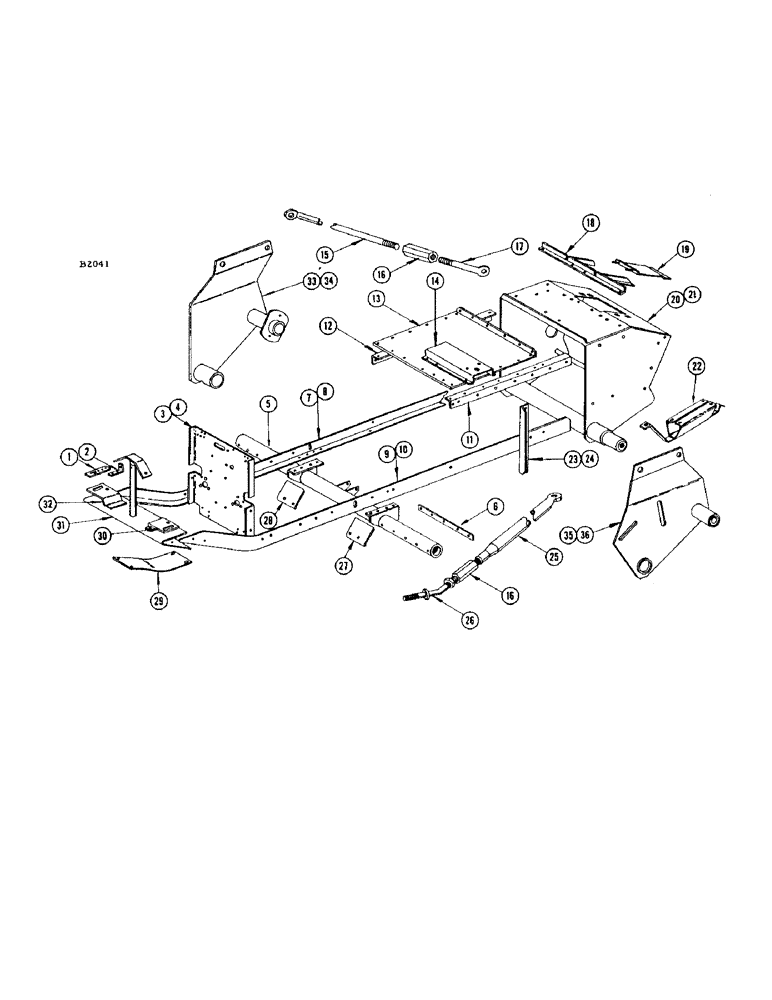

Запчасти Case IH F345 (06) - MAIN FRAME AND MOUNTING HEAD (58) - ATTACHMENTS/HEADERS

1

F10493

HOOK - key slot, floating point chain

1шт.

2

F10492

CLIP - mounting, for key slot

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) nut (25-105)

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) nut (25-115)

1шт.

3

F7143

PLATE - front support (Before #8251001 and after #8266001) See F12520

1шт.

4

F12520

PLATE - front support (#8251001 to #8266001) See F7143

1шт.

5

F79926

SUPPORT - main pipe

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118) l. w. (92-8)

8шт.

BOLT - 1/2" x 4-1/2" N.F. hex. (14-872) nut (25-118)

2шт.

6

F21049

SPACER - support pipe

2шт.

7

F17961

RAIL - main, R.H. (Before #8251001) See F12519

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

1шт.

8

F12519

RAIL - main, R.H. (#8251001 and after) Replaces F17961

1шт.

9

F17960

SCREW

RAIL - main, L.H. (Before #8251001) See F12518

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

1шт.

10

F12518

RAIL - main, L.H. (#8251001 and after) See F17960

1шт.

11

F17982

ANGLE - rear top, L.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

1шт.

12

F17981

ANGLE - rear top, R.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

5шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820_) nut (25-118)

1шт.

13

F11715

PLATE - top, throat

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

9шт.

BOLT - 5/16" x 1/2" N.F. hex. (14-58) nut )25-115)

6шт.

14

F82117

SUPPORT - gear box

1шт.

15

F18025

BRACE - upper end, long

2шт.

NUT - 3/4" N.C. jam (25-1412)

2шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118)

2шт.

16

11726K

TURNBUCKLE - upper and lower feeder spout braces

4шт.

17

F18026

BRACE - upper end, short

2шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118) l. w. (92-8)

2шт.

18

F79944

ANGLE - door latch, mounting head

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6)

2шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105)

4шт.

19

F79946

DOOR - top, mounting head

1шт.

20

F79942

MOUNTING HEAD - (Before #8251001) See F86655

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

4шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

4шт.

21

F86655

MOUNTING HEAD - (#8251001 and after) See F79942

1шт.

22

F86657

RUNNER - auger (#8251001 and after)

2шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105)

6шт.

BOLT - 5/16" x 5/8" N.C. rhd. sq. nk. (11-510) nut (25-105)

6шт.

23

F17975

ANGLE - top rear support (Before #8251001 See F12523

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6)

2шт.

24

F12523

ANGLE - top rear support (#8251001 and after) See F17975

1шт.

25

F82140

BRACE - lower feeder spout support

2шт.

26

F82142

ANCHOR - feeder spout brace

2шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) nut (25-118)

2шт.

NUT - 3/4" N.C. hex. jam (25-1412)

1шт.

NUT - 3/4" N.F. hex... (25-1112) l. w. (92-12)

2шт.

27

F7382

SHIELD - lower picking roll, L.H.

1шт.

BOLT - 1/2" x 4-1/2" N.F. hex. (14-872) nut (25-118)

2шт.

28

F7381

SHIELD - lower picking roll, R.H.

1шт.

BOLT - 1/2" x 4-1/2" N.F. hex. (14-872) nut (25-118)

2шт.

29

F7425

PLATE - skid

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

4шт.

30

F7129

BRACKET - gathering chain tightener, L.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

31

F76459

FRAME - front "U"

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118) l. w. (92-8)

4шт.

32

F7130

BRACKET - gathering chain tightener, R.H.

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

33

F79964

BRACKET - pivot, R.H. (Model 600 - 700 - 900 - 1000 - 1010)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

PIN - cotter 3/8" x 3-1/2" (132-206)

1шт.

34

F79975

BRACKET - pivot, R.H. (Model 800)

1шт.

PIN - cotter 3/8" x 3-1/2" (132-206)

1шт.

35

F79957

BRACKET - pivot, L.H. (Model 600 - 700 - 900 - 1000 - 1010)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

2шт.

PIN - cotter 3/8" x 3-1/2" (132-206)

1шт.

36

F79970

BRACKET - pivot, L.H. (Model 800)

1шт.

PIN - cotter 3/8" x 3-1/2" (132-206)

1шт.
