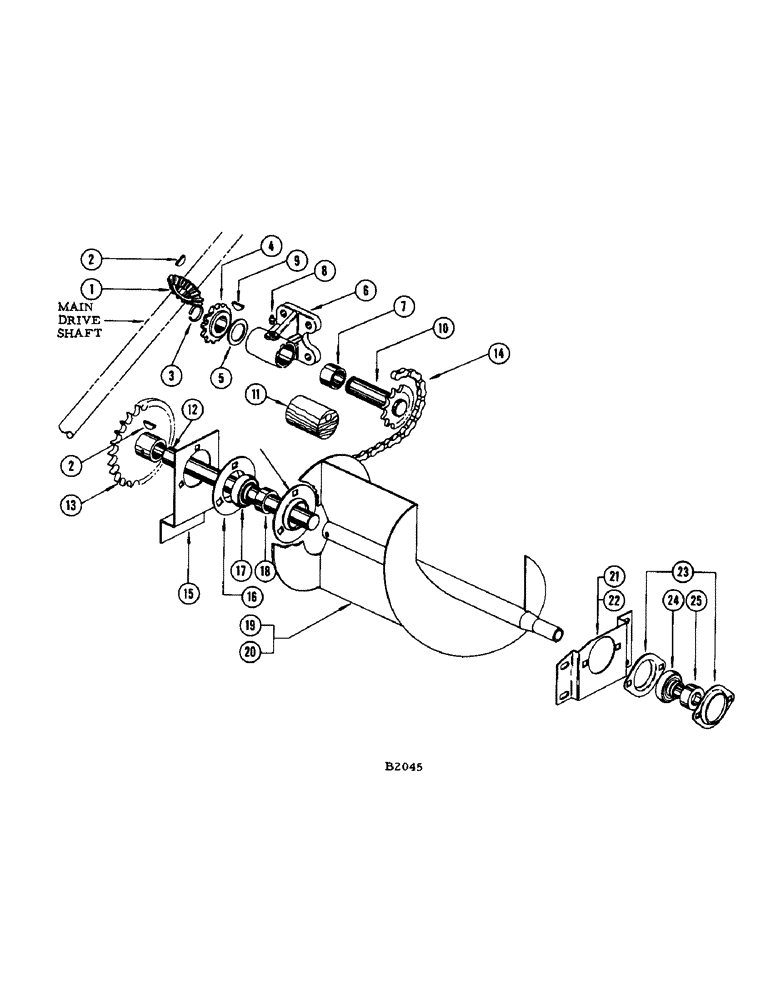

Запчасти Case IH F345 (68) - CROSS AUGER (58) - ATTACHMENTS/HEADERS

1

F53085

GEAR - miter

1шт.

2

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

3

O5872AB

X

SNAP RING

1шт.

4

F53084

GEAR - miter

1шт.

5

F53086

BEARING - thrust

1шт.

6

F83143

SUPPORT - gear

1шт.

7

F19015

BUSHING

BEARING - (Oilite #A-1304-2)

2шт.

8

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - greasee 1/8"

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

129-123

NUT,3/8"-24, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

1шт.

10

F83144

GEAR - shaft and sprocket

1шт.

11

306-1/2B

IDLER - chain

1шт.

BOLT - 5/16" x 3" N.F. hex. (114-123) nut (129-122)

1шт.

WASHER - 5/16" plain (195-103) l. w. (192-20)

1шт.

12

F20016

SHAFT - center

1шт.

13

F77103

SCREW

SPROCKET - drive

1шт.

SCREW - 1/4" x 3/8" N.C. sq. hd. cup pt. set (85-46)

1шт.

14

F12515

X

CHAIN - cross auger drive (NSS - See page 5)

1шт.

15

F20015

LARGE PIN

SUPPORT - bearing, inner

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123)

4шт.

16

O799CB

X

FLANGE - bearing (for 3074CSA bearings)

4шт.

BOLT - 5/16 x 3/4" rhd. sq. nk. (111-202) nut (129-102)

6шт.

17

O3785CS

X

BEARING - center shaft, (Fafnir #RA100-PPB w/O3785CS)

2шт.

18

O3785CS

X

COLLAR - bearing (for 3074CSA bearing)

2шт.

19

F83146

AUGER - R.H.

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (114-106) nut (129-122)

1шт.

LOCKWASHER - 5/16" I.T. Shakeproof (193-29)

1шт.

20

F83145

AUGER - L.H.

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex. (114-106) nut (129-122)

1шт.

LOCKWASHER - 5/16" I.T. Shakeproof (193-29)

1шт.

21

F20022

BRACKET - bearing, outer R.H.

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. short (12-512)

4шт.

NUT - 5/16" N.C. hex. (25-105) l. w. (92-5) fl. wshr. (95-5)

4шт.

22

F20021

BRACKET - bearing, outer L.H.

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. short (12-512)

4шт.

NUT - 5/16" N.C. hex. (25-105) l. w. (92-5) fl. wshr. (95-5)

4шт.

23

F9417

FLANGE

- bearing, for F90306 bearings

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

4шт.

24

F90306

BEARING ASSY

BEARING - auger shaft (Fafnir #RA104-PPB w/O4233CS)

2шт.

25

O4233CS

COLLAR

- bearing (for F50404 bearings)

2шт.
