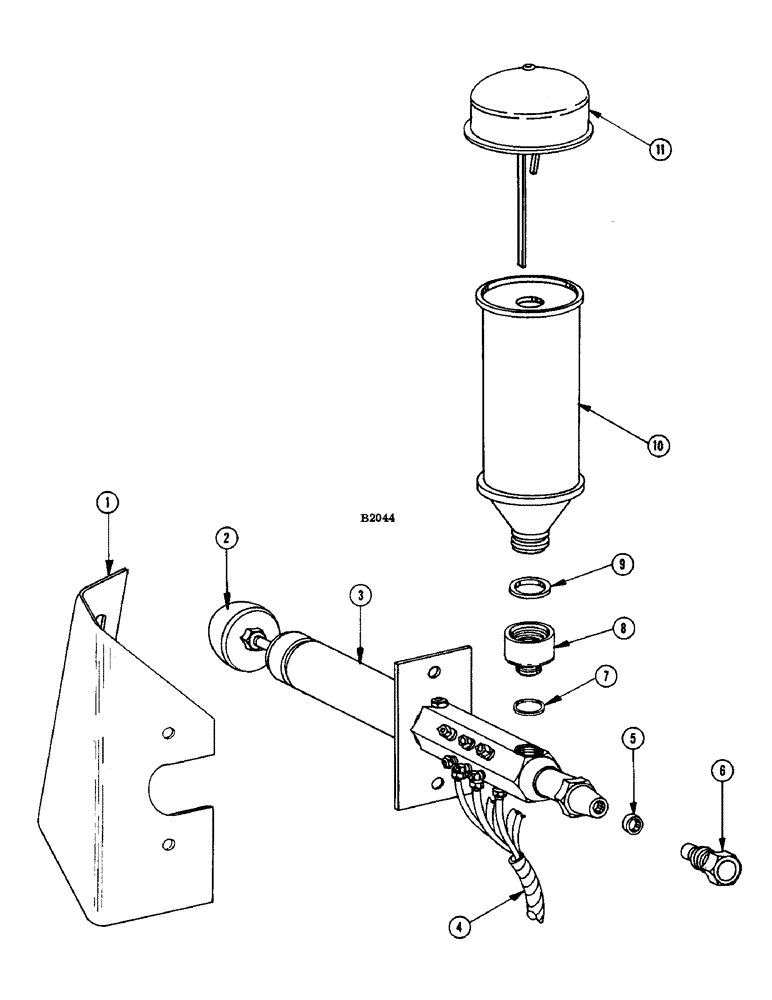

Запчасти Case IH F345 (66) - MULTI - LUBER, AND DECALS (58) - ATTACHMENTS/HEADERS

1

F13154

BRACKET - mounting, multi-luber (Replaces F12315)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

2

F12971

KNOB ASSEMBLY

1шт.

3

F86372

PUMP - multi-luber

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

2шт.

4

F86371

HARNESS

1шт.

5

F12306

GASKET

1шт.

6

F12335

PLUG - nose

1шт.

7

F12308

GASKET - cap

1шт.

8

F12309

ADAPTER

- reservoir

1шт.

9

F12310

GASKET - reservoir

1шт.

10

F86369

RESERVOIR - lubricant

1шт.

11

F86366

CAP - reservoir

1шт.

F12417

PIPE

TUBING - nylon (10 ft. lengths) Not Shown

1шт.

F86368

UNION - (repair for broken line) Not Shown

1шт.

B17092

NO LONGER SERVICED

GREASE - Rykon R-2, multi-luber (5lb.)

1шт.

B17118

SET OF DECALS - (Not Illustrated)

1шт.

321-7

DECAL

CASE "EAGLE" #14 DECALS

1шт.

321-11

TRADE MARK DECALS

1шт.

321-20

DECAL

CORN HARVESTER PATENTS DECALS

1шт.

321-46

"PATENT APPLIED FOR" DECALS

1шт.

321-265

X

NAME and ADDRESS DECALS

1шт.

321-601

DECAL

"BE CAREFUL" DECALS

1шт.
