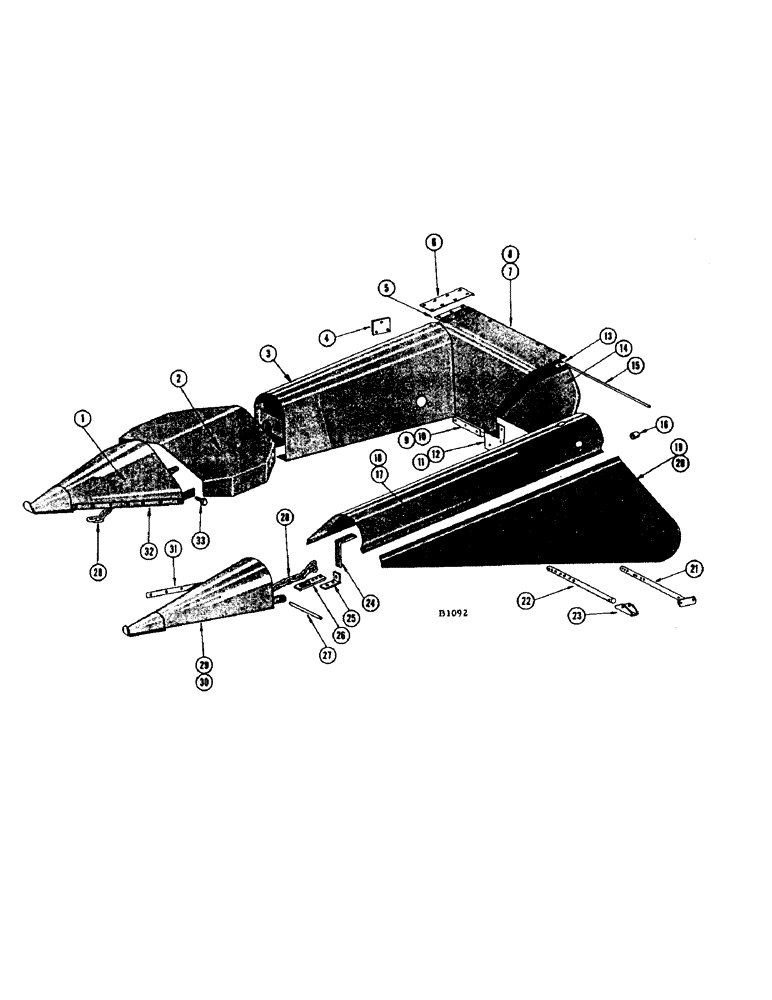

Запчасти Case IH F345 (60) - STALKWAY AND FLOATING POINTS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F79566
POINT - center divider
1шт.
BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)
1шт.
WASHER - 3/8" fl. (95-6) l. w. (92-6)
1шт.
2
F78688
COVER - center front
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410)
16шт.
SCREW - 1/4" x 7/16" N.C. hex. self tap (187-1013)
6шт.
LOCKWASHER - 1/4" E.T. (193-8)
20шт.
NUT - 1/4" N.C. hex. (25-104)
12шт.
3
F83136
COVER - center
1шт.
4
F12312
PLATE - filler, center cover
2шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (12-512) nut (25-105)
6шт.
5
F7346
REINFORCEMENT - back sheet
1шт.
6
F7345
REINFORCEMENT - back sheet, top
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104)
4шт.
WASHER - 1/4" flat (95-4)
2шт.
7
F7343
SHEET - back, R.H. stalkway
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104)
5шт.
BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)
2шт.
8
F7344
SHEET - back, L.H. stalkway
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104)
9шт.
WASHER - 1/4" fl. (95-4) l. w. (92-4)
9шт.
BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)
2шт.
9
F7202
PLATE - intake, auger top R.H.
1шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)
2шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410)
4шт.
NUT - 1/4" speed (131-117)
4шт.
10
F7203
PLATE - intake auger top L.H. Commodities same as R.H. plate (See F7202)
1шт.
11
F7341
SHIELD - picking roll R.H.
1шт.
BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)
4шт.
12
F18011
SHIELD - picking roll L.H.
1шт.
BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)
4шт.
13
F7490
HINGE - outer, for F7343 anf F7344 back sheets
2шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104)
5шт.
WASHER - 1/4" fl. (95-4) l. w. (92-4)
5шт.
14
F82147
SHIELD - trash
1шт.
15
F7492
ROD - hinge
1шт.
16
O101CW
SPACER - back sheet
4шт.
17
F76560
SHEET - side, R.H. stalkway
1шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104)
19шт.
WASHER - 1/4" fl. (95-4) l. w. (92-4)
19шт.
SCREW - 5/16" x 5/8" N.C. truss hd. (77-510) nut (25-104)
2шт.
WASHER - 5/16" fl. (95-5) l. w. (92-5)
2шт.
18
F86384
SHEET - side, L.H. stalkway Commodities same as R.H. side sheet (See F76560)
1шт.
19
F79986
SHIELD - wheel R.H.
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (175-402) nut (129-101)
9шт.
20
F79988
SHIELD - wheel L.H.
1шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (175-402) nut (129-101)
9шт.
21
F79955
BRACE - wheel sheild front (Models 600-660-700-900-960)
2шт.
SCREW - 5/16" x 5/8" N.C. truss hd. (175-416) nut (129-102)
4шт.
LOCKWASHER - 5/16" (192-20)
4шт.
PIN - cotter 1/4" x 1-1/2" (132-150)
4шт.
F86390
BRACE - wheel shield front (Models 800-1000-1010-1060)
2шт.
22
F11747
BRACE - wheel shield
2шт.
PIN - cotter 1/4" x 1-1/2" (132-150)
4шт.
23
F11748
BRACKET - end, wheel shield front brace
2шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (175-402) nut (129-101)
4шт.
LOCKWASHER - 1/4" (192-19)
4шт.
PIN - cotter 1/4" x 1-1/2" (132-150)
2шт.
24
F7398
SUPPORT - outer point
2шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104)
4шт.
LOCKWASHER - 1/4" (92-4)
4шт.
BOLT - 3/8" x " N.F. hex. (14-616) nut (25-116)
2шт.
WASHER - 3/8" fl. (95-6) l. w. (92-6)
2шт.
25
F10492
CLIP - mounting, for key slots
2шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
2шт.
26
F10493
HOOK - key slot, for floating point chaings
2шт.
BOLT - 5/16" x 3/4" N.C. hex. (13-512) nut (25-105)
2шт.
27
F7420
PIN - outer point pivot
2шт.
PIN - cotter 3/32" x 3/4" (132-26)
4шт.
WASHER - 3/8" fl. (95-6)
8шт.
28
O5130N
CHAIN - for floating points
3шт.
29
F76574
POINT - floating R.H.
1шт.
30
F76570
POINT - floating L.H.
1шт.
BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)
2шт.
WASHER - 3/8" fl. (95-6) l. w. (92-6)
2шт.
31
F7415
STRIP - wear, for floating points
2шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
12шт.
LOCKWASHER - 1/4" (92-4)
12шт.
32
F7404
STRIP - wear, for center point
2шт.
33
O4325CH
BOLT - shoulder
2шт.
NUT - 3/8" N.F. hex. (25-116) l. w. (92-6)
2шт.
Выбрано товаров: 82
