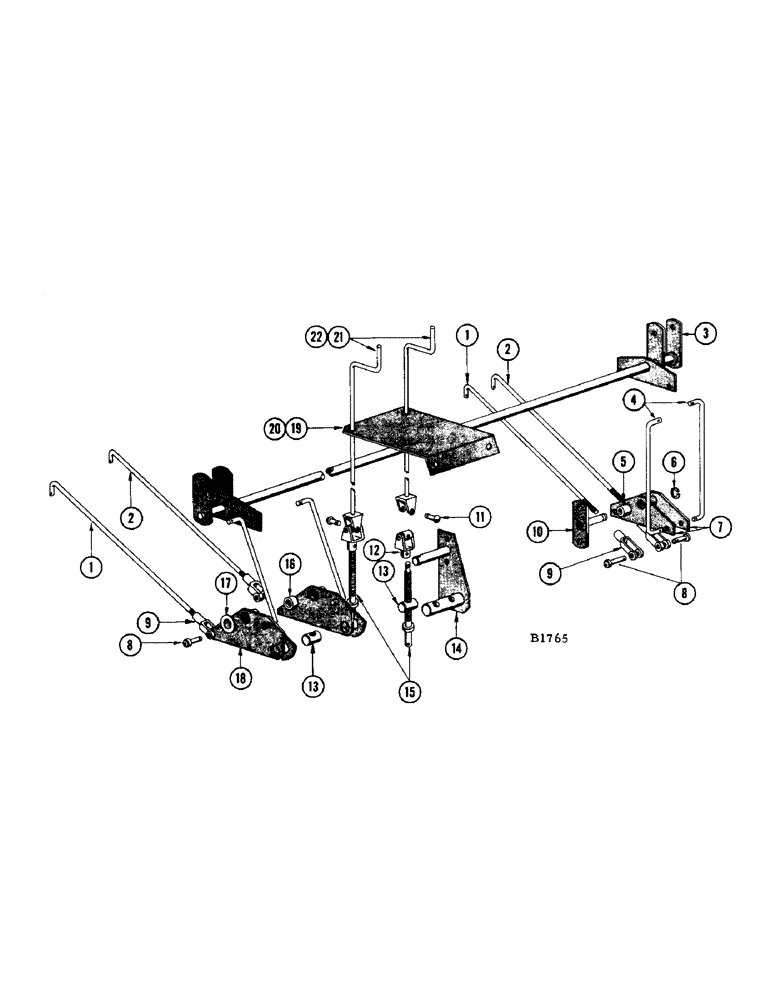

Запчасти Case IH F345 (58) - PICKING ROLL & SNAPPING BAR HAND CONTROL (58) - ATTACHMENTS/HEADERS

1

F10946

ROD - adjusting, snapping bar

2шт.

NUT - 1/2" N.F. hex. jam (25-158)

1шт.

WASHER - 17/32" plain (195-33)

6шт.

WASHER - 1/2" fl. (95-8)

2шт.

2

F10945

ROD - adjusting, picking roll

2шт.

NUT - 1/2" N.F. hex. jam (25-158)

2шт.

WASHER - 17/32" plain (195-33)

6шт.

WASHER - fl. (95-8)

2шт.

3

F79313

PIPE - cross, bar and roll control

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) nut (25-118)

2шт.

4

F10937

ROD - vertical link

4шт.

PIN - cotter 1/8" x 7/8" (132-47)

8шт.

5

C3688S

SPACER - for F79526 pin

1шт.

6

F11413

RING - retaining, for F79527 link

1шт.

7

F79527

LINK - toggle, bar and roll control

2шт.

8

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

4шт.

PIN - cotter 1/8" x 7/8" (132-47)

4шт.

9

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS

4шт.

10

F79526

PIN - pivot, for toggle link

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

11

O1803BF

PIN - hand crank

2шт.

PIN - cotter 3/32" x 5/8" (132-25)

2шт.

12

F79307

UNIVERSAL - crank, bar and roll control

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) Loc nut (131-526)

2шт.

13

F10931

PIVOT - adjusting screw

2шт.

14

F79304

PLATE - mounting

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

3шт.

15

F79306

SCREW - adjusting, bar and roll control

2шт.

PIN - cotter 5/32" x 1" (132-69)

2шт.

WASHER - 21/32" plain (195-41)

2шт.

16

W6915S

SPACER - between adjusting screw pivots

1шт.

17

O579B

WASHER - for F79304 plate

1шт.

18

F79305

PLATE - crank, bar and roll control

2шт.

19

F12318

PLATE - hand crank (See F10938 Ref. 20)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

20

F10938

PLATE - hand crank (Models 800 - 1000)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

21

F79331

CRANK - hand (Models 600 - 660 - 700 - 900 - 960)

2шт.

22

F79310

CRANK - hand (Models 800 - 1000 - 1010 - 1060)

2шт.
