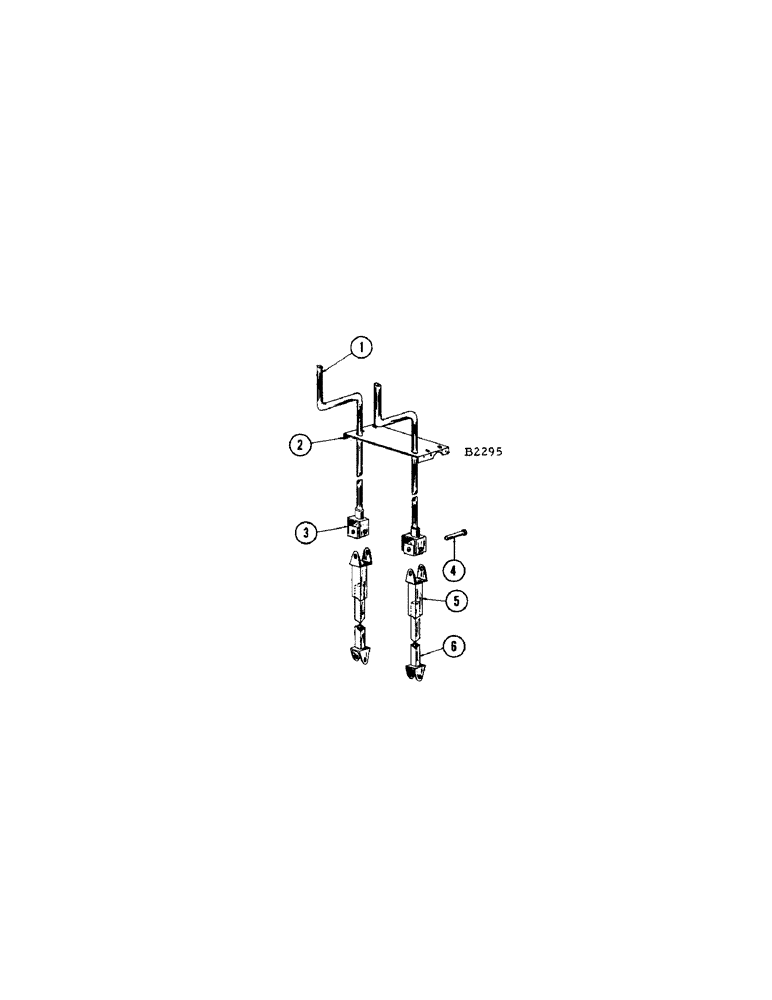

Запчасти Case IH F345 (58[1]) - PICKING ROLL AND SNAPPING BAR ADJUSTING CRANK ATTACHMENT FOR CAB INSTALLATION (58) - ATTACHMENTS/HEADERS

1

F21852

CRANK - hand

2шт.

PIN - 1/8" x 1" cotter (132-310) washer (195-533)

2шт.

2

F21853

BRACKET - crank (Model 600 - 900)

1шт.

F21962

BRACKET - crank (models 660 - 960)

1шт.

F13157

SCREW

BRACKET - crank (Model 1010)

1шт.

F13222

BRACKET - crank (Model 1060)

1шт.

A22439

"U" BOLT - (Models 600 - 660 - 900 - 960) Not Shown

2шт.

NUT - 5/16" (129-20)

4шт.

3

F79307

UNIVERSAL

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) locknut (131-63)

2шт.

4

O1803BF

PIN - for Ref. 3

2шт.

PIN - 3/32" x 5/8" cotter (132-25)

2шт.

5

F84530

TUBE and CLEVIS - (Models 600 - 660 - 900 - 960)

2шт.

F87073

TUBE and CLEVIS - (Models 1010 - 1060)

2шт.

6

F84529

TUBE and CLEVIS - (Models 600 - 660 - 900 - 960)

2шт.

F87074

TUBE and CLEVIS - (Models 1010 - 1060)

2шт.
