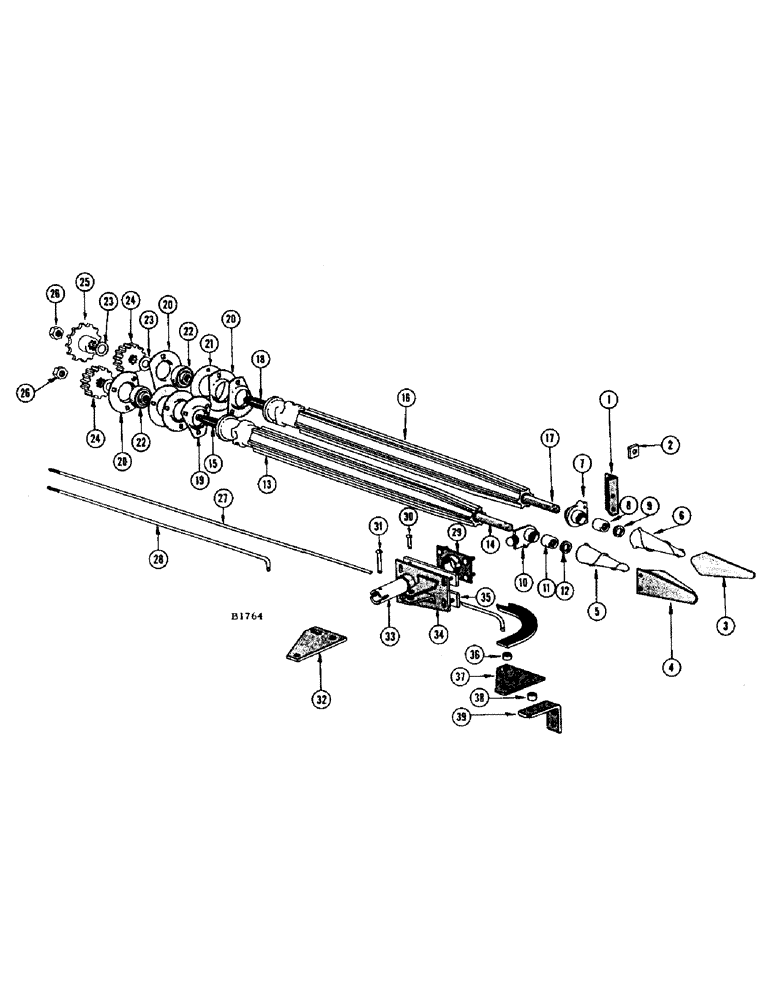

Запчасти Case IH F345 (54) - R. H. PICKING ROLLS AND ADJUSTMENT (58) - ATTACHMENTS/HEADERS

1

F7156

ANGLE - inner picking roll support R.H.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (12-612) nut (25-106)

1шт.

2

F7158

SPACER - (1-1/4" sq.) R.H. inner picking roll support

1шт.

3

F79204

COVER - inner R.H., picking roll point

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

4

F79545

COVER - outer R.H., picking roll point

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

5

F1165

POINT - (L.H. Spiral) R.H. Outer and L.H. Inner

1шт.

RIVET - 1/4" 2-1/2" rd. hd. (45-440)

2шт.

6

F1167

POINT - (R.H. Spiral) R.H. Inner and L.H Outer

1шт.

RIVET - 1/4" x 2-1/2" rd. hd. (45-440)

2шт.

7

2826CHA

HOUSING - for inner picking roll, front

1шт.

8

F51079

NEEDLE BEARING

BEARING - (Torrington #JH-1616-OH)

1шт.

9

O6629CH

OIL SEAL - picking roll bearing

2шт.

10

F76515

HOUSING - front outer picking roll bearing

1шт.

11

F51079

NEEDLE BEARING

BEARING - (Torrington #JH-1616-OH)

1шт.

12

O6629CH

OIL SEAL - picking roll bearing

1шт.

13

F78968

PICKING ROLL - R.H. Outer and L.H. Inner

1шт.

14

F7298

SHAFT - picking roll point

1шт.

15

F10720

SHAFT- drive

1шт.

45-448

RIVET - 1/4" x 3" rd. hd. (front shaft)

2шт.

45-644

RIVET - 3/8" x 2-3/4" rd. hd. (drive shaft)

2шт.

16

F78966

PICKING ROLL - R.H. Inner and L.H. Outer

1шт.

17

F7298

SHAFT - picking roll point

1шт.

18

F10721

SHAFT - drive

1шт.

45-448

RIVET - 1/4" x 3" rd. hd. (front shaft)

2шт.

45-644

RIVET - 3/8" x 2-3/4" rd. hd. (drive shaft)

2шт.

19

F51084

PLATE - bearing shield

2шт.

20

O4210CS

FLANGE - for F51085 bearing

4шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

6шт.

21

F51086

SHIM - bearing plate

2шт.

22

F51085

BEARING

- picking roll shaft (Fafnir 1103KRRB-3)

2шт.

23

F60899

WASHER

- spacer

1шт.

24

F3727

GEAR - (12T) picking roll drive

2шт.

25

F76533

SPROCKET - (15T) picking roll drive

1шт.

26

131-49

X

NUT - 1" stop

2шт.

27

F10946

ROD - adjusting, snapping bar

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

28

F10945

ROD - adjusting, picking roll

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

29

F76501

BRACKET - support, picking roll adjustment

1шт.

NUT - 3/8" N.F. hex. (25-116) l. w. (92-6) fl. wshr. (95-6)

8шт.

30

O7HS

PIN - pivot, front end of bellcrank

1шт.

PIN - cotter 5/32" x 1" (132-69)

1шт.

31

O2809CS

PIN - pivot, (F7303 tube and bellcrank)

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

32

F10425

BELLCRANK - picking roll adjustment

1шт.

33

F7303

TUBE - outer picking roll adjustment

1шт.

34

F82133

BRACKET - outer R.H., picking roll adjustment

1шт.

NUT - 3.8" N.F. hex. (25-116) l. w. (92-6) fl. wshr. (95-6)

4шт.

35

F76503

STRIP - bolting, for F82133 bracket

2шт.

36

F10766

SPACER - snapping bar bellcrank

1шт.

37

F10423

BELLCRANK - snapping bar

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

WASHER - 3/8" fl. (95-6) l. w. (92-6)

1шт.

38

F10140

SPACER - snapping bar bellcrank pivot

1шт.

BOLT - 3/8" 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

WASHER - 3/8" fl. (95-6) l. w. (92-6)

1шт.

39

F10421

SUPPORT - snapping bar bellcrank

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.
