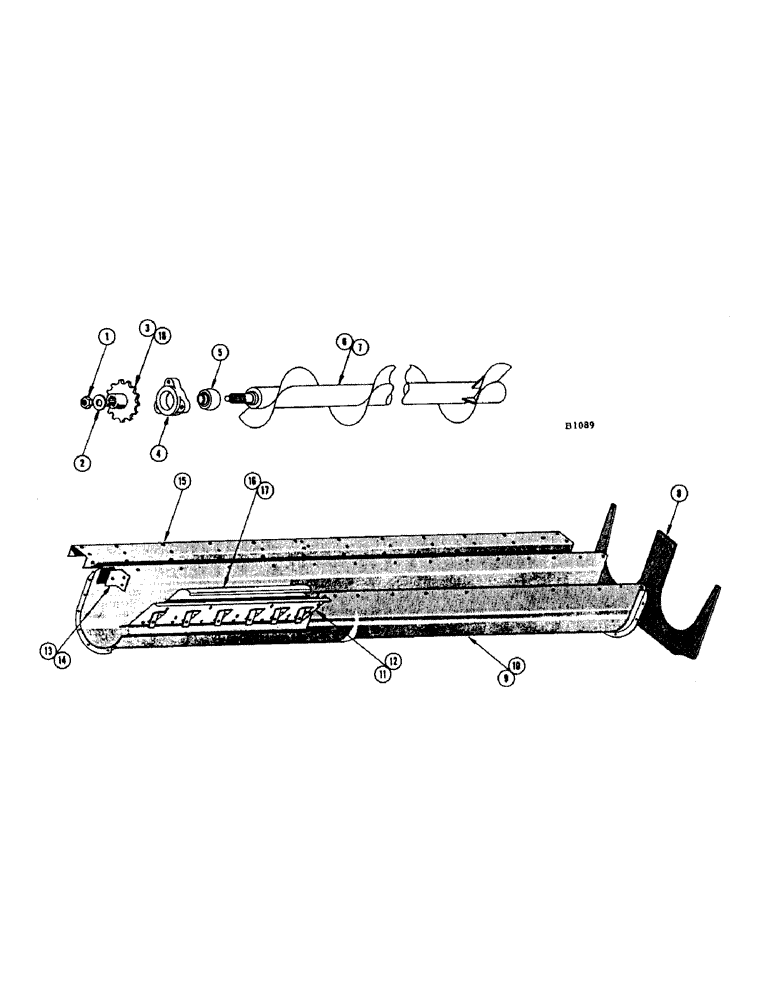

Запчасти Case IH F345 (52) - FEEDER AUGER TROUGH,M EXTRA SLOW GROUND SPEED ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

131-13

LOCK NUT,5/8"-18, GB

NUT - 5/8" N.F. Elastic Stop, auger shaft

2шт.

2

O5871BD

WASHER - auger shaft

2шт.

3

F76472

SPROCKET - (27T) feeder auger drive, driven

2шт.

4

F1332

HOLDER - for 2419CHA bearing

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

6шт.

5

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - (Fafnir #RA103PPB-2) auger drive shaft (collar not used in this application)

2шт.

6

F82109

AUGER - feeder, R.H.

1шт.

F82109

AUGER - feeder (L.H. on machines, Serial Range: #8251001-#8266001)

1шт.

7

F82110

AUGER - feeder, L.H.

1шт.

F82110

AUGER - feeder (R.H. on machines, Serial Range: #8251001-#8266001)

1шт.

8

F17969

END PLATE - auger top

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

14шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) and l. w. (92-6) fl. wshr. (95-6)

2шт.

9

F82106

TUBE - auger trough, R.H.

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) l. w. (92-6)

13шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

5шт.

10

F82107

TUBE - auger trough, L.H.

1шт.

BOLT - 3/8" x 5/8" N.F. hex (14-610) l. w. (92-6)

13шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

11

F78677

SHIELD - auger intake, R.H. (Before #8251001) See F86641

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (12-510) nut (25-105)

7шт.

WASHER - 5/16" flat (95-5) l. w. (92-5)

7шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

6шт.

F86641

SHIELD - auger intake, R.H. (#8251001 and after) See F78677

1шт.

12

F78678

SHIELD - auger intake, L.H. (Before #8251001) See F86642 Commodities same as R.H. shield (See F78677)

1шт.

F86642

SHIELD - auger intake, L.H. (#8251001 and after) See F78678

1шт.

13

F17971

SUPPORT - end cover R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) l. w. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

14

F17972

SUPPORT - end cover L.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) l. w. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

15

F83135

CHANNEL - center

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

16

F7205

PLATE - snapping, R.H. inner

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (12-612) nut (25-106)

7шт.

WASHER - 3/8" fl. (95-6)

6шт.

17

F7206

PLATE - snapping, L.H. inner

1шт.

BOLT - snapping, L.H. inner

1шт.

WASHER - 3/8" fl. (95-6)

6шт.

F11795

SPROCKET - (38T) gear box drive (See F11760) EXTRA SLOW GROUND SPEED ATTACHMENT

1шт.

18

F79233

SPROCKET - (20T) auger drive (See F76472) EXTRA SLOW GROUND SPEED ATTACHMENT

2шт.
