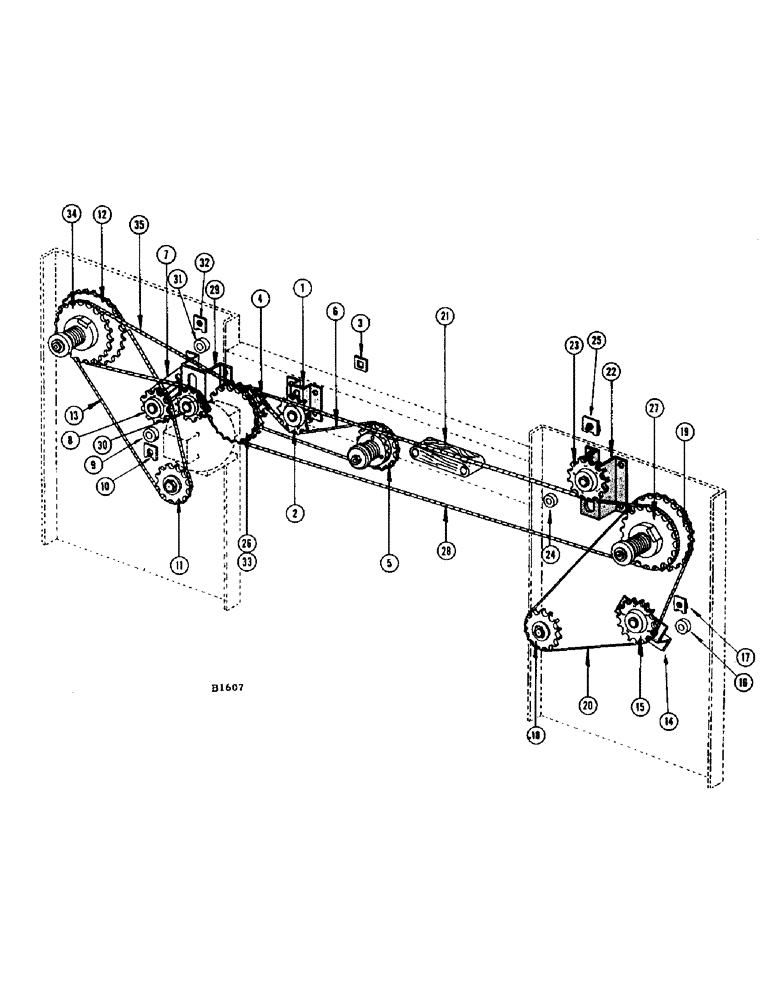

Запчасти Case IH F345 (50) - DRV CHAIN TGHTNRS, MAIN DRV SHFT TGHTNR, LH & RH PCKNG ROL DRV TGHTNR, RH & LH JACKSHAFT DRV TGHTNR (58) - ATTACHMENTS/HEADERS

1

F7228

BRACKET - idler, front

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

4шт.

2

F78573

SPROCKET ASSY.

SPROCKET - (17T) tightener, main drive shaft drive chain

1шт.

BOLT - 1/2" x 2-1/4" rhd. sq. nk. (11-836) nut (25-108)

1шт.

WASHER - 1/2" plain (195-33)

3шт.

3

F7152

WASHER - (1" sq. x 17/32" I.D. sq.) tightener sprocket bolt

1шт.

4

F76486

SPROCKET - (14T) drives main drive shaft (on gear box shaft)

1шт.

5

F76488

SPROCKET - (23T) drives main drive shaft

1шт.

6

F18024

BAR

CHAIN - main drive shaft (NSS - see page 5)

1шт.

7

F18009

BRACKET - tightener, picking roll drive L. H.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118) L. H. PICKING ROLL DRIVE TIGHTENER

2шт.

8

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener, R.H. jackshaft drive L. H. PICKING ROLL

1шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) L. H. PICKING ROLL DRIVE TIGHTENER

1шт.

9

F18010

WASHER - spacer, for F10427 sprocket L. H. PICKING ROLL DRIVE TIGHTENER

1шт.

10

F75313

LOCKNUT - for 5/8" tightener sprocket bolt L. H. PICKING ROLL DRIVE

1шт.

11

F76533

SPROCKET - (15T) picking roll drive (on picking roll shaft) L. H. TIGHTENER

1шт.

12

F76544

SPROCKET - (28T) (on jackshaft) Before #8266001 L. H. PICKING ROLL DRIVE TIGHTENER

1шт.

F78961

SPROCKET - (35T) (on jackshaft) #8266001 and after L. H. PICKING ROLL DRIVE TIGHTENER

1шт.

13

O2106N

X

CHAIN - L.H. (NSS - See Page 5) Before #8266001 PICKING ROLL DRIVE TIGHTENER

1шт.

O1676CS

X

CHAIN - L.H. (NSS - See Page 5) #8266001 and after PICKING ROLL DRIVE TIGHTENER

1шт.

14

F18009

BRACKET - tightener, picking roll drive R. H.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118) R. H. PICKING ROLL DRIVE TIGHTENER

2шт.

15

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener, L.H. jackshaft drive R. H. PICKING ROLL

1шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

16

F18010

WASHER - spacer for F10427 sprocket R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

17

F75313

LOCKNUT - for 5/8" tightener sprocket bolt R. H. PICKING ROLL DRIVE

1шт.

18

F76533

SPROCKET - (15T) picking roll drive (on picking roll drive shaft) R. H. TIGHTENER

1шт.

19

F76544

SPROCKET - (28T) (on jackshaft) Before #8266001 R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

F78961

SPROCKET - (35T) (on jackshaft) #8266001 and after R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

20

F10435

X

CHAIN - R.H. (NSS - See Page 5) Before #8266001 R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

F22242

X

CHAIN - R.H. (NSS - See Page 5) #8266001 and after R. H. PICKING ROLL DRIVE TIGHTENER

1шт.

21

F4717

GUIDE - for R.H. jackshaft drive chain R. H. JACKSHAFT DRIVE TIGHTENER

1шт.

BOLT - 5/16" x 4" rhd. sq. nk. (11-564) nut (25-105) R. H. JACKSHAFT DRIVE TIGHTENER

2шт.

WASHER - 5/16" flat (95-5) R. H. JACKSHAFT DRIVE TIGHTENER

2шт.

22

F7336

BRACKET - tightener, R.H. jackshaft drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6) R. H. JACKSHAFT DRIVE TIGHTENER

3шт.

23

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener, picking roll drive R. H. JACKSHAFT

1шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) R. H. JACKSHAFT DRIVE TIGHTENER

1шт.

24

F18010

WASHER - spacer, for F10427 sprocket R. H. JACKSHAFT DRIVE TIGHTENER

1шт.

25

F75313

LOCKNUT - for 5/8" tightener sprocket bolt R. H. JACKSHAFT DRIVE TIGHTENER

1шт.

26

F76485

SPROCKET - (25T - double) drives R.H. and L.H. jackshaft TIGHTENER

1шт.

27

F79937

SPROCKET - (25T) jackshaft drive R. H. TIGHTENER

1шт.

28

F18023

CHAIN - R.H. jackshaft drive (NSS - See Page 5) TIGHTENER

1шт.

29

F7337

BRACKET - tightener, L.H. jackshaft drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6) L. H. JACKSHAFT DRIVE TIGHTENER

4шт.

30

F10427

SPROCKET ASSY.

SPROCKET - (15T) tightener, picking roll drive L. H. JACKSHAFT

1шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) L. H. JACKSHAFT DRIVE TIGHTENER

1шт.

31

F18010

WASHER - spacer, for F10427 sprocket L. H. JACKSHAFT DRIVE TIGHTENER

1шт.

32

F75313

LOCKNUT - for 5/8" tightener sprocket bolt L. H. JACKSHAFT DRIVE

1шт.

33

F76485

SPROCKET - (25T - double) L.H. and R.H. jackshaft drive L. H. JACKSHAFT DRIVE

1шт.

34

F79937

SPROCKET - (25T) jump clutch drive L. H. JACKSHAFT TIGHTENER

1шт.

35

F18022

CHAIN - L.H. jackshaft drive (NSS - see page 5) TIGHTENER

1шт.
