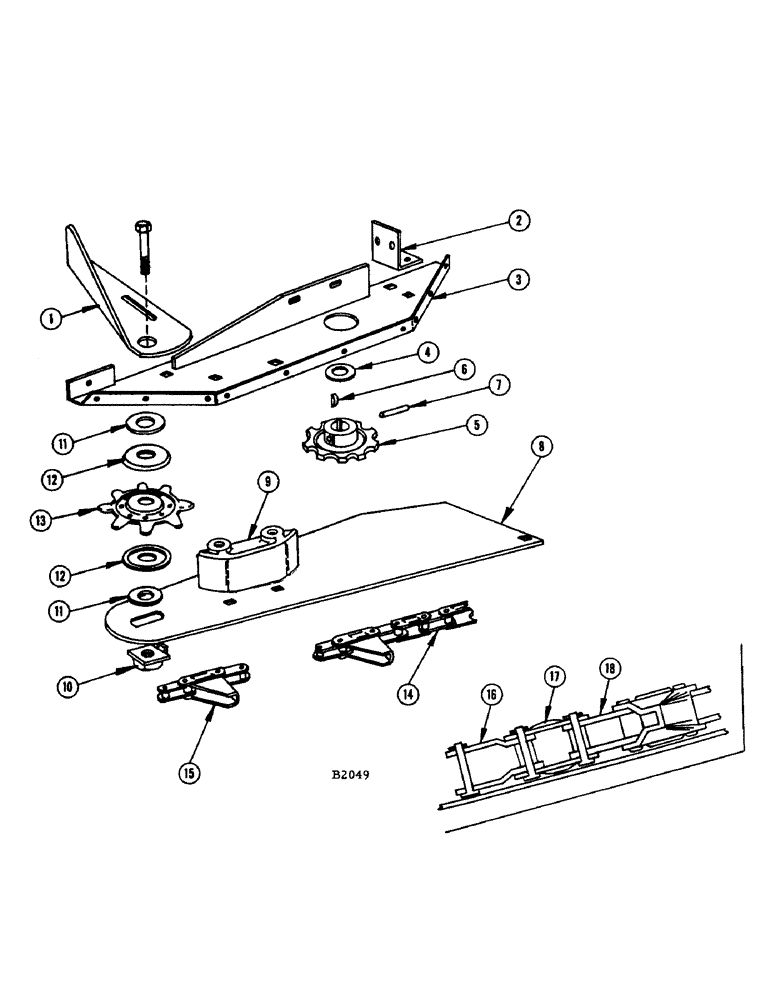

Запчасти Case IH F345 (48) - INNER GATHERING CHAINS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F11717
ARM - adjusting, L.H. inner gathering chain idler
1шт.
BOLT - 7/16" x 1" rhd. sq. nk. (11-716) nut (25-107)
1шт.
WASHER - 7/16" plain (195-29)
1шт.
F11718
FITTING
ARM - adjusting, R.H. inner gathering chain idler
1шт.
BOLT - 7/16" x 1" rhd. sq. nk. (11-716) nut (25-107)
1шт.
WASHER - 7/16" plain (195-29)
1шт.
2
F7144
BRACKET - rear attaching
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6)
2шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
4шт.
3
F76481
SUPPORT - inner gathering chain drive, L.H.
1шт.
F76479
SUPPORT - inner gathering chian drive, R.H.
1шт.
4
O46FG
WASHER - spacer
2шт.
5
F1305
SPROCKET ASSY.
SPROCKET - (8T) inner gathering chain drive (on F17979 gear box shaft)
2шт.
6
126-21
WOODRUFF KEY,#A, 1/4" x 7/8"
2шт.
7
135-344
PIN, GROOVED
PIN - groove, 3/16" x 1-3/4" type #3
2шт.
8
F7209
WEAR PLATE - inner gathering chain
2шт.
BOLT - 3/8" x 2-1/2" N.F. hex. (14-640) nut (25-116)
2шт.
9
F1492
BLOCK - wear, inner gathering chain drive
2шт.
10
F75313
LOCKNUT - for 5/8" tightener sprocket bolt
2шт.
11
F18010
WASHER - tightener sprocket
4шт.
12
F53095
WASHER - cup, for tightener sprocket F12313
4шт.
13
F12313
SPROCKET ASSY.
SPROCKET - (8T) inner gathering chain tightener
2шт.
BOLT - 5/8" x 3" N.f. hex. (14-1048) fl. wshr. (95-10)
2шт.
14
F78786
CHAIN - inner gathering (See Note) 21 links (consists of (14) F10818 roller links, (1) F10673 offset link, (1) F10674 conn. link and (5) lug links) for CA550 roller chain (See F78791)
2шт.
15
F78791
LINK - lug (consists of lug link and 2 riveted links for #CA550 roller chain)
1шт.
16
F10673
LINK
- offset, #CA550 roller chain
1шт.
F92261
PINS and COTTERS - (Pkg. of 5 each) for F10673
1шт.
17
F10674
LINK
- connecting, #CA550 roller chain
1шт.
18
F10818
LINK
- roller, #CA550 roller chain
1шт.
F79124
COTTERS - hardened (pkg. of 25) for #CA550 roller chain
1шт.
Выбрано товаров: 30
