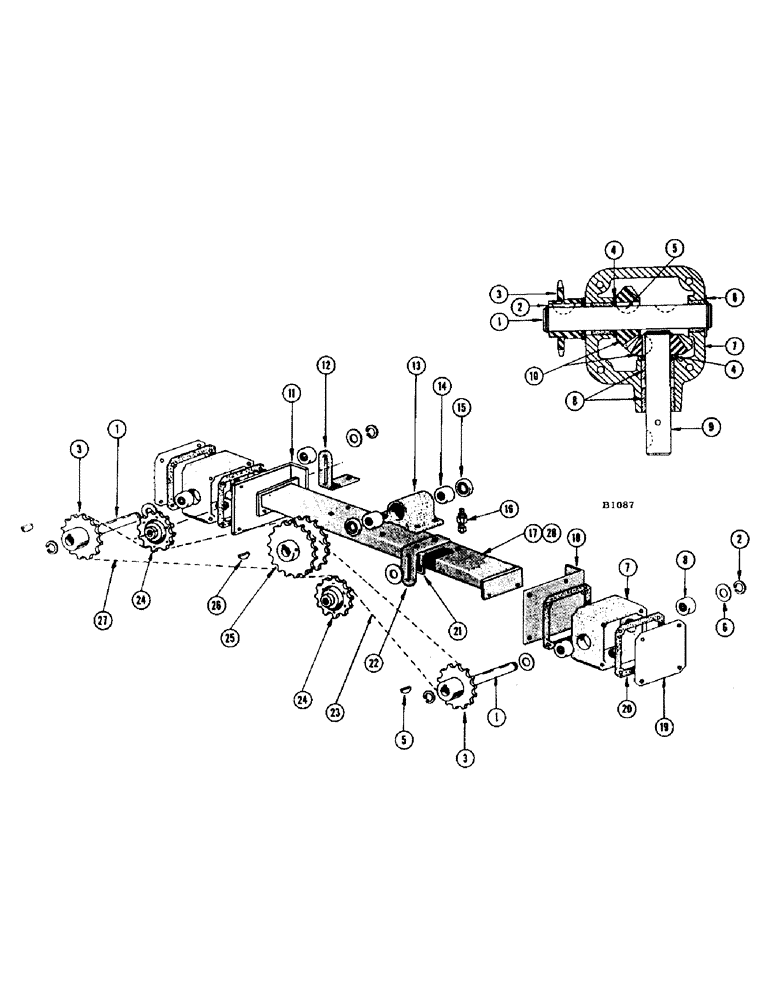

Запчасти Case IH F345 (46) - INNER GATHERING CHAIN, GEARBOX DRIVE AND TIGHTENERS (58) - ATTACHMENTS/HEADERS

1

F17980

SHAFT - gear box drive, horizontal

2шт.

2

O5872AB

X

SNAP RING - gear box shafts (2 for F17980 and 1 for F17979)

6шт.

3

F76464

SPROCKET - (14T) gathering chain gear box drive, driven

2шт.

4

F53086

BEARING - (Oilite #TT1603) thrust

4шт.

5

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

6шт.

6

NLS

NO LONGER SERVICED

- thrust, gear box

1шт.

7

F81407

GEAR BOX - inner gathering chain

2шт.

8

F19015

BUSHING

- Oilite, 4 for each F2032 gear box

8шт.

9

F17979

SCREW

SHAFT - gear box, vertical, gathering chain drive

2шт.

10

F53084

GEAR - (13T) bevel, gear box

4шт.

11

F7139

SUPPORT - for R.H. gear box, inner

1шт.

BOLT - 5/16" x 3-3/4" N.F. hex. (14-560) nut (25-115)

4шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

3шт.

12

F11723

BRACKET - tightener, R.H. gathering chain gear box drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) and l. w. (92-6) pl. wshr. (195-25)

2шт.

13

F76492

HOUSING - bearing, main drive shaft

1шт.

BOLT - 5/16" x 7/8" N.C. plow (18-514) nut (25-106)

4шт.

14

F7232

BEARING

- (Torrington #BH1812)

2шт.

15

F7233

SEAL - oil

2шт.

16

F86399

FITTING

CONNECTOR - male 1/8" tube x 1/8" NPT

1шт.

17

F79933

SUPPORT

- front drive See F86644

1шт.

18

F7141

SUPPORT - for L.H. gear box, inner

1шт.

BOLT - 5/16" x 3-3/4" N.F. hex. (14-560) nut (25-115)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

3шт.

19

F7138

COVER - gear box, outer

2шт.

BOLT - 5/16" x 3-3/4" N.F. hex. (14-560) nut (25-115)

8шт.

20

F51110

GASKET

- gear box cover

4шт.

21

F7152

WASHER - (1" sq. x 17/32" I.D. sq.) tightener sprocket

2шт.

22

F11721

BRACKET - tightener, L.H. gear box drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) and l. w. (92-6) pl. wshr. (195-25)

2шт.

23

O895CB

X

CHAIN - L.H. gathering chain gear box drive (NSS - See Page 5)

1шт.

24

F78573

SPROCKET ASSY.

SPROCKET - (17T) auger drive idler and tightener

2шт.

BOLT - 1/2" x 2-1/4" rhd. sq. nk. (11-852) nut (25-108)

2шт.

WASHER - 1/2" flat (95-8)

4шт.

25

F76493

SPROCKET - (23T - double) drives gathering chain gear boxes

1шт.

26

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

27

F18024

BAR

CHAIN - R.H. gathering chain gear box drive (NSS - seep page 5)

1шт.

28

F86644

SUPPORT

- front drive (#8251001 to #8266001) See F79933

1шт.
