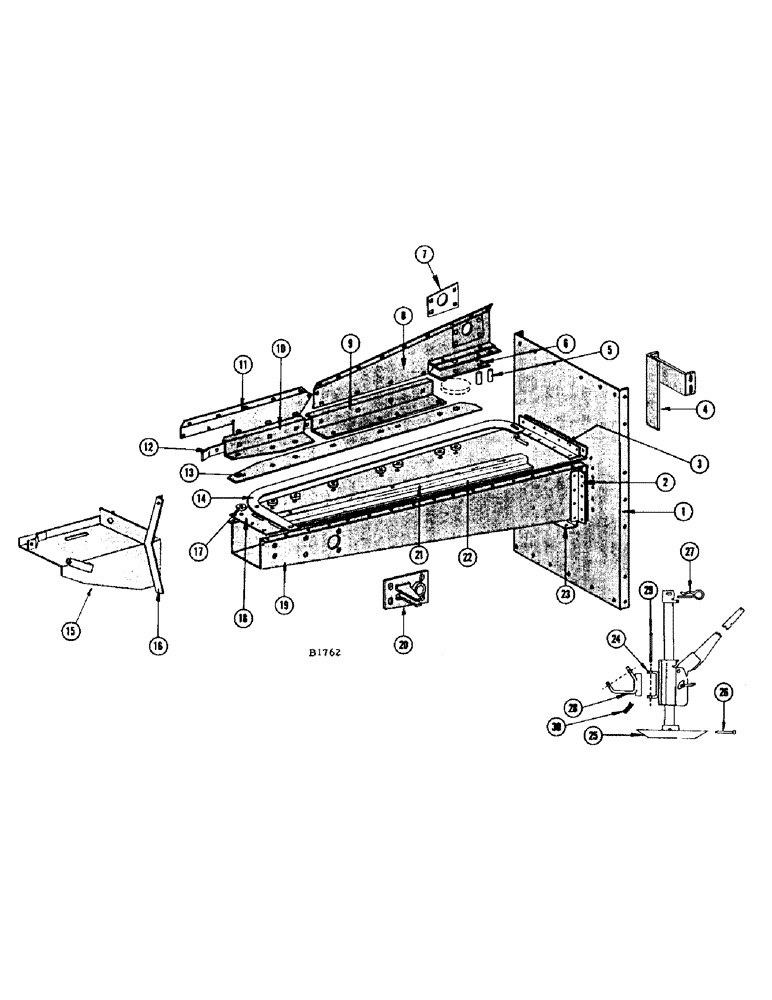

Запчасти Case IH F345 (38) - L. H. OUTER GATHERING CHAIN FRAME (58) - ATTACHMENTS/HEADERS

1

F82123

PLATE - support, L.H.

1шт.

F7245

ANGLE - reinforcement, inner

1шт.

2

F7246

ANGLE - reinforcement, outer

1шт.

3

F7314

ANGLE - reinforcement, upper for L.H. frame

1шт.

4

F82137

BRACE - wheel shield support, L.H.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

2шт.

5

PT1136S

SPACER - gathering chain shield

2шт.

6

F10420

SHIELD - gathering chain

1шт.

7

F12314

PLATE - filler, side sheet, lower rear

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (12-512) nut (25-105)

4шт.

WASHER - 5/16" flat (95-5) l. w. (92-5)

4шт.

8

F83137

SHEET - side, L.H. stalkway, lower rear

1шт.

BOLT - 3/8" x 3-1/4" N.F. hex. (14-652) nut (25-116)

2шт.

WASHER - 3/8" flat (95-6) l. w. (92-6)

1шт.

9

F10413

RUN - outer gathering chain guide, rear L.H.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.

10

F10414

RUN - outer gathering chain guide, front L.H.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

3шт.

11

F10415

SHEET - side, L.H. stalkway, lower front

1шт.

SCREW - 5/16" x 5/8" N.C. truss hd. (77-510)

3шт.

NUT - 5/16" N.C. hex. (25-105) l. w. (92-5) fl. wshr. (95-5)

3шт.

SCREW - 1/4" x 1/2" N.C. truss hd. (77-48)

1шт.

NUT - 1/4" N.C. hex. (25-104) l. w. (92-4) fl. wshr. (95-4)

1шт.

12

F10419

WEAR STRIP - outer gathering chain

1шт.

BOLT - 5/16" x 7/8" N.C. plow (18-514) nut (25-105) and l. w. (92-5) fl. wshr. (95-5)

7шт.

13

F10412

WEAR STRIP - outer gathering chain skid

1шт.

14

F17998

BAR - snapping

1шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820) nut (25-108)

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) l. w. (92-8)

1шт.

NUT - 1/2" N.F. jam (25-158) fl. wshr. (95-8)

2шт.

15

F86650

SUPPORT - point, L.H. (#8251001 and after) See F76524

1шт.

F76524

POINT - L.H. front gathering chain support (Before #8251001) See F86650

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

6шт.

16

F7396

BRACE - side sheet support, front L.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) and l. w. (92-6) fl. wshr. (95-6)

2шт.

17

F10411

SPACER - wear plate

7шт.

18

F17996

COVER - for F82122 L.H. frame

1шт.

19

F82122

FRAME - gathering chain, L.H.

1шт.

20

F82124

BRACKET - outer L.H. picking roll adjustment

1шт.

21

F4337

RUN - gathering chain skid, back

1шт.

BOLT - 3/8" x 2" N.F. hex. (14-632) Gripco nut (131-366)

3шт.

WASHER - 3/8" flat (95-6)

3шт.

22

F4336

RUN - gathering chain skid, bottom

1шт.

23

F7243

ANGLE - reinforcement for frame, lower

1шт.

24

F87156

JACK

1шт.

25

F65123

PIN

BASE - jack

1шт.

26

F13372

PIN - base

1шт.

PIN - cotter 1/8" x 1" (132-310)

1шт.

WASHER - 1/4" flat (195-518)

2шт.

27

F60838

SPLIT PIN

COTTER - hairpin

1шт.

28

F83141

BRACKET - jack

1шт.

29

F20009

NOZZLE

PIN - for jack

1шт.

30

TB10698

COTTER - hairpin, for jack

1шт.
