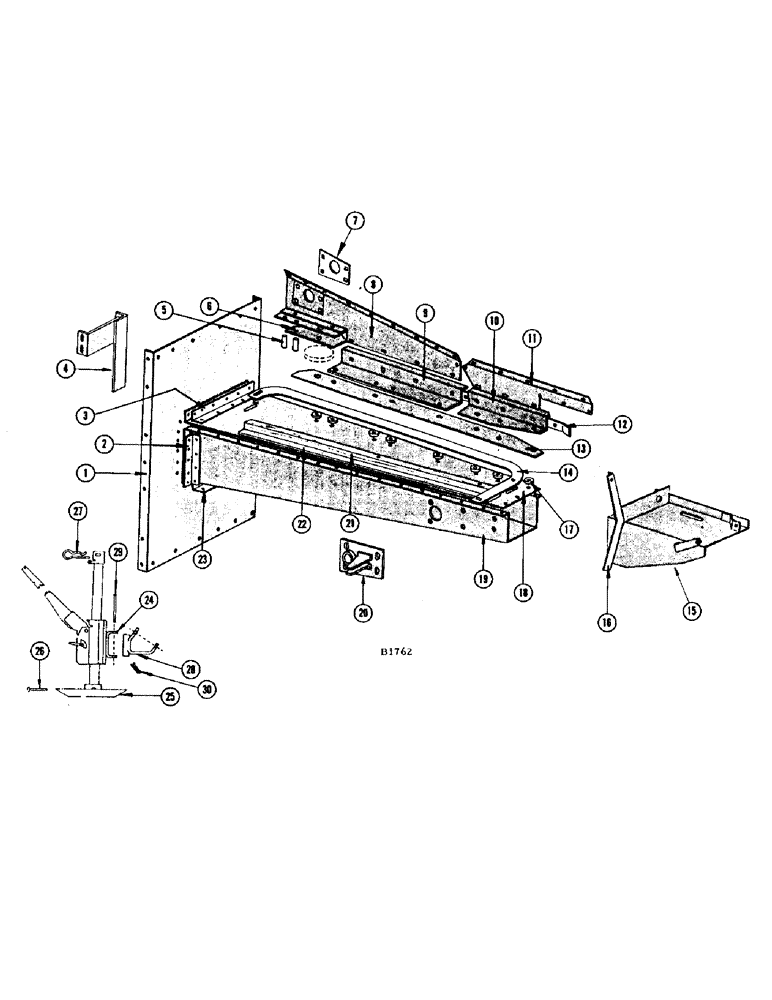

Запчасти Case IH F345 (36) - R. H. OUTER GATHERING CHAIN FRAME (58) - ATTACHMENTS/HEADERS

1

F82130

PLATE - support, R.H.

1шт.

F7245

ANGLE - reinforcement, inner (Not Shown)

1шт.

2

F7246

ANGLE - reinforcement, outer

1шт.

3

F7244

ANGLE- upper reinforcement for R.H. frame

1шт.

4

F82136

BRACE - wheel shield support, R.H.

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

2шт.

5

PT1136S

SPACER - gathering chain shield

2шт.

6

F10420

SHIELD - gathering chain

1шт.

7

F12314

PLATE - filler, side sheet lower rear

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (12-512) nut (25-105)

4шт.

WASHER - 5/16" flat (95-5) l. w. (92-5)

4шт.

8

F83138

SHEET - side, R.H. stalkway, lower rear

1шт.

BOLT - 3/8" x 3-1/4" N.F. hex. (14-652) nut (25-116)

2шт.

WASHER - 3/8" flat (95-6)

1шт.

9

F10431

RUN - outer gathering chain guide, rear R.H.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.

10

F10432

RUN - outer gathering chain guide, front R.H.

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

3шт.

11

F10433

SHEET - side, R.H. stalkway, lower front

1шт.

SCREW - 5/16" x 5/8" N.C. truss hd. (77-510) nut (25-105)

3шт.

LOCKWASHER - 5/16" (92-5) flat washer (95-5)

3шт.

SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104)

1шт.

LOCKWASHER - 1/4" (92-4) flat washer (95-4)

1шт.

12

F10419

WEAR STRIP - outer gathering chain

1шт.

BOLT - 5/16" x 7/8" N.C. plow (18-514) nut (25-105) and l. w. (92-5) pl. wshr. (95-5)

7шт.

13

F10412

WEAR STRIP - outer gathering chain skid

1шт.

14

F17998

BAR - snapping

1шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820) nut (25-108)

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820)

1шт.

NUT - 1/2" N.F. jam (25-158) flat washer (95-8)

2шт.

15

F86654

SUPPORT - point, R.H. (#8251001 and after) See F76500

1шт.

F76500

POINT - R.H. front gathering chain support (Before #8251001) See F86654

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

6шт.

16

F7395

BRACE - side sheet support, front R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) and l. w. (92-6) fl. wshr. (95-6)

2шт.

17

F10411

SPACER - wear plate

7шт.

18

F18014

COVER - for F82129 R.H. frame

1шт.

19

F82129

FRAME - gathering chain R.H.

1шт.

20

F82133

BRACKET - outer R.H. picking roll adjustment

1шт.

21

F4337

RUN - gathering chain skid, back

1шт.

BOLT - 3/8" x 2" N.F. hex. (14-632) Gripco nut (131-366)

3шт.

WASHER - 3/8" flat (95-6)

3шт.

22

F4336

RUN - gathering chain skid, bottom

1шт.

23

F7243

ANGLE - reinforcement for frame, lower

1шт.

24

F87156

JACK

1шт.

25

F65123

PIN

BASE - jack

1шт.

26

F13372

PIN - base

1шт.

PIN - cotter 1/8" x 1" (132-310)

1шт.

WASHER - 1/4" flat (195-518)

2шт.

27

F60838

SPLIT PIN

COTTER - hairpin

1шт.

28

F83141

BRACKET - jack

1шт.

BOLT - 1/2" x 5" N.F. hex. (14-880) nut (25-118) l. w. (92-8)

1шт.

29

F20009

NOZZLE

PIN - for jack

1шт.

30

TB10698

COTTER - hairpin, for jack

1шт.
