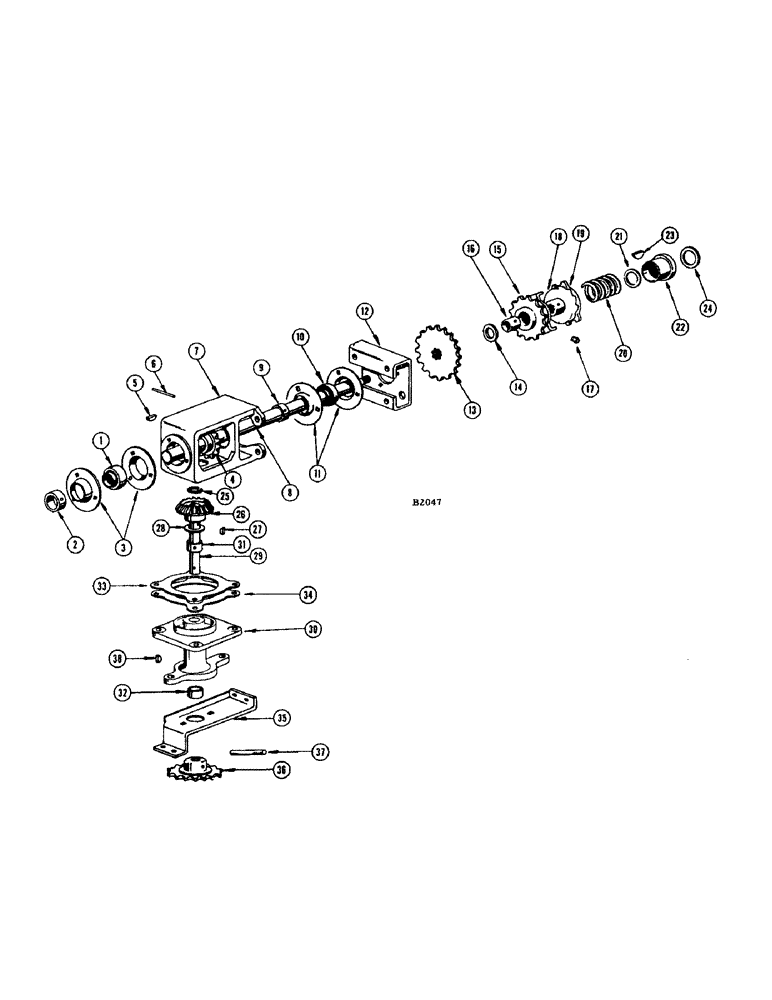

Запчасти Case IH F345 (32) - R. H. JACKSHAFT & JUMP CLUTCH (58) - ATTACHMENTS/HEADERS

1

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - jump clutch shaft, front (Fafnir $RA103PPB-2)

1шт.

2

O697CB

X

COLLAR

1шт.

3

O650CB

X

FLANGE - for 2419CHA bearing

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6)

3шт.

4

F3410

GEAR - (14T) bevel, jump clutch shaft

1шт.

5

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

6

135-345

PIN - groove 3/16" x 2"

1шт.

7

F1494

GEAR BOX - R.H. gathering chain drive gears

1шт.

8

F11728

SHAFT - jump clutch, R.H.

1шт.

NUT - 3/4" N.F. hex. jam (25-1512)

2шт.

9

O697CB

X

COLLAR - for F51085 bearing

1шт.

10

F51085

BEARING

- jump clutch shaft, rear (Fafnir #1103KRRB-3)

1шт.

10

O650CB

X

FLANGE - for F51085 bearings

2шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

3шт.

12

F18006

BRACKET - jump clutch bearing, rear

1шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (14-724) nut (25-117)

4шт.

13

F76544

SPROCKET - (28T) picking roll drive (730 RPM) Standard (Before #8266001) See F76510 and F78961

1шт.

F78961

SPROCKET - (35T) picking roll drive (750 RPM) Standard (#8266001 and after)

1шт.

14

F7287

WASHER - (2-1/4" O.D. x 1-1/8" I.D. #10 ga.) spacer, jump clutch

1шт.

15

F79937

SPROCKET - (25T) jump clutch drive

1шт.

16

F53320

BUSHING

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

18

F3142

HUB - notched

1шт.

19

F3143

PLATE - notched, jump clutch

1шт.

20

O1109B

SPRING - jump clutch, rear

1шт.

21

X5137

COLLAR - rear jump clutch spring

1шт.

23

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

25

O5872AB

X

SNAP RING - for F18002 shaft

1шт.

26

F3409

GEAR - (14T) bevel (on F18002 shaft)

1шт.

27

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

28

F18004

BEARING - (Oilite #TT2001) thrust for F3409 gear

1шт.

29

F18002

SHAFT - outer gathering chain drive

1шт.

30

F79548

SUPPORT - bearing carrier

1шт.

31

E3389S

BUSHING - (1-1/4" O.D. x 1-1/4" long - drilled)

1шт.

32

E3289S

BUSHING - (1-1/4" O.D. x 1-1/4" long)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and LW (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

33

F10974

SHIM - (.005") gear box to bearing carrier

1шт.

34

F10973

SHIM - (.020") gear box to bearing carrier

1шт.

35

F18016

BRACKET - bearing carrier support, R.H.

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (12-620) nut (25-106)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) l. w. (92-6)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

2шт.

36

F1305

SPROCKET ASSY.

SPROCKET - (8T) outer gathering chain drive

1шт.

37

135-344

PIN, GROOVED

PIN - groove 3/16" x 1-3/4"

1шт.

38

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

F18023

CHAIN - R.H. jackshaft drive (NSS - see page 5)

1шт.

F82130

PLATE - support, R.H.

1шт.

F76510

SPROCKET - (24T) picking roll drive (625 RPM) Special for slow picking roll speeds

1шт.

F78961

SPROCKET - (35T) picking roll drive (750 RPM) Special for fast picking roll speeds (Before #8266001)

1шт.
