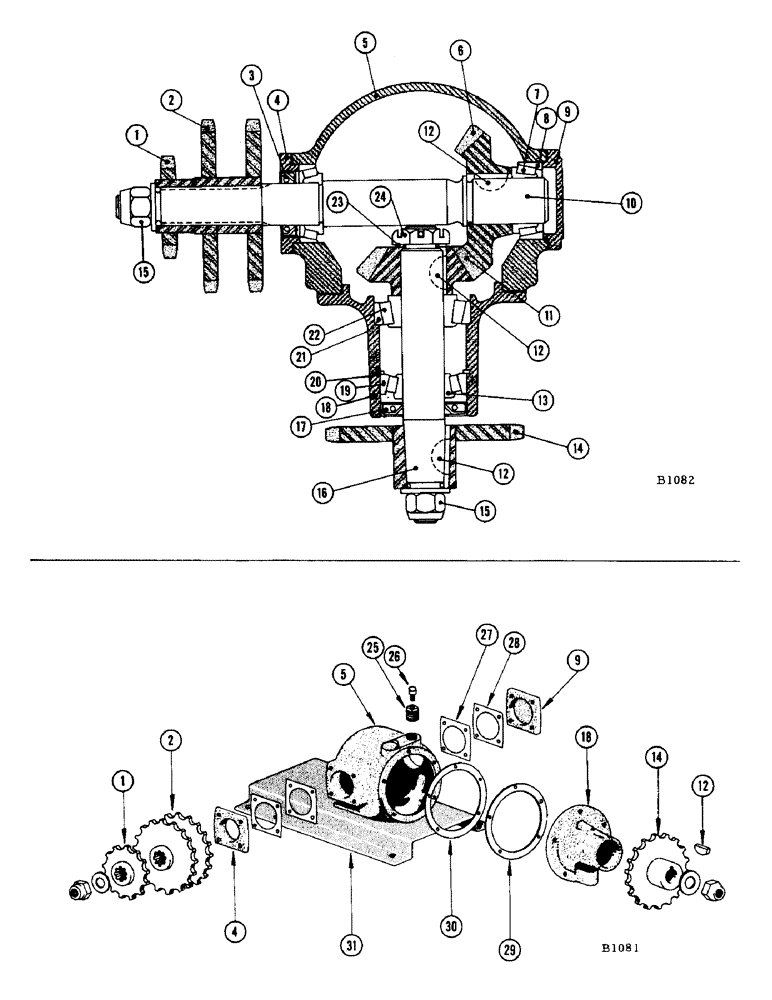

Запчасти Case IH F345 (30) - MAIN GEAR BOX (58) - ATTACHMENTS/HEADERS

1

F76486

SPROCKET - (14T) drives auger drive shaft

1шт.

2

F76485

SPROCKET - (25T-double) drives R.H. and L.H. picking roll jump cloth

1шт.

3

O3868AB

OIL SEAL

- front end of F7216 shaft

1шт.

4

77BF

CAP - front bearing, for gear box

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) l. w. (92-5)

4шт.

5

75BF

GEAR BOX

1шт.

PLUG - 1/4" std. pipe (221-12)

1шт.

PLUG - 1/8" std. pipe (221-11)

1шт.

6

O4352BF

GEAR - (19T) on F7216 shaft

1шт.

7

VT2096

X

CONE - (Timken #14137A) bearing, both ends of F7216 shaft

2шт.

8

VT2097

X

CUP - (Timken #14276) bearing

2шт.

9

76BF

CAP - rear bearing, for gear box

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) l. w. (92-5)

4шт.

10

F7216

SHAFT - driven, splined

1шт.

WASHER - 3/4" flat (95-12)

1шт.

11

O4353BF

PINION - (15T) on F7211 shaft

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

3шт.

13

O4302BF

BEARING, CONE

CONE - (Timken #14131) outer bearing, for 4363BFA housing

1шт.

14

F78963

SPROCKET - (30T) gear box drive (Standard - See F77843)

1шт.

F77843

SPROCKET - (25T) gear box drive (Special - See F78963)

1шт.

15

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , Elastic stop 3/4"-16, GB

2шт.

16

F7211

SHAFT - drive, pinion

1шт.

WASHER - 3/4" flat (95-12)

1шт.

17

F7213

SEAL - grease, front 4364BFA housing

1шт.

18

4364BFA

HOUSING - gear box

1шт.

19

VT2097

X

CUP - (Timken #14276)

1шт.

20

VT3522

X

SNAP RING - front of 4364BFA housing

1шт.

21

O4300BF

ANGLE BAR

CUP - (Timken #2729) bearing, for O4301BF cone

1шт.

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" std. pipe

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

92-6

LOCK WASHER,3/8"

5шт.

22

O4301BF

CONE

- (Timken #2785) inner bearing, for 4364BFA housing

1шт.

23

O3032B

X

WASHER - (1-5/8" O.D. x 1-1/32" I.D. #16 ga.) inner end of F7211 shaft

1шт.

24

O1553CH

X

NUT - (1" N.F. slotted) for F7211 shaft (inner end)

1шт.

PIN - cotter 1/8" x 1-1/2" (132-52)

1шт.

25

F40018

PLUG - filler, gear box

1шт.

26

O6500CH

FITTING - vent. gear box plug

1шт.

27

N3766

SHIM,.005" Thk

Bearing caps .005" Thk

1шт.

28

N3767

SHIM - (.010" thick) bearing caps

1шт.

29

N3769

SHIM - (.010" thick) gear box, L.H. between gear box and housing

1шт.

30

N3768

SHIM - (.005" thick) gear box, L.H. between gear box and housing

1шт.

31

F82117

SUPPORT - gear box

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

2шт.

BOLT - 5/8" x 1-1/4" N.C. hex. (13-1020) l. w. (92-10) and fl. wshr. (95-10)

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

4шт.
