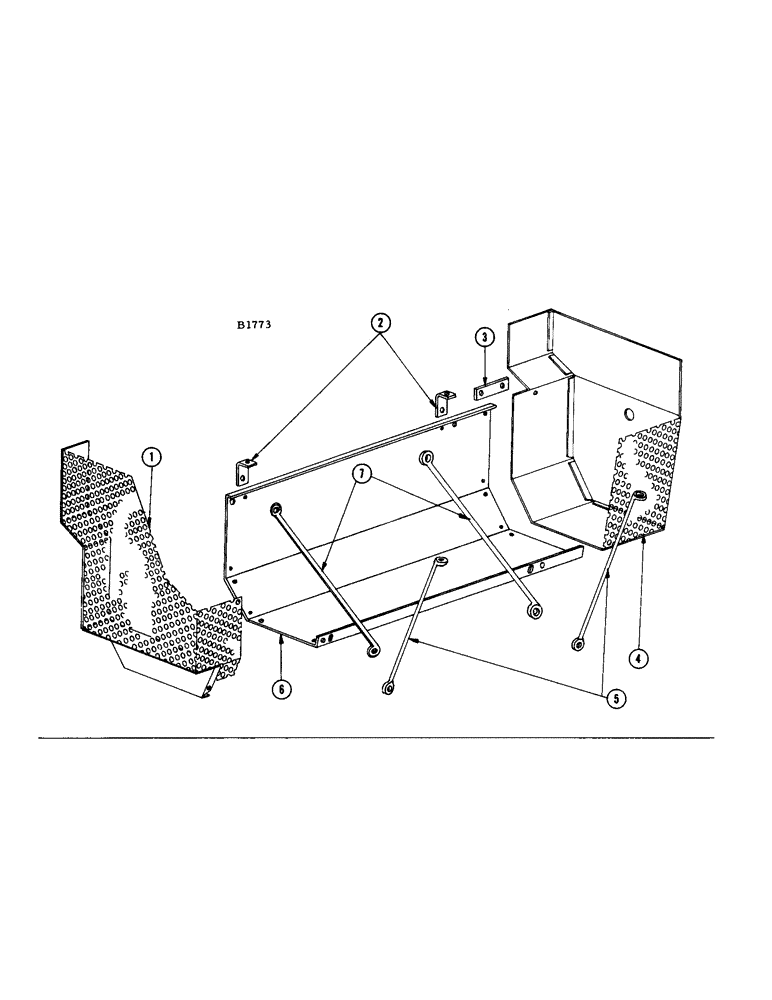

Запчасти Case IH F345 (26) - FAN HOUSING SHIELD, MODELS 600, 660, 700, 900, 960 (58) - ATTACHMENTS/HEADERS

1

F82194

SHIELD - fan inlet, L.H.

1шт.

2

F18108

CLIP - front support

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

4шт.

3

F18109

STRAP - rear bolting (For F82195 Shield Assembly)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) and l. w. (192-19) pl. wshr. (195-102)

2шт.

4

F82195

SHIELD - fan inlet, R.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

6шт.

5

F18097

ROD - rear support

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123) and l. w. (192-21) pl. wshr. (195-104)

2шт.

6

F18095

SHIELD - fan housing (Beneath Fan Housing(

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

5шт.

7

F18096

ROD - front support

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.
