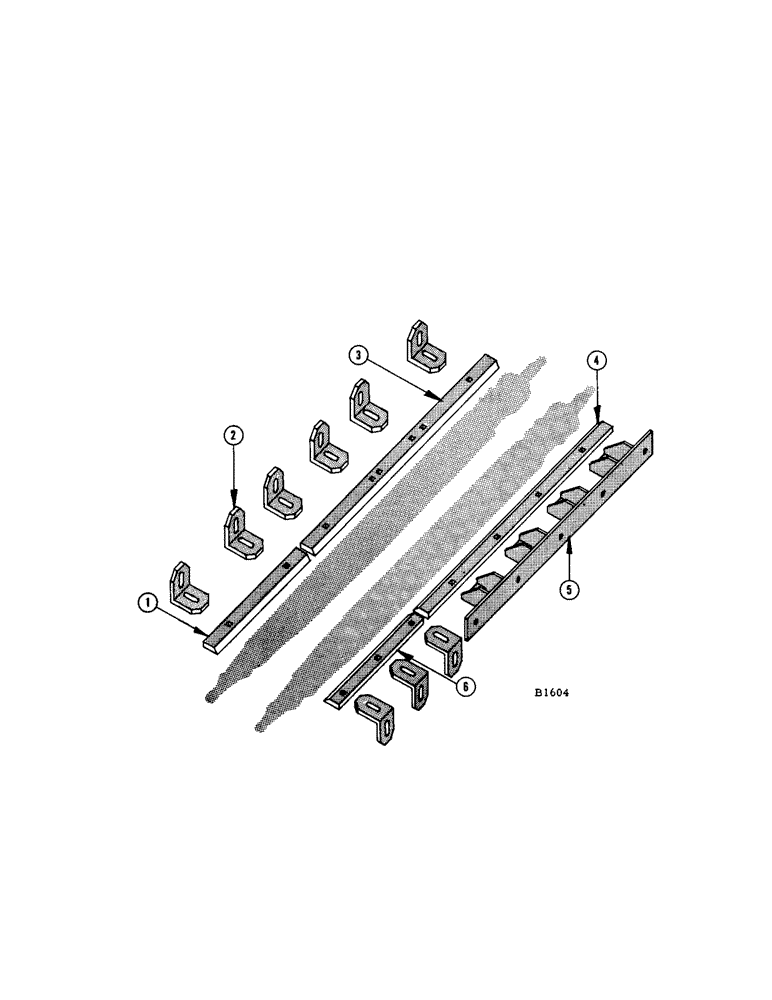

Запчасти Case IH F345 (24[1]) - TRASH KNIFE (58) - ATTACHMENTS/HEADERS

1

F10536

KNIFE - inner front

2шт.

BOLT - 3/8" x 1-1/2" #3 plow (118-121) nut (129-103)

4шт.

2

F10534

CLIP - knife mounting

18шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

18шт.

WASHER - 3/8" plain (195-104)

24шт.

3

F10537

KNIFE - inner rear

2шт.

BOLT - 3/8" x 1-1/2" #3 plow (118-121) nut (129-102) and l. w. (192-21) pl. wshr. (195-104)

8шт.

4

F10533

KNIFE - outer rear

2шт.

BOLT - 3/8" x 1-1/2" #3 plow (118-121) nut (129-103) and l. w. (912-21) pl. wshr. (195-104)

8шт.

5

F78837

BAR - knife mounting (outer rear knife)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123) and l. w. (192-21) pl. wshr. (195-104)

10шт.

6

F10535

KNIFE - outer front

2шт.

BOLT - 3/8" x 1-1/2" #3 plow (118-121) nut (129-103) and l. w. (192-21) pl. wshr. (195-104)

6шт.
