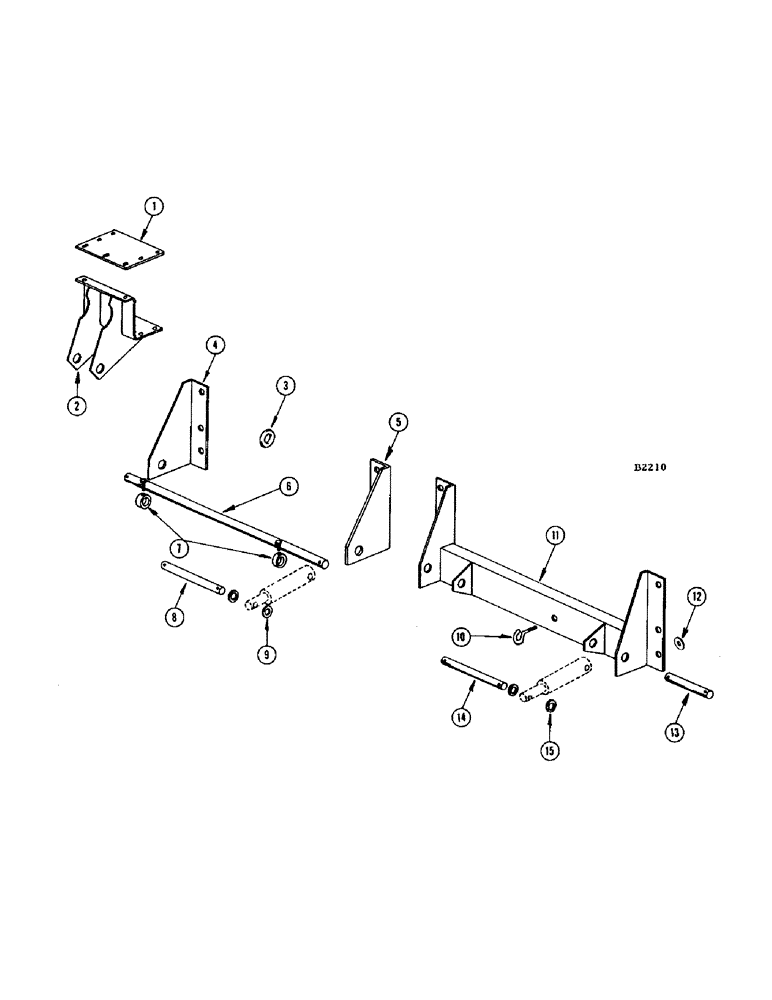

Запчасти Case IH F345 (22) - CORN HEAD LIFT, MODELS 600, 660, 700, 900, 960, MODEL 800, MODELS 1000, 1010, 1060 (58) - ATTACHMENTS/HEADERS

1

F18054

PLATE - axle mounting, lift ram

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) and l. w. (192-21) pl. wshr. (195-525)

3шт.

2

F82159

PIVOT - axle mounting

1шт.

BOLT - 3/8" x 6-1/2" N.F. hex. (114-220) nut (129-123) and l.w. (192-21) pl. wshr. (195-525)

4шт.

3

F11780

RING - retaining, hydraulic hose MODEL 800

1шт.

4

F9866

SUPPORT - R.H., cylinder MODEL 800

1шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) nut (129-125) MODEL 800

1шт.

5

F9867

SUPPORT - L.H. cylinder MODEL 800

1шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) nut (129-125) MODEL 800

1шт.

6

F9865

PIN - cylinder support MODEL 800

1шт.

PIN - cotter 1/4" x 1-1/2" (132-150) MODEL 800

2шт.

7

O7730AB

COLLAR - locking MODEL 800

2шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. cup pt. set (85-610) MODEL 800

2шт.

8

F11772

PIN - header lift MODEL 800

2шт.

PIN - cotter 1/4" x 1-1/2" (132-150) MODEL 800

4шт.

9

O124GR

WASHER

MODEL 800

4шт.

10

F11792

EYEBOLT - hydraulic hose support MODEL 1000 - 1010 - 1060

1шт.

NUT - 5/16" N.F. hex. (129-122) MODEL 1000 - 1010 - 1060

2шт.

LOCKWASHER - 5/16" (192-20) MODEL 1000 - 1010 - 1060

1шт.

11

F86333

SUPPORT - ram MODEL 1000 - 1010 - 1060

1шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) nut (129-125) MODEL 1000 - 1010 - 1060

2шт.

12

O1202TS

SPACER MODEL 1000 - 1010 - 1060

2шт.

13

F12293

PIN - ram MODEL 1000 - 1010 - 1060

2шт.

PIN - cotter 1/4" x 1-1/2" (132-150) MODEL 1000 - 1010 - 1060

4шт.

14

F11772

PIN - header lift MODEL 1000 - 1010 - 1060

2шт.

PIN - cotter 1/4" x 1-1/2" (132-150) MODEL 1000 - 1010 - 1060

4шт.

15

O124GR

WASHER

MODEL 1000 - 1010 - 1060

4шт.
