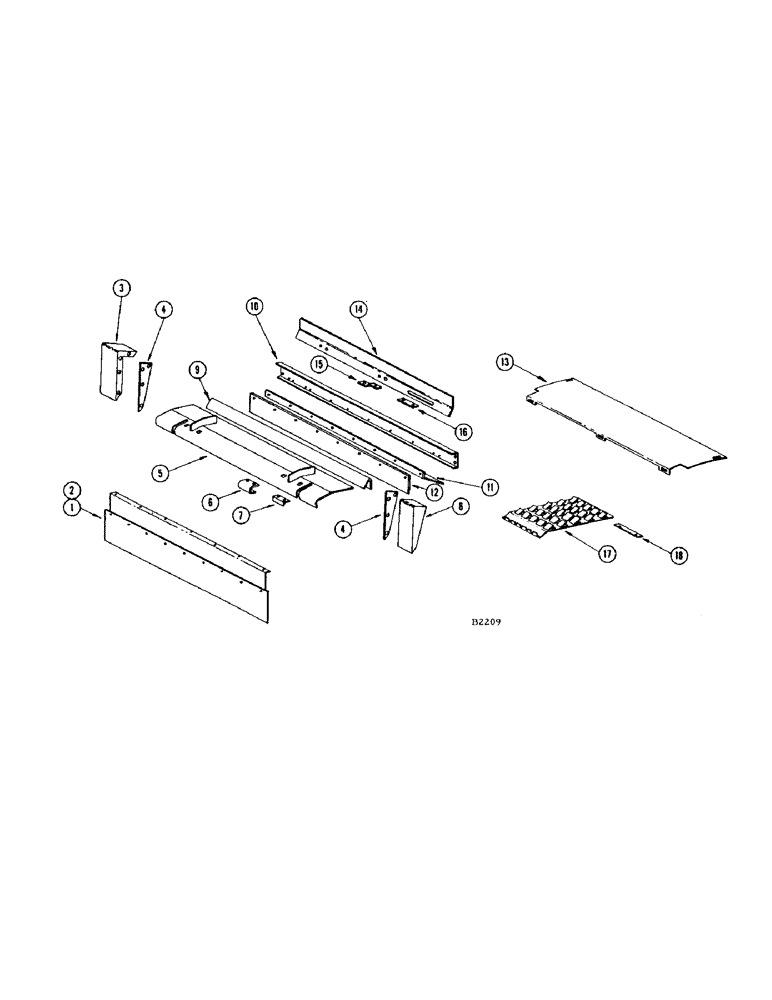

Запчасти Case IH F345 (20) - ADAPTING PARTS, MODELS 1000, 1010, 1060, PLATES, FEED, FILLER AND SEAL (58) - ATTACHMENTS/HEADERS

1

F86394

SEAL - hinged feed plate (Model 1010 & 1060)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

7шт.

2

F86392

SEAL - hinged feed plate (Model 1000)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

7шт.

3

F79977

PLATE - filler, R.H.

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122) and l. w. (192-20) pl. wshr. (195-521)

4шт.

4

F11744

SHIM - filler plate

4шт.

5

F79980

PLATE - feed, hinged

1шт.

6

F11734

HINGE - feed plate

2шт.

7

F12320

CLIP - hinge

2шт.

8

F79978

PLATE - filler, L.H.

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122) and l. w. (192-20) pl. wshr. (195-521)

4шт.

9

F11785

PLATE - feed, stationary

1шт.

10

F12325

CHANNEL - front cross

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

9шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (114-400) nut (129-125)

2шт.

11

F11786

PLATE - baffle

1шт.

12

F11787

SEAL

1шт.

13

F10918

SHIELD - concave grate tine COVER

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) and l. w. (192-20) fl. wshr. (195-103) CONCAVE GRATE TINE COVER

2шт.

14

F10676

PLATE - filler, rub bar cylinder

8шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103) RUB BAR CYLINDER FILLER PLATE

24шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (111-330) nut (129-103) RUB BAR CYLINDER FILLER PLATE

24шт.

LOCKWASHER - 3/8" (192-21) RUB BAR CYLINDER FILLER PLATE

48шт.

15

F10677

CLAMP - filler plate RUB BAR CYLINDER

24шт.

16

F10678

STRAP - washer, filler plate RUB BAR CYLINDER

8шт.

17

F12266

COVER - grid STRAWWALKER

20шт.

18

F11415

CLAMP - grid cover STAWWALKER

20шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) STRAWWALKER GRID COVER

40шт.
