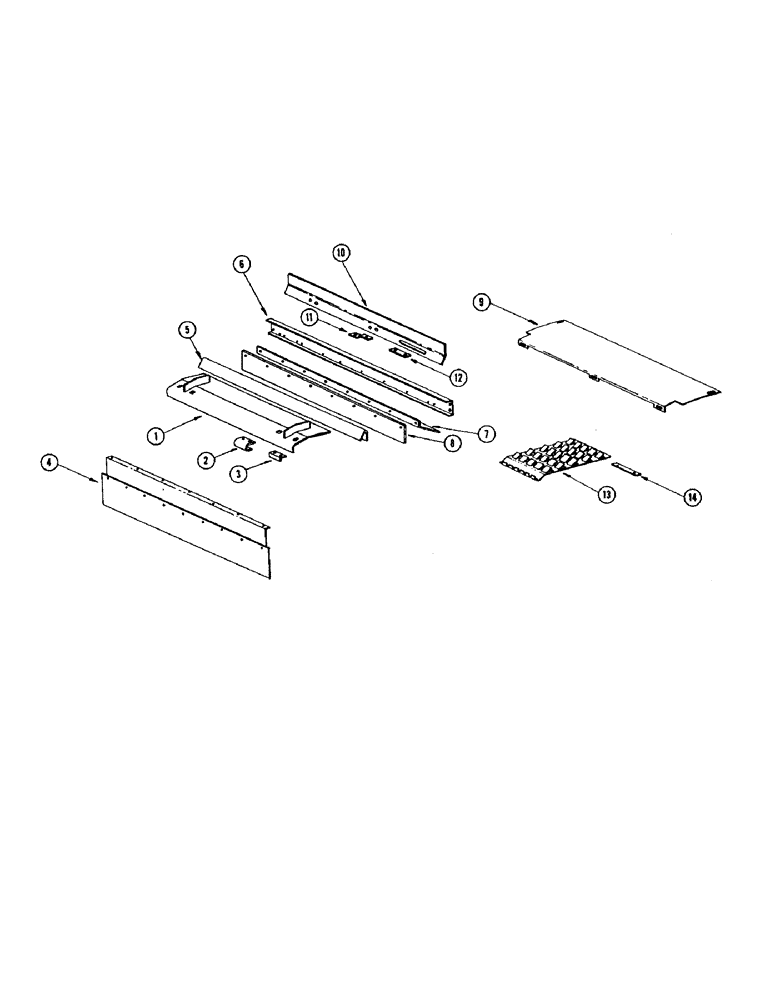

Запчасти Case IH F345 (18) - ADAPTING PARTS, MODEL 800, PLATES, FEED AND SEAL (58) - ATTACHMENTS/HEADERS

1

F79967

PLATE - feed, hinged

1шт.

2

F11734

HINGE - feed plate

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103)

4шт.

3

F12320

CLIP - hinge retainer

2шт.

4

F86388

SEAL - hinged feed plate

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

6шт.

5

F11767

PLATE - feed, stationary

1шт.

6

F12321

CHANNEL - front cross

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

7шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (114-400) nut (129-125)

2шт.

7

F11768

PLATE - baffle

1шт.

8

F11769

SEAL - feeder housing

1шт.

9

F10917

SHIELD - concave grate tine COVER

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) and l. w. (912-20) fl. wshr. (195-103) CONCAVE GRATE TINE COVER

2шт.

10

F10679

PLATE - filler, rub bar cylinder

8шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103) RUB BAR CYLINDER FILLER PLATE

24шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (111-330) nut (129-103) RUB BAR CYLINDER FILLER PLATE

24шт.

11

F10677

CLAMP - filler plate RUB BAR CYLINDER

24шт.

12

F10678

STRAP - washer, filler plate RUB BAR CYLINDER

8шт.

13

F12266

COVER - grid (Replaces F11414) STRAWWALKER

15шт.

14

F11415

CLAMP - grid cover STRAWWALKER

15шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) STRAWWALKER GRID COVER

30шт.
