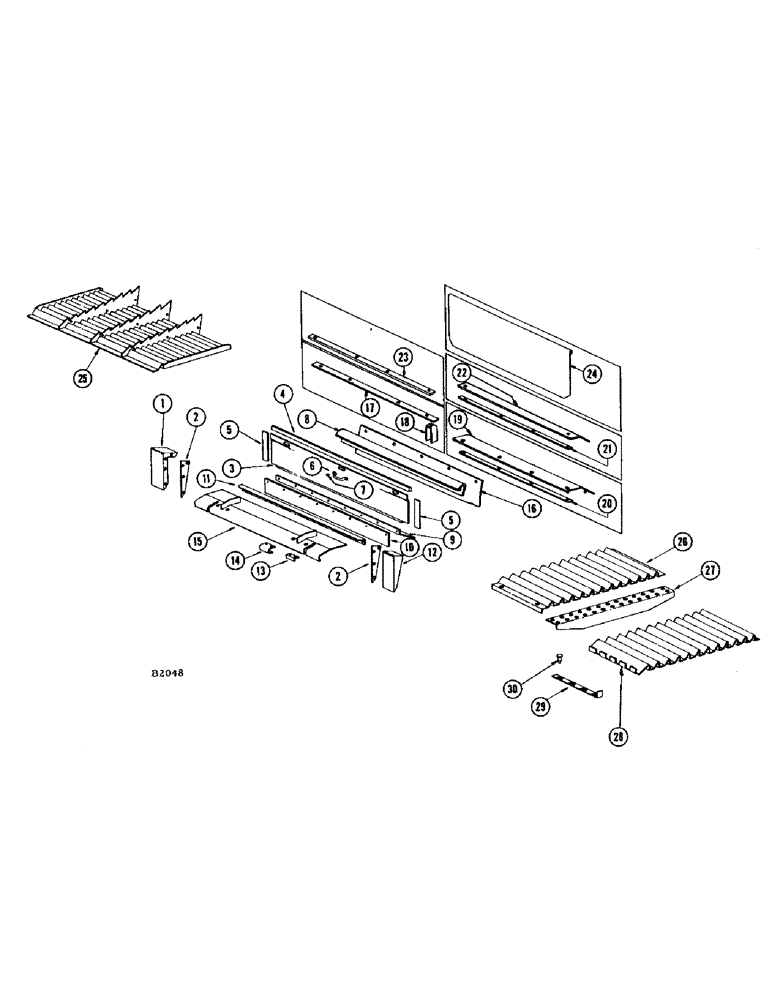

Запчасти Case IH F345 (16) - ADAPTING PARTS, MODELS 600, 660, 700, 900, 960, PLATES, FEED, FILLER AND SEAL (58) - ATTACHMENTS/HEADERS

1

F79951

PLATE - filler, L.H.

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

4шт.

2

F11744

SHIM - filler plate

4шт.

3

F84874

DOOR - cylinder

1шт.

4

F22002

SEAL

- top, cylinder door

1шт.

5

F19317

SEAL - side, cylinder door

1шт.

6

228-3

HANDLE - Stanley #479

1шт.

7

49-35

RIVET - 3/16" x 5/16" wagon box head

2шт.

8

F18050

PLATE - feed, stationary

1шт.

9

F11746

PLATE - baffle

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

8шт.

10

F11676

SEAL - feeder housing

1шт.

11

F16211

ANGLE - cross

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex. (114-302) nut (129-124)

1шт.

12

F79950

PLATE - filler, R.H.

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

4шт.

13

F12320

CLIP - hinge retainer

2шт.

14

F11734

HINGE - feed plate

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103)

4шт.

15

F86386

PLATE - feed, hinged

1шт.

16

F16763

SEAL - for feed plate

1шт.

17

F17887

STRIP - concave filler PLATES

1шт.

18

F17888

RETAINER - concave filler PLATES

4шт.

BOLT - 5/16" x 3-1/4" rhd. sq. nk. (111-223) nut (129-102) CONCAVE FILLER PLATES

4шт.

19

F82190

SHIELD - concave grate tine (Rub Bar) COVER

1шт.

NUT - 1/4" N.C. hex. (25-104) l. w. (92-4) CONCAVE GRATE TINE COVER

8шт.

F82189

SHIELD - concave grate tine (Spike Tooth) COVER

1шт.

NUT - 1/4" N.C. hex. (25-104) l. w. (92-4) CONCAVE GRATE TINE COVER

8шт.

20

F18091

STRIP - bolting, grate tine shield CONCAVE COVER

2шт.

21

F18347

STRIP - bolting, grain pan shield GRATE TINE COVER

1шт.

22

F84137M

SHIELD - grain pan tine GRATE COVER

2шт.

BOLT - 1/4" x 3/4" N.C. hex. (113-3) nut (131_129) GRAIN PAN GRATE TINE COVER

5шт.

23

F17568

PLATE - filler, rub bar cylinder

8шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) RUB BAR CYLINDER FILLER PLATE

24шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) l. w. (192-21) RUB BAR CYLINDER FILLER PLATE

8шт.

24

F18058

FLAP - check, heavy

1шт.

25

F83981

GRILLE ASSY

GRID - removable STRAWRACK COVER - MODEL 600 - 660

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) STRAWRACK GRID COVER - MODEL 600 - 660

24шт.

26

F21188

COVER - grid, front section STRAWWALKER - MODEL 700 - 900 - 960

4шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) STRAWWALKER GRID COVER - MODEL 700 - 900 - 960

8шт.

27

F84069

STIFFENER STRAWWALKER GRID COVER - MODEL 700 - 900 - 960

8шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) l. w. (192-19) and fl. wshr. (195-518) STRAWWALKER GRID COVER - MODEL 700 - 900 - 960

40шт.

NUT - 1/4" N.F. (129-121) STRAWWALKER GRID COVER - MODEL 700 - 900 - 960

8шт.
