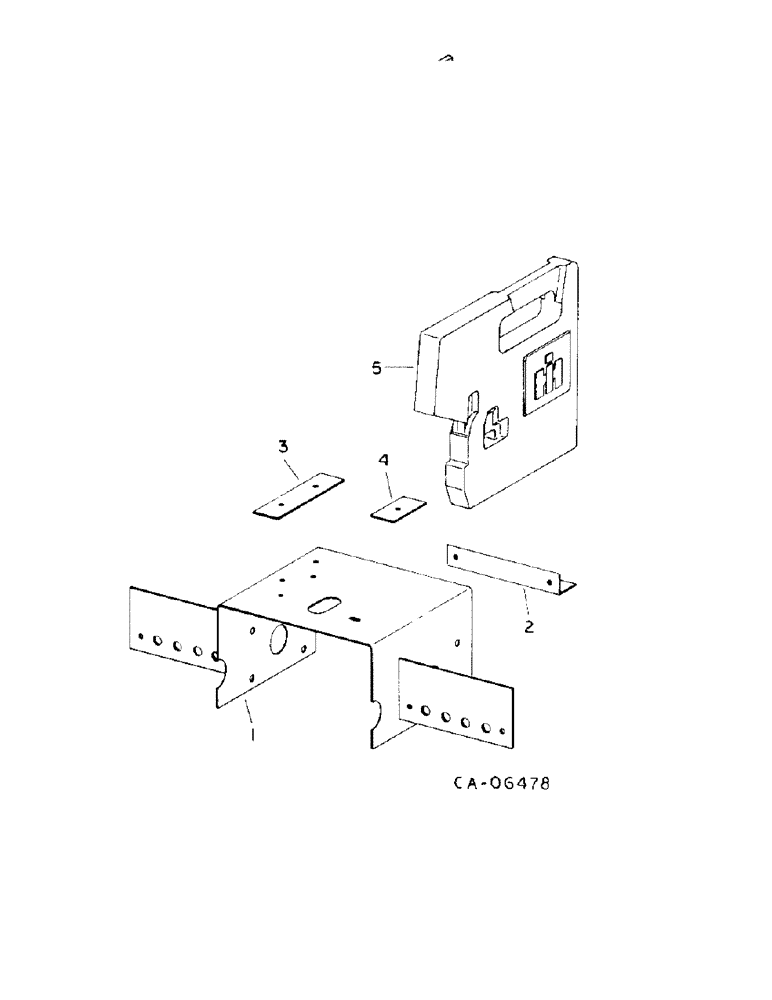

Запчасти Case IH 900 - SERIES (B-27[A]) - STEERING AXLE SUPPORT AND COUNTER WEIGHTS (58) - ATTACHMENTS/HEADERS

1

185365C1

SUPPORT

ASSY, weight

1шт.

2

1308872C1

BRACKET

ANGLE, side weight retainer

2шт.

3

178434C1

CLAMP

top weight RH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

561838R1

PLATE

CLAMP, top weight LH

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

WEIGHT, steering axle, 100 lbs., serviced only as a machine attachment

1шт.
