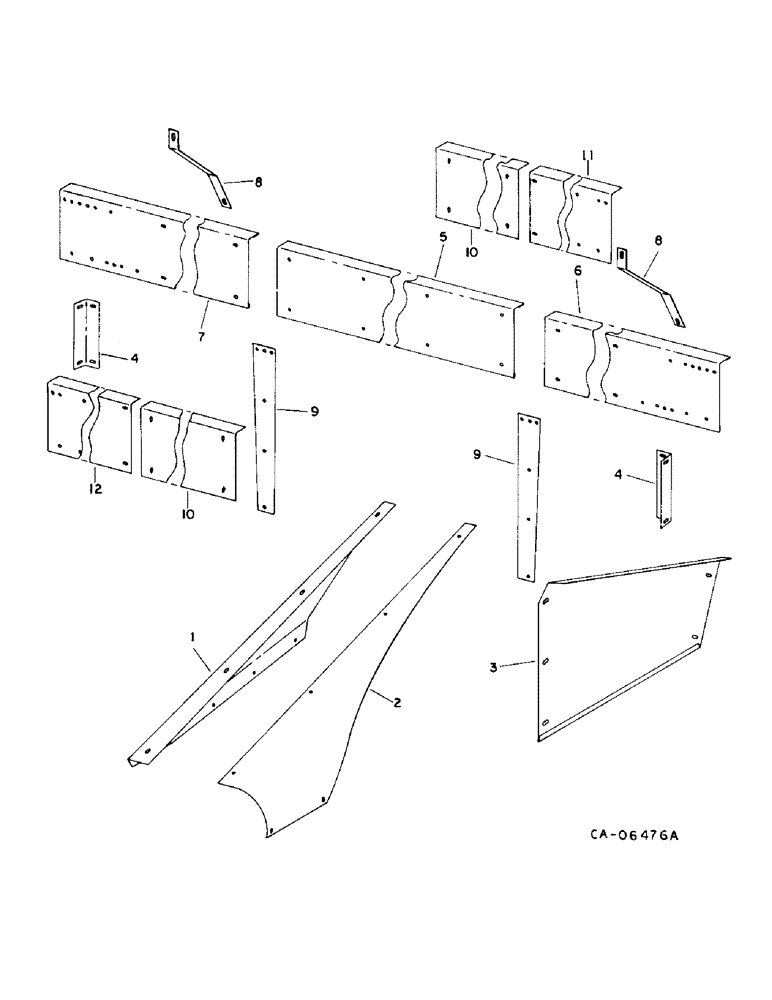

Запчасти Case IH 900 - SERIES (B-25) - GATHERER SIDE AND REAR EXTENSIONS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
199301C1
SUPPORT
side front inner LH
1шт.
1
199302C1
SUPPORT
side front inner RH
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
2
199303C1
SUPPORT
side front outer LH
1шт.
2
199304C1
SUPPORT
side front outer RH
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
3
1306120C1
SUPPORT
side rear LH
1шт.
3
1306121C1
SUPPORT
side rear RH
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
4
199115C1
ANGLE
side extension
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 xlt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
5
199116C1
SUPPORT
rear center
1шт.
6
199119C1
SUPPORT
SUPORT, outer LH, 943 and 944
1шт.
6
199168C1
SUPPORT
outer RH, 954 and 963
1шт.
6
199170C1
SUPPORT
outer LH, note 964 and 983, order ref no. 10 & 11
1шт.
6
199172C2
SUPPORT
outer LH, note 984, order ref no. 10 & 11
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
7
199120C1
SUPPORT
outer RH, 943 and 944
1шт.
7
199169C1
SUPPORT
outer RH, 954 and 963
1шт.
7
199171C1
SUPPORT
outer RH, note 964 and 983, order ref no. 10 & 12
1шт.
7
199173C2
SUPPORT
outer RH, note 984, order ref no. 10 & 12
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
8
199956C1
SUPPORT
rear extension
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znd slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
9
199121C2
LARGE PLATE
BAR, rear extension, 4 for 943, 944, 954 and 963, 6 for 964, 983 and 984
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znd slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
10
1327029C2
SHIELD
SUPPORT, rear middle, 964, 983 and 984
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
11
1327030C1
SUPPORT
outer LH, 964 and 983
1шт.
11
1327032C1
SUPPORT
outer RH, 984
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
12
1327031C1
SUPPORT
outer RH, 964 and 983
1шт.
12
1327033C1
SUPPORT
outer RH, 984
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
Выбрано товаров: 47
