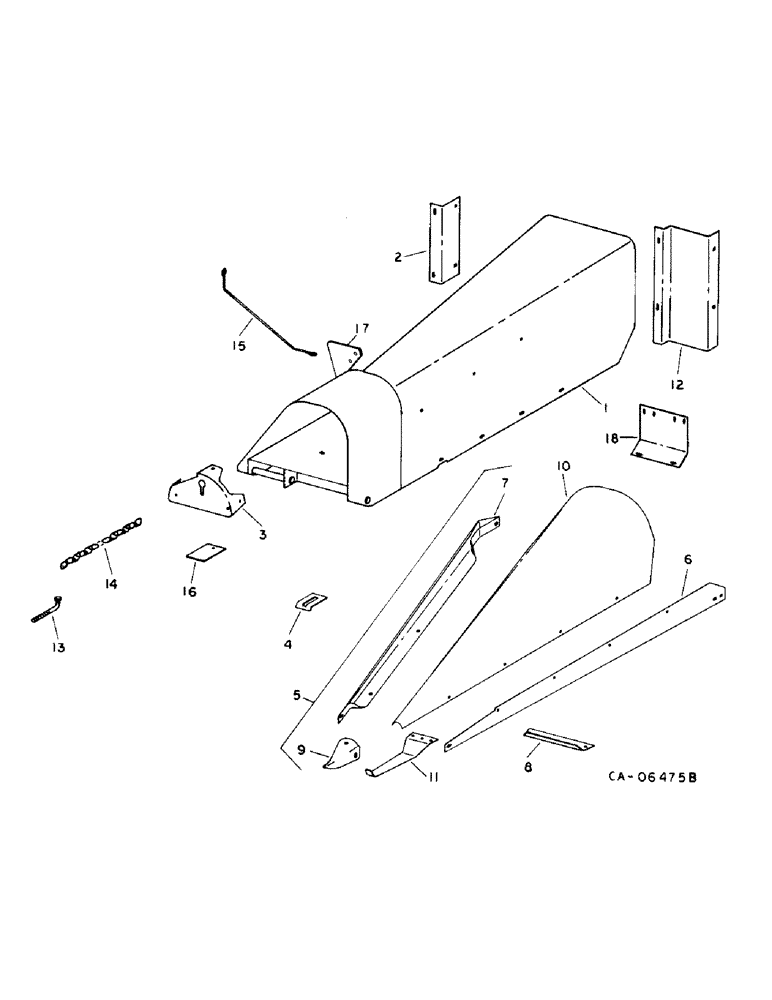

Запчасти Case IH 900 - SERIES (B-23) - OUTER GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

199503C2

SHIELD

ASSY, gatherer outer LH

1шт.

1

199504C2

SHIELD

ASSY, gatherer outer RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

2

199526C1

BRACKET

ANGLE, outer gatherer shield support

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

180042C1

SUPPORT

outer divider chain LH

1шт.

3

180043C1

SUPPORT

outer divider chain RH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 zn truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 zn flange lock

1шт.

4

176466C2

PLATE

outer gatherer shield lock

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

176233C93

DIVIDER ASSY.

DIVIDER ASSY, outer LH, includes ref nos. 6 thru 11 and attaching parts

1шт.

5

176234C93

DIVIDER

ASSY, outer RH, includes ref nos. 6 thru 11 and attaching parts

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 crg type 5

1шт.

26882R1

BOLT,Sq Nk, 1/2" x 5 1/2", Gr 5

1/2 x 5-1/2 PHC crg type 5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

6

176240C1

SUPPORT

outer divider outer LH

1шт.

6

176241C1

SUPPORT

outer divider outer RH

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

7

176242C1

SUPPORT

outer divider inner LH

1шт.

7

176243C1

SUPPORT

outer divider inner RH

1шт.

28658R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

BOLT, 1/2 x 5-1/2 sq-nk crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

8

176239C3

ANGLE

BRACE, outer divider adj bolt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd flange lock

1шт.

9

199376C1

POINT

outer divider

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt truss-hd

1шт.

10

176235C2

SHEET

outer divider LH

1шт.

10

176236C2

SHEET

outer divider RH

1шт.

11

199068C2

HOLDER

SUPPORT, outer divider, shoe

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

12

199529C1

SUPPORT

outer gatherer shield LH, 964 w/36 in. spacing

1шт.

12

199530C1

SUPPORT

outer gatherer shield RH 964 w/36 in. spacing

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 12 n slt truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

13

180040C1

BOLT,Hex, 1/2" - 13 x 4 1/4"

divider adjustment

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert hex

1шт.

14

199217C2

CHAIN (AG)

CHAIN, divider shield adjusting

1шт.

15

1306124C1

SUPPORT

outer gatherer shield

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

no. 3/8 x 1-1/4 t/hds

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

16

180037C1

RETAINER

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

17

STRIP, ear corn deflector, refer to this section under ear corn deflector

1шт.

18

1306945C1

FILLER

auger trough end, 944 w/36 inch spacing

2шт.

18

1306895C1

FILLER

auger trough end, 943 w/28 & 944 w/38 inch spacing

2шт.

18

1306896C1

FILLER

auger trough end, 954 w/36 or 38 inch spacing

2шт.

18

1306897C1

SUPPORT

FILLER, auger trough end, 963 w/28 & 964 w/38 inch spacing

2шт.

18

1306898C1

LARGE PLATE

FILLER, auger trough end, 983 w/28 & 984 w/36 or 38 inch spacing

2шт.

18

1306899C1

FILLER

auger trough end, 964 w/36 inch spacing

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
