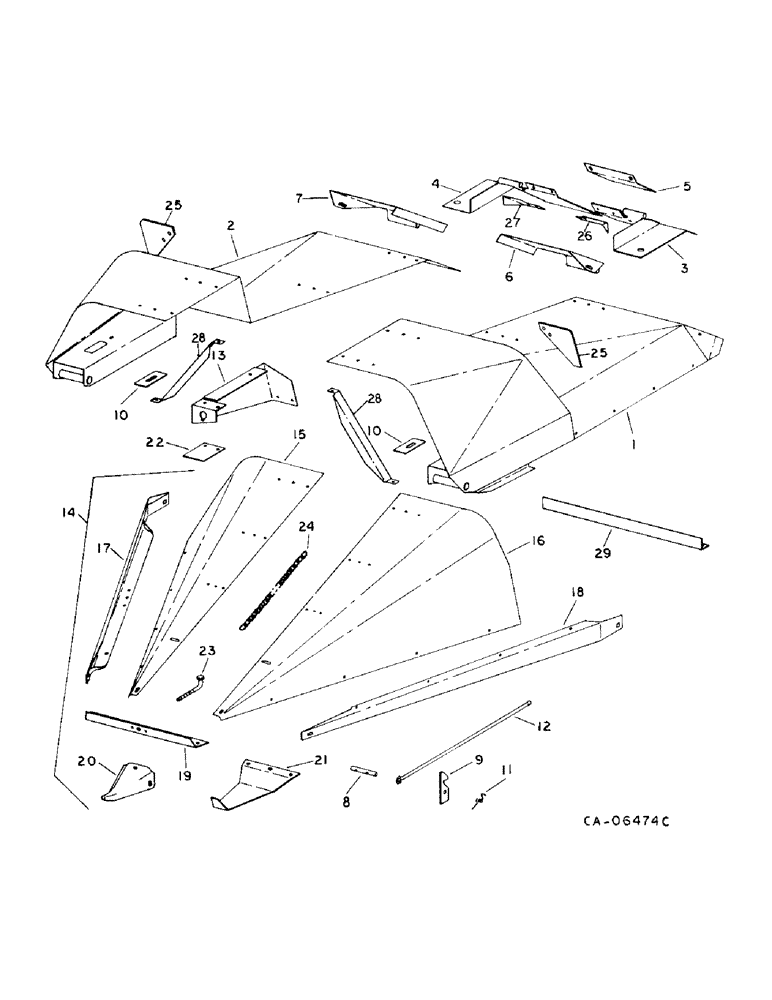

Запчасти Case IH 900 - SERIES (B-21) - CENTER GATHERER SHIELDS AND DIVIDERS FOR 36, 38, AND 40 IN. ROWS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
199545C2
SHIELD
ASSY, inner gatherer LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
2
199546C2
SHIELD
ASSY, inner gatherer RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 flange lock
1шт.
3
1306571C1
SUPPORT
HINGE ASSY, inner gatherer rear LH, replaces 199943C1 by also ordering hinge 1306572C1, support 1306574C1, shield, 1306688C1 and shield 1306689C1
1шт.
19952R1
BOLT,Hex, 1/2" - 13 x 7", Gr 5
1/2 x 7 type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
27875R1
CAPTIVE WASHER SCREW,Phillips Drive, Flat HD, 5/16" - 18 x 1"
SCREW, 5/16 x 1 PHC f/hdcr l/w
1шт.
25708R1
WASHER
.344 x .688 x .089 hdn
1шт.
4
1306572C1
SUPPORT
HINGE ASSY, inner gatherer rear RH, replaces 199944C1 by also ordering hinge 1306571C1, shield 1306688C1 and shield 1306689C1
1шт.
19952R1
BOLT,Hex, 1/2" - 13 x 7", Gr 5
1/2 x 7 type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
27875R1
CAPTIVE WASHER SCREW,Phillips Drive, Flat HD, 5/16" - 18 x 1"
SCREW, 5/16 x 1 PHC f/hdcr l/w
1шт.
25708R1
WASHER
.344 x .688 x .089 hdn
1шт.
5
1306574C1
SUPPORT
inner gatherer rear hinge, replaces 199947C1 by also ordering hinge 1306571C1, hinge 1306572C1, shield 1306688C1 and shield 1306689C1
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt truss-hd
1шт.
6
199524C1
SUPPORT
inner gatherer rear outer LH
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4 crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
7
199525C1
SUPPORT
inner gatherer rear outer RH
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4 crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
8
199481C1
LOCK PIN,12.7mm OD x 81mm L
PIN, inner gatherer shield lock
2шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
9
176464C1
HOOK
LOCK, inner gatherer shield
2шт.
10
176216C1
PLATE
inner gatherer shield lock
2шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
11
176467C1
SPRING
inner gatherer shield lock LH
1шт.
11
176468C1
SPRING
inner gatherer shield lock RH
1шт.
12
199315C1
ROD
inner gatherer shield
2шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
2шт.
13
1306003C1
SUPPORT
center divider chain
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znd slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
14
176221C94
DIVIDER ASSY.
DIVIDER ASSY, center, includes ref nos. 15 thru 21
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
15
176223C3
SUPPORT
SHEET, center divider RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
16
176222C3
SUPPORT
SHEET, center divider LH
1шт.
17
176225C2
SUPPORT
center divider side RH
1шт.
28658R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5
BOLT, 1/2 x 5-1/2 sq-nk crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon insert
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
18
176224C2
SUPPORT
center divider side LH
1шт.
28658R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5
BOLT, 1/2 x 5-1/2 sq-nk crg type 5
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon insert
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
19
176226C3
ANGLE
BRACE, center divider adj bolt
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
20
199375C1
POINT
center divider
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt truss-hd
1шт.
21
199069C2
SHOE (ASSY)
SUPPORT, center divider, shoe
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
22
180041C1
RETAINER
inner divider chain
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znd slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
25708R1
WASHER
.344 x .688 x .089 hdn
1шт.
23
180040C1
BOLT,Hex, 1/2" - 13 x 4 1/4"
divider adjustment
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon insert
1шт.
24
199217C2
CHAIN (AG)
CHAIN, divider shield adjusting
1шт.
25
STRIP, ear corn deflector, refer to this section under ear corn deflector
1шт.
26
1306688C3
LARGE PLATE
SHIELD, gatherer drive sprocket support LH
1шт.
1306981C1
SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 3/4"
5/16 x 3/4 znp cr-recess-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
27
1306689C3
LARGE PLATE
SHIELD, gatherer drive sprocket support, RH
1шт.
1306981C1
SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 3/4"
5/16 x 3/4 znp cr-recss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
28
1306697C1
SUPPORT
center divider
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
29
1306923C1
ANGLE
inner gatherer tie
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
Выбрано товаров: 88
