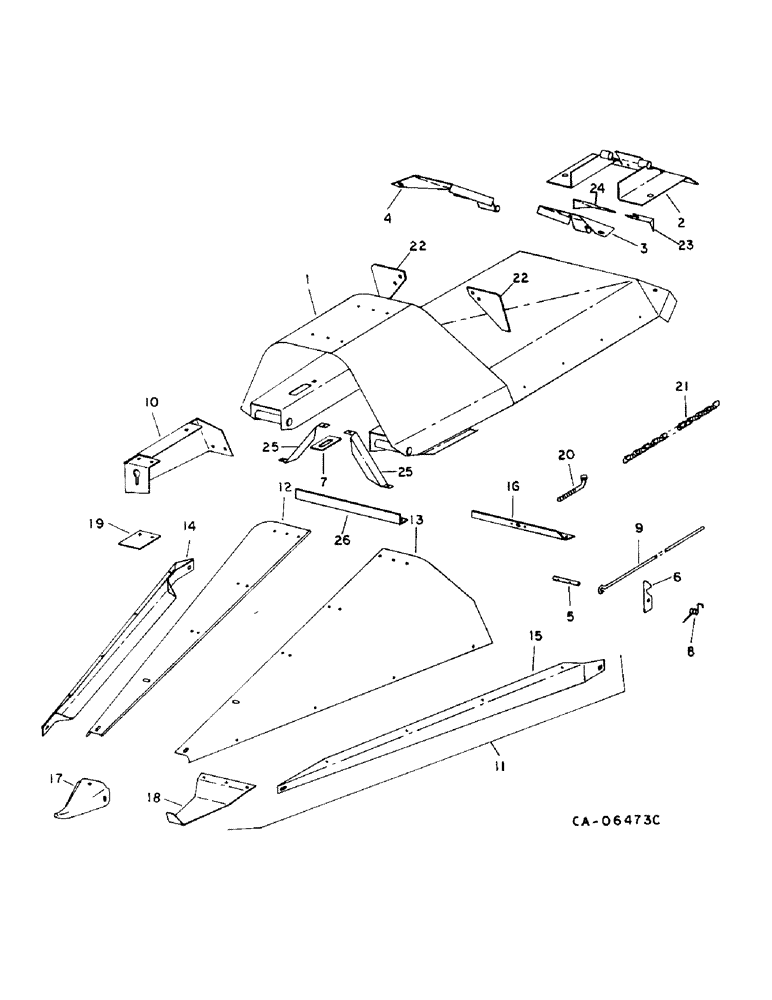

Запчасти Case IH 900 - SERIES (B-19) - CENTER GATHERER SHIELDS AND DIVIDERS, FOR 28 AND 30 IN. ROWS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
1306000C2
SHIELD
ASSY, inner gatherer, 28 in. spacing
1шт.
1
199558C2
SHIELD
ASSY, inner gatherer, 30 in. spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
2
1306570C2
HINGE
ASSY, inner gatherer rear, replaces 199562C1 by also ordering shield 1306688C1 and shield 1306689C1, 28 in. spacing
1шт.
2
1306569C2
HINGE
ASSY, inner gatherer rear, replaces 199540C1 by also ordering shield 1306688C1 and shield 1306689C1, 30 in. spacing
1шт.
27915R1
BOLT,Hex, 1/2"-13 x 5 3/4", G8
1/2 x 5-3/4 PHC type 8
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
180192
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
BOLT, 1/2 x 3-1/2 type 5
1шт.
27875R1
CAPTIVE WASHER SCREW,Phillips Drive, Flat HD, 5/16" - 18 x 1"
SCREW, 5/16 x 1 PHC f/hdcr l/w
1шт.
25708R1
WASHER
.344 x .688 x .089 hdn
1шт.
3
1306024C1
SUPPORT
inner gatherer rear outer LH, 28 in. spacing
1шт.
3
199560C1
SUPPORT
inner gatherer rear outer LH, 30 in. spacing
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4 crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
4
1306025C1
SUPPORT
inner gatherer rear outer RH, 28 in. spacing
1шт.
4
199561C1
SUPPORT
inner gatherer rear outer RH, 30 in. spacing
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4 crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
5
199481C1
LOCK PIN,12.7mm OD x 81mm L
PIN, inner gatherer shield lock
2шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
6
176464C1
HOOK
CATCH, inner gatherer shield
2шт.
7
176216C1
PLATE
BAR, inner gatherer shield lock
2шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4 type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
8
176467C1
SPRING
inner gatherer shield lock LH
1шт.
8
176468C1
SPRING
inner gatherer shield lock RH
1шт.
9
199315C1
ROD
inner gatherer shield
2шт.
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
2шт.
10
1306003C1
SUPPORT
center divider chain
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
11
176228C94
DIVIDER
ASSY, center, includes ref nos. 12 thru 18
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
12
176230C3
SHEET
SUPPORT, center divider RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
13
176229C3
SHEET
SUPPORT, center divider LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
14
176232C2
SUPPORT
center divider side RH
1шт.
28658R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5
BOLT, 1/2 x 5-1/2 sq-nk crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
15
176231C2
SUPPORT
center divider side LH
1шт.
28658R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5
BOLT, 1/2 x 5-1/2 sq-nk crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
16
176484C3
ANGLE
center divider adjusting belt
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
17
199375C1
POINT
center divider
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt truss-hd
1шт.
18
199070C2
SUPPORT
center divider, shoe
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
19
180041C1
RETAINER
STRIP, inner divider chain
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt truss-hd
1шт.
25708R1
WASHER
.344 x .688 x .089 hdn
1шт.
19
B94736
KIT
Includes 19A - 19C SKID PAD KIT - CH INNER 30
1шт.
19a
199070C2
SUPPORT
Shoe Center Divider
1шт.
19b
145458
SERRATED NUT,5/16"-18 GR 5 ZND
Nut 5/16-18 GR5
2шт.
19c
450-73116
SERRATED SCREW,5/16 x 1" SPL ZND
Screw Serrated 5/16 x 1.0 SPL ZND
2шт.
20
180040C1
BOLT,Hex, 1/2" - 13 x 4 1/4"
divider adjusting
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
21
199217C2
CHAIN (AG)
CHAIN, divider shield adjusting
1шт.
22
STRIP, ear corn deflector, refer to this section under ear corn deflector
1шт.
23
1306688C3
LARGE PLATE
SHIELD, gatherer drive sprocket support LH
1шт.
1306981
SCREW, 5/16 x 3/4 znp cr-recss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
24
1306689C3
LARGE PLATE
SHIELD, gatherer drive sprocket support RH
1шт.
1306981C1
SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 3/4"
5/16 x 3/4 znp cr-recss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
25
1306696C1
SUPPORT
center divider
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
26
1306922C1
ANGLE
inner gatherer tie
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
Выбрано товаров: 86
