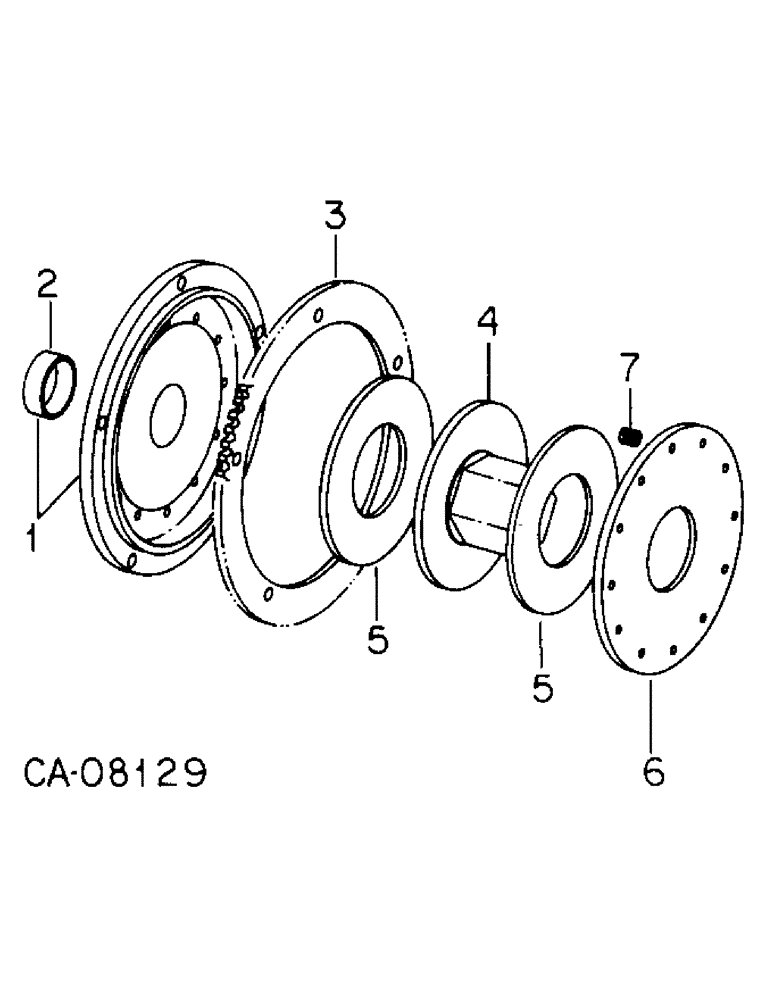

Запчасти Case IH 900 - SERIES (B-18) - AUGER SLIP CLUTCH (58) - ATTACHMENTS/HEADERS

1

1306335C91

HUB

ASSY, auger driven sprocket, includes ref no. 2

2шт.

2

1305927C1

BUSHING

auger drive sprocket hub

1шт.

3

1306333C1

SPROCKET ASSY.

SPROCKET, auger driven, 64T

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

1306334C1

HUB

auger slip clutch

1шт.

5

177964C2

FACING

auger slip clutch

2шт.

6

177963C1

PLATE

RETAINER, auger slip clutch, plate

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16 x 2-1/2 znd type 5

12шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

12шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

12шт.

7

568243R1

SPRING

auger slip clutch

12шт.
