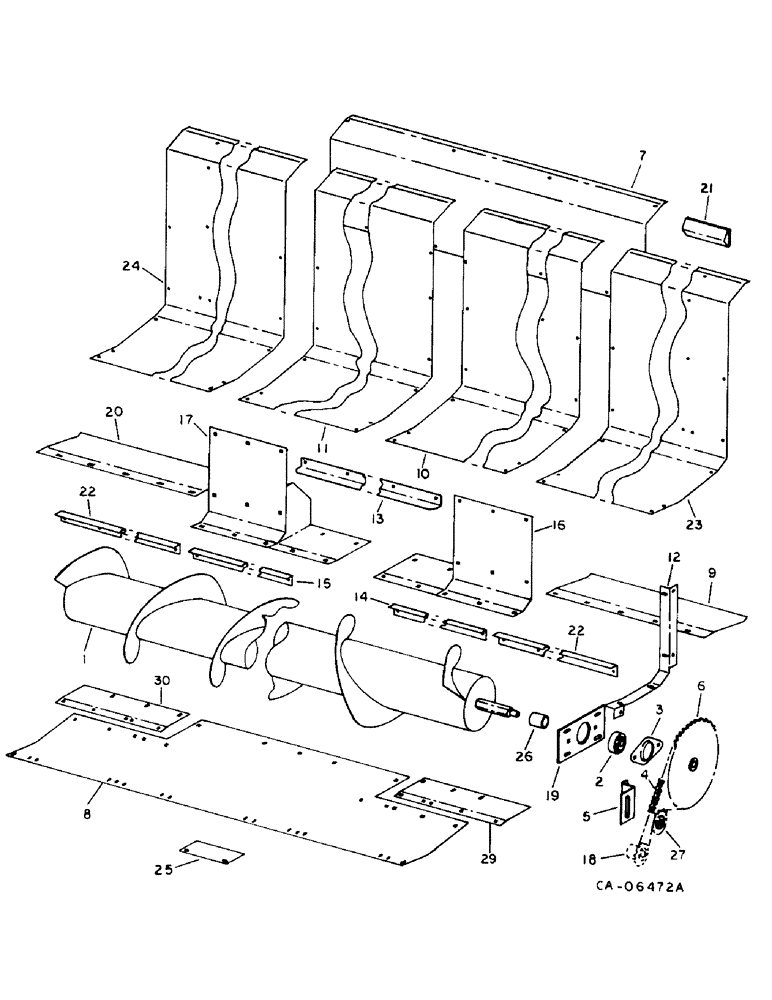

Запчасти Case IH 900 - SERIES (B-16) - AUGER, STRIPPERS, SUPPORTS AND DRIVE (58) - ATTACHMENTS/HEADERS

1

199691C2

AUGER

ASSY, 943

1шт.

1

199692C2

AUGER

ASSY, 944

1шт.

1

199693C2

AUGER

ASSY, 954

1шт.

1

199694C2

AUGER

ASSY, 963

1шт.

1

199695C2

AUGER

ASSY, 964

1шт.

1

199696C2

AUGER

ASSY, 983

1шт.

1

1306208C1

AUGER

ASSY, 984 w/36-38 in. spacing

1шт.

1

199697C1

AUGER

ASSY, 984 w/38-40 in. spacing

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, auger shaft ball

2шт.

3

599382R1

FLANGED BEARING

auger shaft bearing outer

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

4

CHAIN ASSY, auger drive, use 79 links from 10 ft roll marked 1791D, one connecting link 1310D and two offset links 1315D

1шт.

1310D

LINK

#50 single pitch connecting

1шт.

1315D

LINK

#50 single pitch offset

1шт.

5

199873C1

BRACKET

SUPPORT, auger drive tightener

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt truss-hd

1шт.

6

199729C1

SPROCKET ASSY.

SPROCKET ASSY, auger driven, 64T

1шт.

7

199749C1

SUPPORT

auger center upper

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

2шт.

8

199752C1

HOOD

SUPPORT, auger center lower, not for 954

1шт.

8

1306113C1

TROUGH

SUPPORT, auger center lower, not for 954

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

9

176161C1

CABLE EXTENSION

EXTENSION, auger trough adapter LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

10

1306255C1

SUPPORT

W/PRODUCT GRAPHIC, 1306901C1 and two product graphics 1320694C1, auger LH, 943

1шт.

10

1306257C1

TROUGH ASSY.

SUPPORT W/PRODUCT GRAPHIC, 1306901C1 and two product graphics 1320694C1, auger LH, 944

1шт.

10

1306259C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger LH, 954

1шт.

10

1306261C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger LH, 963

1шт.

10

1306263C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger LH, 984

1шт.

10

1306265C2

PROTECTION PLATE

SUPPORT W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger LH, 983

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

11

1306256C1

SUPPORT

W/PRODUCT GRAPHIC, 1306901C1 and two product graphics 1320694C1, auger RH, 943

1шт.

11

1306258C1

SUPPORT

W/PRODUCT GRAPHIC, 1306901C1 and two product graphics 1320694C1, auger RH, 944

1шт.

11

1306260C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger RH, 954

1шт.

11

1306262C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS 1306901C1 and 1320694C1, auger RH, 963

1шт.

11

1306264C1

SUPPORT

W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1 auger RH, 964 and 984

1шт.

11

1306266C2

PROTECTION PLATE

SUPPORT W/TWO EACH OF PRODUCT GRAPHICS, 1306901C1 and 1320694C1, auger RH, 983

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

12

199750C1

SUPPORT

auger trough left end

1шт.

12

199751C1

SUPPORT

auger trough right end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

13

176144C1

ANGLE

auger stripper center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

14

199776C1

ANGLE

auger stripper LH, 943

1шт.

14

199778C1

ANGLE

auger stripper LH, 944

1шт.

14

199780C1

ANGLE

auger stripper LH, 954

1шт.

14

199782C1

ANGLE

auger stripper LH, 963

1шт.

14

199784C1

ANGLE

auger stripper LH, 964

1шт.

14

199786C1

ANGLE

auger stripper LH, 983

1шт.

14

199640C2

ANGLE

auger stripper LH, 984

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

15

199777C1

ANGLE

auger stripper RH, 943

1шт.

15

199779C1

ANGLE

auger stripper RH, 944

1шт.

15

199781C1

ANGLE

auger stripper RH, 954

1шт.

15

199783C1

ANGLE

auger stripper RH, 963

1шт.

15

199785C1

ANGLE

auger stripper RH, 964

1шт.

15

199787C1

ANGLE

auger stripper RH, 983

1шт.

15

199641C2

ANGLE

auger stripper RH, 984

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

16

199753C1

SUPPORT

ASSY, auger adapter LH

1шт.

17

199754C1

SUPPORT

ASSY, auger adapter RH

1шт.

18

SPROCKET ASSY, auger drive, refer to this section under main drive and shields

1шт.

19

176338C1

FLANGED BEARING

FLANGE, auger shaft bearing inner

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

20

176162C1

CABLE EXTENSION

EXTENSION, auger adapter RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21

174732C1

REFLECTOR

amber

2шт.

22

1306229C1

ANGLE

auger stripper outer, 984 w/36-38 in. spacing

2шт.

22

199788C1

ANGLE

auger stripper outer, 984 w/38-40 in. spacing

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

23

1306216C2

SUPPORT

auger outer LH, 984 w/36-38 in. spacing

1шт.

23

199745C2

HOOD

SUPPORT, auger outer LH, 984 w/38-40 in. spacing

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

24

1306217C2

SUPPORT

auger outer RH, 984 w/36-38 in. spacing

1шт.

24

199746C2

HOOD

SUPPORT, auger outer RH, 984 w/38-40 in. spacing

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

25

1306274C2

LARGE PLATE

BAR, auger trough, not for 28 in. spacing

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp alt truss-hd

1шт.

26

199891C1

SPACER

auger shaft

1шт.

27

631905R91

SPROCKET

auger drive tightener, 17T

1шт.

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8 x 2 crg type 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 x 1.500 x .090 sq/h

1шт.

28

(Not used in this application)

1шт.

29

1306692C1

SUPPORT

feeder, auger trough LH, filler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

30

1306693C1

SUPPORT

feeder, auger trough RH, filler

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
