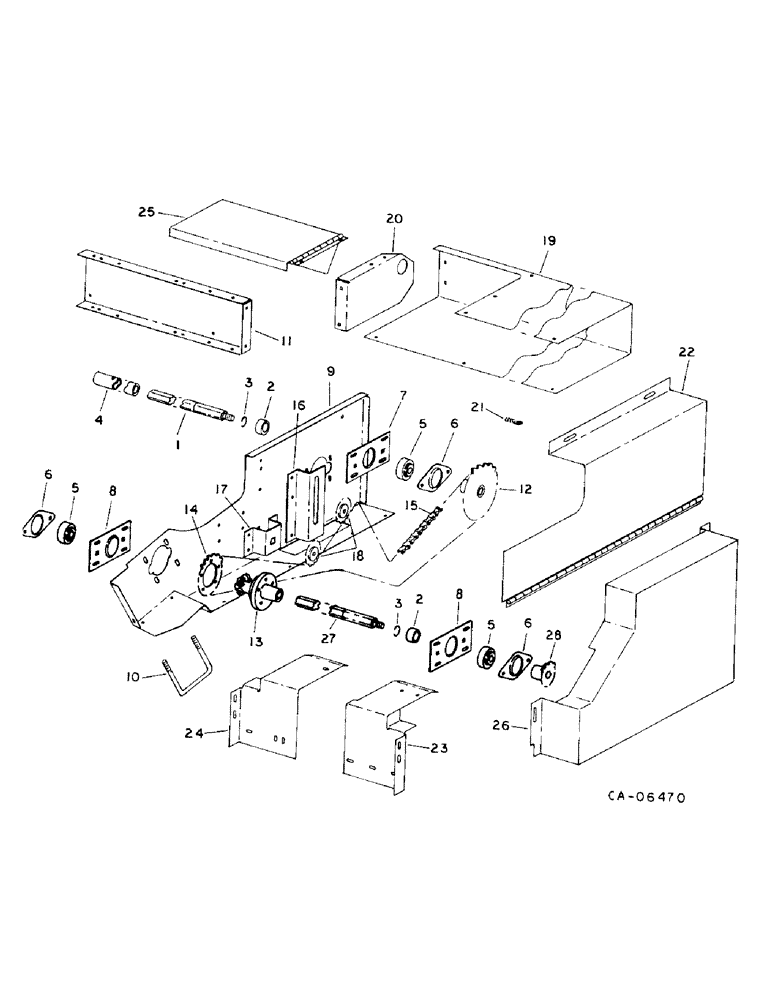

Запчасти Case IH 900 - SERIES (B-12) - MAIN DRIVE AND SHIELDING, FOR 964, 983 AND 984 (58) - ATTACHMENTS/HEADERS

1

199659C1

SHAFT

main drive rear, 22.3 in., 566.4 mm, 2 for 983

1шт.

1

199660C1

SHAFT

main drive rear, 37.3 in., 947.4 mm, 2 for 964 and 984

1шт.

2

935856R1

BUSHING

main drive shaft

4шт.

3

575186R1

SNAP RING

RING, main drive shaft

4шт.

4

176537C1

COUPLING, BREAK AWAY

HUB, main drive rear, coupling

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, main drive shaft ball

6шт.

6

599382R1

FLANGED BEARING

main drive bearing

6шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

176338C1

FLANGED BEARING

FLANGE, bearing rear

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

8

199681C1

FLANGE

bearing front

4шт.

550794R1

CARRIAGE BOLT,3/8" - 16 x 3/4", Grade 5

BOLT, 3/8 x 3/4 pln crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

9

199652C2

SUPPORT

ASSY, LH

1шт.

9

199653C2

SUPPORT

ASSY, RH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25710R1

WASHER

.531 x 1.062 x 1.34 hdn

1шт.

10

199410C1

STIRRUP,5/8" - 11 x 4.325"

U-BOLT, support

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

199682C2

SUPPORT

main drive, channel, for 983

2шт.

11

199602C1

SUPPORT

main drive, channel, for 964 and 984

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt truss-hd

1шт.

12

199647C1

SPROCKET,35T

SPROCKET ASSY, drive, 35T, standard speed

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4 NF p/t lock type 5

1шт.

21211R1

WASHER

.781 x 1.500 x .164

1шт.

12

199643C1

DRIVE SPROCKET

SPROCKET ASSY, drive, 30T, intermediate speed

2шт.

12

199649C1

SPROCKET ASSY.

SPROCKET ASSY, main drive, 26T, slow speed, parts accessory

1шт.

13

1306157C1

HUB

driven sprocket

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

1306156C1

SPROCKET ASSY.

SPROCKET, driven, 24T

2шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

CHAIN ASSY, main drive, use 101 links from 10 ft roll marked 1793D, one connecting link 1786D and two offset links 1318D

1шт.

1318D

LINK

#60H single pitch offset

1шт.

1786D

LINK

#60H single pitch connecting

1шт.

16

199678C1

SUPPORT

tightener LH

1шт.

16

199679C1

SUPPORT

tightener RH

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt truss-hd

1шт.

17

199680C1

SUPPORT

idler

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt truss-hd

1шт.

18

629972R91

DRIVE SPROCKET,15T

SPROCKET, tightener

4шт.

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8 x 2 crg type 5

1шт.

608337R1

CARRIAGE BOLT,5/8" - 11 x 3", Grade 5

BOLT, 5/8 x 3 crg type 5

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 x 1.500 x .090 sq/h

1шт.

19

199768C2

SUPPORT

rear LH, for 964 and 984

1шт.

19

199770C2

CHANNEL

SUPPORT, rear LH, for 983

1шт.

19

199769C2

SUPPORT

rear RH, for 964 and 984

1шт.

19

199771C2

CHANNEL

SUPPORT, rear RH, for 983

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

20

199225C1

SUPPORT

ASSY, shield LH

1шт.

20

199226C1

SUPPORT

ASSY, shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

21

188029C1

LATCH

shield

6шт.

22

199758C1

SHIELD

ASSY, LH

1шт.

22

199759C1

SHIELD

ASSY, RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

23

1306307C1

SHIELD

ASSY, front LH, 5 for 964, 7 for 984

1шт.

23

1306311C1

SHIELD

ASSY, front LH, 7 for 983

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

21801R1

WASHER

.281 x .734 x .056

1шт.

24

1306309C1

SHIELD

ASSY, front RH, 7 for 983

1шт.

24

1306313C1

SHIELD

ASSY, front RH, 5 for 964, 7 for 984

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

21801R1

WASHER

.281 x .734 x .056

1шт.

25

199877C2

SHIELD

ASSY, coupler LH & RH, replaces RH 199878C1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

26

1306234C1

PROTECTION PLATE

SHIELD ASSY, auger drive LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

27

1306176C1

SHAFT

main drive front RH, 83.5 in., 2120.9 mm, for 964

1шт.

27

1306221C1

SHAFT

main drive front RH, 91.5 in., 2324.1 mm, for 983

1шт.

27

1306231C1

SHAFT

main drive front RH, 116.5 in., 2959.1 mm, for 984 w/36-38 in. spacing

1шт.

27

1306223C1

SHAFT

main drive front RH, 122.5 in., 3111.5 mm, for 984 w/38-40 in. spacing

1шт.

27

1306177C1

SHAFT

main drive front LH, 85.6 in., 2174.2 mm, for 964

1шт.

27

1306222C1

SHAFT

main drive front LH, 93.6 in., 2377.4 mm, for 983

1шт.

27

1306232C1

SHAFT

main drive front RH, 118.6 in., 3012.4 mm, for 984 w/36-38 in. spacing

1шт.

27

1306224C1

SHAFT

main drive front LH, 124.6 in., 3164.8 mm, for 984 w/38-40 in. spacing

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4 NF p/t lock type 5

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

28

199727C1

DRIVE SPROCKET

SPROCKET ASSY, auger drive, 15T

1шт.
