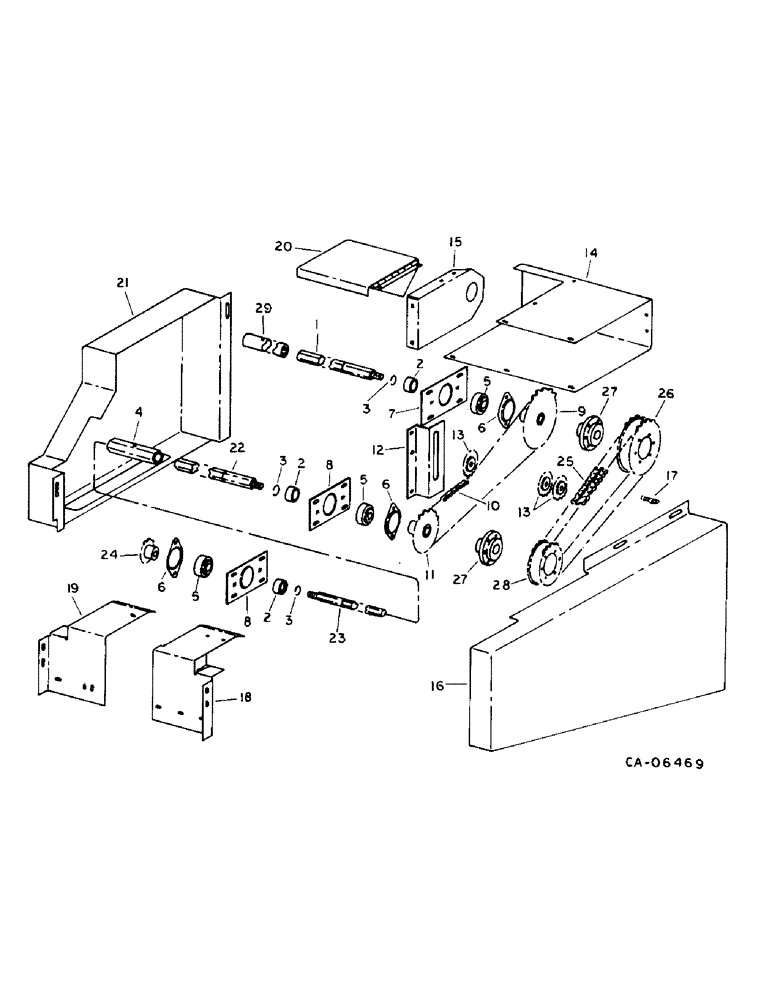

Запчасти Case IH 900 - SERIES (B-10) - MAIN DRIVE AND SHIELDING, FOR 943, 944, 954 AND 963 (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
199659C1
SHAFT
rear, 22.3 in., 566.4 mm, for 943
1шт.
1
199660C1
SHAFT
rear, 37.3 in., 947.4 mm, for 944
1шт.
1
199661C1
SHAFT
rear, 57.3 in., 1455.4 mm, for 954
1шт.
1
199662C2
SHAFT
rear, 52.3 in., 1328.4 mm, for 963
1шт.
2
935856R1
BUSHING
shaft
3шт.
3
575186R1
SNAP RING
RING, shaft snap
3шт.
4
1306158C1
SPACER
drive center, coupling
1шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1/2 x 2-1/2 type 5
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
5
156816C91
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
BEARING ASSY, shaft ball
3шт.
6
599382R1
FLANGED BEARING
bearing
3шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
7
176338C1
FLANGED BEARING
FLANGE, bearing rear
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
8
199681C1
FLANGE
bearing front
2шт.
550794R1
CARRIAGE BOLT,3/8" - 16 x 3/4", Grade 5
BOLT, 3/8 x 3/4 pln crg type 5
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
9
199647C1
SPROCKET,35T
SPROCKET ASSY, drive, 35T, for 943 and 944, standard speed
1шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4 NF p/t lock type 5
1шт.
21211R1
WASHER
.781 x 1.500 x .164
1шт.
9
199643C1
DRIVE SPROCKET
SPROCKET ASSY, drive, 30T, intermediate speed, for 943 and 944
1шт.
9
199649C1
SPROCKET ASSY.
SPROCKET ASSY, drive, 26T, slow speed, for 943 and 944, parts accessory
1шт.
10
CHAIN ASSY, main drive, for 943 and 944, use 99 links from 10 ft roll marked 1793D, one connecting link 1786D and one offset link 1318D
1шт.
1318D
LINK
#60H single pitch offset
1шт.
1786D
LINK
#60H single pitch connecting
1шт.
11
199645C1
SPROCKET ASSY.
SPROCKET ASSY, driven 24T, for 943 and 944
1шт.
12
199678C1
SUPPORT
tightener LH
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
13
629972R91
DRIVE SPROCKET,15T
SPROCKET, tightener, 15T, 1 for 943 and 944, 2 for 954 and 963
1шт.
441452R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
BOLT, 5/8 x 2 crg type 5
1шт.
608337R1
CARRIAGE BOLT,5/8" - 11 x 3", Grade 5
BOLT, 5/8 x 3 crg type 5
1шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
5/8 jam type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
21782R1
WASHER
.656 x 1.500 x .054
1шт.
21783R1
SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole
.656 x 1.500 x .090 sq/h
1шт.
14
199764C2
SUPPORT
rear, for 943
1шт.
14
199765C2
SUPPORT
rear, for 944
1шт.
14
199766C2
SUPPORT, rear, for 954
1шт.
14
199767C2
SUPPORT
rear, for 963
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
15
199225C1
SUPPORT
ASSY, shield LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
16
199519C1
CHANNEL
SHIELD ASSY, main drive, not for use w/943 w/wheel shield
1шт.
16
1306536C1
GUARD
SHIELD ASSY, main drive, for use w/943 w/wheel shields
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
17
188029C1
LATCH
shield
4шт.
18
1306311C1
SHIELD
ASSY, front LH, 3 for 943, 5 for 963
1шт.
18
1306307C1
SHIELD
ASSY, front LH, 3 for 944, 4 for 954
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
23986R1
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"
SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
21801R1
WASHER
.281 x .734 x .056
1шт.
19
1306313C1
SHIELD
ASSY, front RH, 3 for 944, 4 for 954
1шт.
19
1306309C1
SHIELD
ASSY, front RH, 3 for 943, 5 for 963
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
23986R1
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"
SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
21801R1
WASHER
.281 x .734 x .056
1шт.
20
199875C2
SHIELD
ASSY, coupler
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt truss-hd
1шт.
21
1306235C1
SHIELD
ASSY, auger drive RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt truss-hd
1шт.
22
1306218C1
DRIVE SHAFT
SHAFT, main drive front LH, 57.7 in., 1465.6 mm, for 943
1шт.
22
1306219C1
DRIVE SHAFT
SHAFT, main drive front LH, 72.7 in., 1846.6 mm, for 944
1шт.
22
1306225C1
SHAFT
main drive front LH, 112.7 in., 2862.6 mm, for 954
1шт.
22
1306220C1
SHAFT
main drive front LH, 87.7 in., 2227.6 mm, for 963
1шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4 NF p/t lock type 5
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
23
1306218C1
DRIVE SHAFT
SHAFT, main drive front RH, 57.7 in., 1465.6 mm, for 943
1шт.
23
1306219C1
DRIVE SHAFT
SHAFT, main drive front RH, 72.7 in., 1846.6 mm, for 944 and 954
1шт.
23
1306220C2
SHAFT
main drive front RH, 87.7 in., 2227.6 mm, for 963
1шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4 NF p/t lock type 5
1шт.
25712R1
WASHER
.812 x 1.500 x .179 hdn
1шт.
24
199727C1
DRIVE SPROCKET
SPROCKET ASSY, auger drive, 15T
1шт.
25
CHAIN ASSY, main drive double, 954 and 963, use 99 links from 10 ft roll marked 1355D, 1 connecting link 569206R91 and 1 offset link 1313D
1шт.
1313D
CHAIN LINK
LINK, #60H-2 single pitch offset
1шт.
569206R91
CHAIN LINK
LINK, #60H-2 single pitch connecting
1шт.
26
160121C1
SPROCKET ASSY.
SPROCKET, main drive double, 35T, 954 and 963, standard speed
1шт.
26
158418C1
DRIVE SPROCKET
SPROCKET, main drive double, 30T, 954 and 963, intermediate speed
1шт.
26
1306146C1
SPROCKET ASSY.
SPROCKET, main drive double, 26T, 954 and 963, slow speed 264 rpm parts accessory
1шт.
180157
BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5
7/16 x 2-1/2 type 5
1шт.
271501
SOCKET
NUT, 7/16 type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
27
1306358C1
HUB
main drive and driven, 954 and 963
2шт.
28
1306352C1
SPROCKET ASSY.
SPROCKET, main driven double, 24T, 954 and 963
1шт.
180157
BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5
7/16 x 2-1/2 type 5
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
29
176537C2
SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L
HUB, main drive rear
1шт.
180185
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1/2 x 2-1/2 type 5
1шт.
231-1448
NUT,1/2"-13, GB
1/2 p/t lock type 5
1шт.
Выбрано товаров: 101
