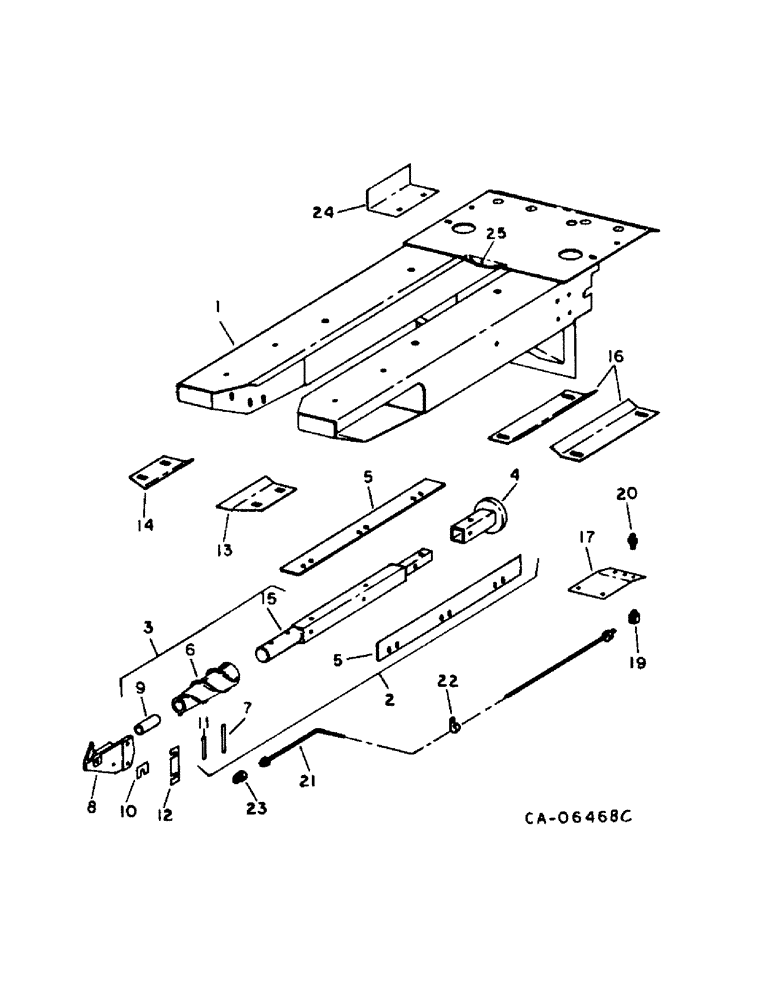

Запчасти Case IH 900 - SERIES (B-08) - STALK ROLL FRAMES, ROLLS AND SUPPORTS (58) - ATTACHMENTS/HEADERS

1

199460C1

FRAME

ASSY, stalk roll, includes ref no. 25

1шт.

199498C2

CAPSCREW,Flat Hd, 3/8" - 16 x 1"

SCREW, frame cover

4шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

8шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

8шт.

2

199313C93

ROLL

ASSY, stalk LH, includes ref nos. 3 thru 7, 9, 11 and 15

1шт.

2

199314C93

ROLL

ASSY, stalk RH, includes ref nos. 3 thru 7, 9, 11 and 15

1шт.

3

199157C93

AUGER

ASSY, stalk roll LH, includes ref nos. 6, 7, 9, 11 & 15

1шт.

3

199158C93

AUGER

ASSY, stalk roll RH, includes ref nos. 6, 7, 9, 11 & 15

1шт.

re it no. 3 - for points only nss. but if dealer wants to use 1000 series ch points on 900, see serv. bulletin s-5069 dated 9/12/86 ph 8/28/97

1шт.

4

176301C1

CONNECTION

COUPLING ASSY, stalk roll shaft

2шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 PHC type 8

4шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

4шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

8шт.

1327126C1

KNIFE,457mm L x 55.8mm W x 5.46mm Thk

SECTION, stalk roll knife LH, replaces 199162C1

4шт.

5

1327126C1

KNIFE,457mm L x 55.8mm W x 5.46mm Thk

SECTION, stalk roll knife RH, replaces 199163C1

4шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

25710R1

WASHER

17/32 x 1-1/16 x 10 ga hard

1шт.

6

POINT, stalk roll LH, not serviced separately, order 199157C93 auger assy

1шт.

6

POINT, stalk roll RH, not serviced separately, order 199158C93 auger assy

1шт.

7

176307C1

RIVET,9.53mm OD x 76.2mm L

PIN, stalk roll point

2шт.

8

199211C1

SUPPORT

stalk roll lower RH

1шт.

8

199210C1

SUPPORT

stalk roll lower LH

1шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

SCREW, 1/2 x 3/4 hex-hd flange

1шт.

9

176311C1

BUSHING,22.48mm ID x 30.28mm OD x 50.8mm L

BEARING, stalk roll support

2шт.

10

199408C1

SHIM,28mm OD x 1mm Thk

stalk roll front support

1шт.

11

156167C1

RIVET,9.53mm OD x 65mm L

PIN, stalk roll point

2шт.

12

199806C1

SHIM,28mm OD x 0.81mm Thk

stalk roll lower support

1шт.

13

199812C1

BLADE

front weed LH knife

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

14

199813C1

BLADE

front weed RH knife

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

15

199293C5

SHAFT

stalk roll, not serviced separately, order auger assy 199157C93 or 199158C93c( replaced DASHPART )

1шт.

16

180034C92

PACKAGE

KNIFE PACKAGE, rear weed, one package per row

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20803R1

WASHER

.406 x 1.000 x.105

1шт.

17

199589C1

SUPPORT

remote lube fitting

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

18

(Not used in this application)

1шт.

19

580258R1

ELBOW

remote lub

2шт.

F53473

LOCK NUT,1/8-27 NPSM

remote lub elbow, replaces 581873R1

2шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

21

199373C2

HOSE,12.7mm ID x 1473.2mm L

remote lub, 57 in. long, replaces hose 199374C1 by also order hose 1306686C1

2шт.

21

1306686C1

HOSE ASSY.,3.02mm ID x 457.2mm L

HOSE ASSY, mm, Remote Lube 3.18 mm ID x 457.20

2шт.

22

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, remote lub hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

23

294134R1

CONNECTOR, ELEC

UNION, int-ext swivel fitting

2шт.

24

199864C1

ANGLE

outer gatherer chain rear shield

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27875R1

CAPTIVE WASHER SCREW,Phillips Drive, Flat HD, 5/16" - 18 x 1"

SCREW, 5/16 x 1 PHC f/hdcr l/w

1шт.

25708R1

WASHER

.344 x .688 x .089 hdn

1шт.

25

1306207C1

BAR

stalk roll rear shield

1шт.

REF ITEM 25-P/N 1306207C1 THIS IA A TRIANGULAR PIECE OF STEEL WHICH IS WELDED TO THE FRAME TO PREVENT CORN STALKS FROM COMING THRU. REF NHE SL 028-88 PER ALLEN JANSSEN (CASE#462362). JBEDFORD 9/12/97.

1шт.

1327024C1

SHIELD

stalk roll shaft, 350 x 38 mm mylar strip, for use w/aluminum stalk roll shaft between shaft & knife section

8шт.
