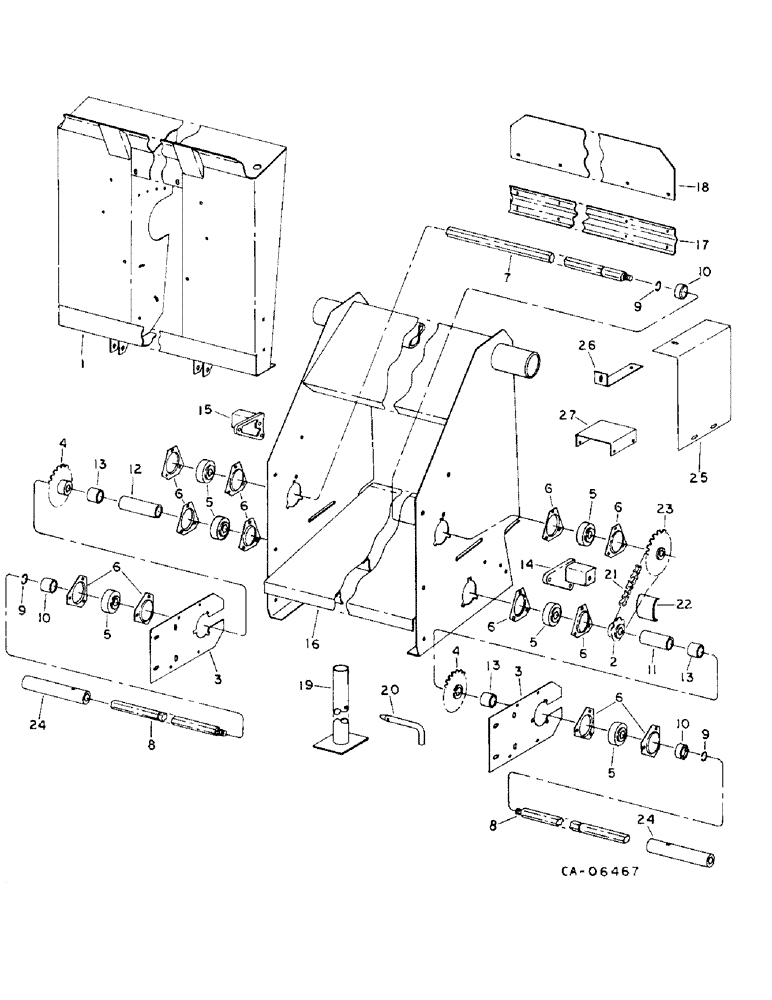

Запчасти Case IH 900 - SERIES (B-05) - FEED ADAPTER (58) - ATTACHMENTS/HEADERS

1

199126C1

FRAME

ADAPTER ASSY, feeder, for 815 combine

1шт.

1

199127C1

FRAME

ADAPTER ASSY, feeder, for 915 combine

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

26965R1

HEADED PIN,5/8" x 4"

PIN, 5/8 x 4 znd drilled std hd

1шт.

608081R1

WASHER

.656 x 1.75 x .09 znd

1шт.

2

176342C1

SPROCKET,8T

SPROCKET, beater drive, 8 teeth

1шт.

3

175915C2

SUPPORT

bearing jackshaft outer

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

1шт.

4

176340C1

DRIVE SPROCKET

SPROCKET, main drive, 24T

2шт.

5

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, main drive and beater

6шт.

6

180955C1

FLANGED BEARING,0.375"

FLANGE, main drive and beater bearing

12шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

7

199086C1

SHAFT

feeder adapter beater, for 815 combine

1шт.

7

199087C1

SHAFT

feeder adapter beater, for 915 combine

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

8

199235C1

SHAFT

feeder adapter, for 815 combine

2шт.

8

199089C2

SHAFT

feeder adapter, for 915 combine

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

25712R1

WASHER

.812 x 1.500 x .179 hdn

1шт.

21779R1

WASHER

1.34 x 2.0 x .105 znd

1шт.

9

575186R1

SNAP RING

RING, main drive and beater shaft

3шт.

10

935856R1

BUSHING

SPACER, main drive and beater shaft

3шт.

11

199080C1

SPACER

main drive shaft LH, for 815 combine

1шт.

11

199081C1

SPACER

main drive shaft LH, for 915 combine

1шт.

12

199098C1

SPACER

main drive shaft RH, for 815 combine

1шт.

12

199099C1

SPACER

main drive shaft RH, for 915 combine

1шт.

13

210337C1

SPACER

main drive shaft, for 815 combine

4шт.

14

165486C1

SUPPORT

feeder adapter LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2 x 4-1/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

165487C1

SUPPORT

feeder adapter RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2 x 4-1/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

199074C1

FEEDER

SIDE ASSY, feeder adapter beater, for 815 combine

1шт.

16

199075C1

ADAPTER

SIDE ASSY, feeder adapter beater, for 915 combine

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

24871R1

BOLT,Hex, 5/8" - 11 x 1", Gr 8

5/8 x 1 PHC type 8

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

1шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC hdn

1шт.

17

199082C1

STIFFENER

REINFORCEMENT, adapter beater, for 815 combine

2шт.

17

199083C1

STIFFENER

REINFORCEMENT, adapter beater, for 915 combine

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD hex torque lock

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

18

199084C2

STRIP

BAT, feeder adapter beater, for 815 combine

2шт.

18

199085C2

LARGE PLATE

BAT, feeder adapter beater, for 915 combine

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD hex torque lock

1шт.

25709R1

WASHER

.406 x .812 x .089 hdn

1шт.

19

199140C1

STAND

ASSY

2шт.

20

589584R1

PIN

stand

2шт.

517843R1

COTTER PIN

PIN, 3/16 quick attach cotter

1шт.

21

CHAIN ASSY, adapter beater drive, use 27 links from 10 ft roll marked 569089R91, 2 offset links 456929R91 & 1 connecting link 587372R91

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

2шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.

22

176343C1

TENSIONER

BLOCK, adapter beater drive tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

199123C1

SPROCKET ASSY.

SPROCKET ASSY, beater drive, 31T

1шт.

24

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, main drive rear

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert hex

1шт.

25

199289C1

SUPPORT

beater drive

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

26

199288C1

SUPPORT

beater drive

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

199290C1

CHANNEL

beater drive shield, for 815 combine

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
