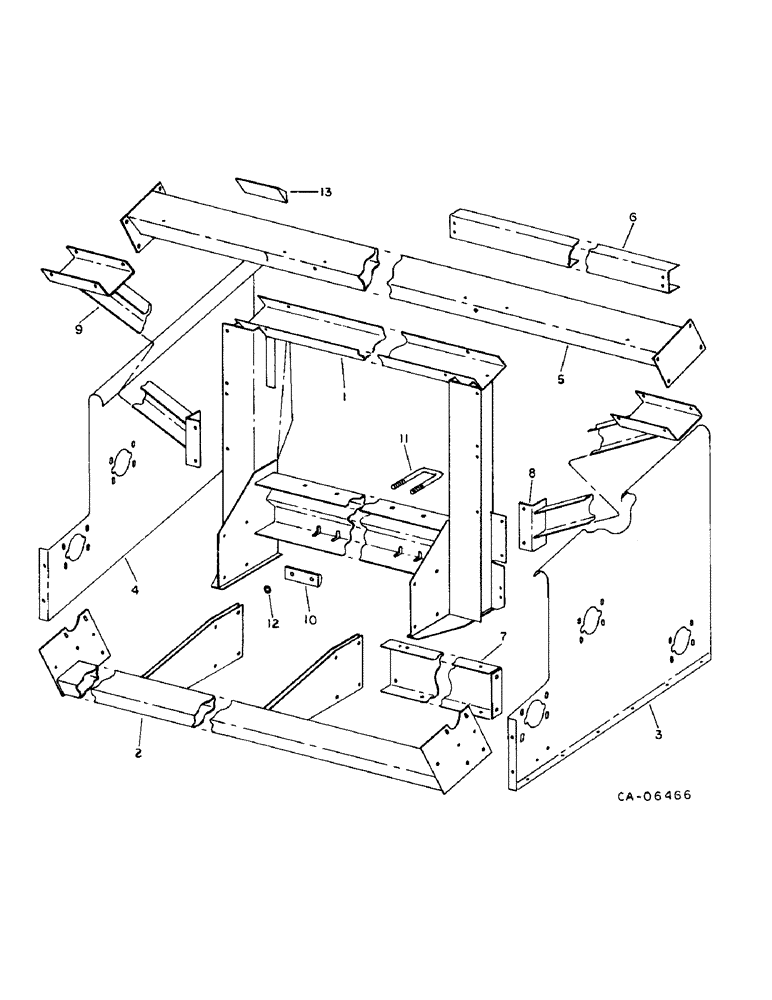

Запчасти Case IH 900 - SERIES (B-03) - MAIN FRAME AND SUPPORTS 943, 944, 954, 963, 964, 983 AND 984 CORN HEADS (58) - ATTACHMENTS/HEADERS

1

176029C3

FRAME

ASSY, main

1шт.

2

199577C1

SUPPORT TUBE

TUBE ASSY, main frame lower, 943

1шт.

2

199578C1

SUPPORT TUBE

TUBE ASSY, main frame lower, 944

1шт.

2

199579C1

SUPPORT TUBE

TUBE ASSY, main frame lower, 954

1шт.

2

199580C1

SUPPORT TUBE

TUBE ASSY, main frame lower, 963

1шт.

2

199581C1

TUBE

ASSY, main frame lower, 964

1шт.

2

199582C1

TUBE

ASSY, main frame lower, 983

1шт.

2

1306212C2

TUBE,7238, 259 mm Length

ASSY, main frame lower, 984 w/36-38 in. spacing

1шт.

2

199583C2

TUBE

ASSY, main frame lower, 984 w/38-40 in. spacing

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

8шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

8шт.

3

199792C3

SUPPORT

main frame end LH, 943, 944, 954 and 963

1шт.

3

199565C2

SUPPORT

main frame end LH, 964

1шт.

3

1306737C1

PROTECTION PLATE

SUPPORT, main frame end LH, 983

1шт.

3

199563C1

SUPPORT

main frame end LH, 984

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

7шт.

4

199564C1

SUPPORT

main frame end RH, 984

1шт.

4

1306738C1

SUPPORT

main frame end RH, 943, 944, 954, 963 and 984

1шт.

4

199566C2

SUPPORT

main frame end RH, 964

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

7шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

7шт.

5

199612C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 943

1шт.

5

199613C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 944

1шт.

5

199614C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 954

1шт.

5

199615C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 963

1шт.

5

199616C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 964

1шт.

5

199617C1

SUPPORT TUBE

TUBE ASSY, main frame upper, 983

1шт.

5

1306214C2

SUPPORT TUBE,7238 mm Length

TUBE ASSY, main frame upper, 984 w/36-38 in. spacing

1шт.

5

199618C2

SUPPORT

ASSY, main frame upper, 984 w/38-40 in. spacing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5

4шт.

6

199605C1

CHANNEL

main frame support lower, 964

2шт.

6

199607C1

CHANNEL

main frame support lower, 983

2шт.

6

1306206C2

CHANNEL

main frame support lower, 984 w/36-38 in. spacing

2шт.

6

199608C2

CHANNEL

main frame support lower, 984 w/38-40 in. spacing

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

7

199682C2

SUPPORT

main frame end, 943

1шт.

7

199602C1

SUPPORT

main frame end, 944

1шт.

7

199603C3

SUPPORT

main frame end, 954

1шт.

7

199604C3

SUPPORT

main frame end, 963

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt truss-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

8

176070C1

SUPPORT

ASSY, main frame rear LH, 964 and 983

1шт.

8

199103C1

SUPPORT

ASSY, main frame rear LH, 984

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5

2шт.

9

176071C1

SUPPORT

ASSY, main frame rear RH, 964 and 983

1шт.

9

199104C1

SUPPORT

ASSY, main frame rear RH, 984

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5

2шт.

10

177140C1

BAR

feeder latch u-bolt

2шт.

11

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

12

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

13

175311C1

REFLECTOR

red

2шт.
