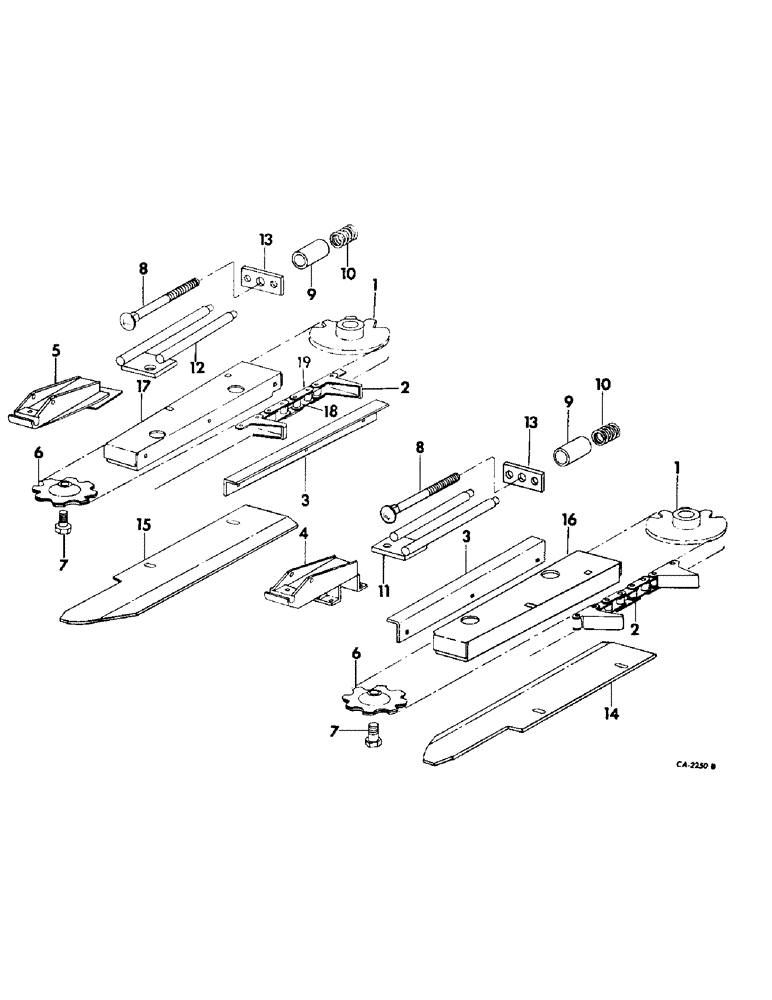

Запчасти Case IH 800 - SERIES (A-08) - GATHERER AND GATHERER CONVEYOR (58) - ATTACHMENTS/HEADERS

1

176278C2

DRIVE SPROCKET

SPROCKET, gatherer drive, 10 T

2шт.

454894R1

LOCK PIN,7/32" x 1 3/4", Slotted

Pin, 7/32" x 1 3/4", Slotted

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

1

B94733

KIT

iNCL 1A-1C DRIVE SPROCKET KIT - 800 CH,

1шт.

1a

176278C2

DRIVE SPROCKET

SPROCKET

1шт.

1b

87023162

PIN,9.53mm OD x 44.45mm L

PIN, COILED 3/8 X 1 - 3/4

1шт.

1c

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

PIN, SLOTTED 7/32 X 1 - 3/4

1шт.

1

B94541

KIT

CORN HEAD REP'R KIT-DELUXE 800, INCLUDES 1A - 1M

1шт.

1a

176278C2

DRIVE SPROCKET

SPROCKET

2шт.

1b

176279C91

CHAIN,1987.3mm L

CONVEYOR ASSY, GATHERER CHAIN

2шт.

1c

176283C91

DRIVE SPROCKET

SPROCKET, GATHERER CHAIN

2шт.

1d

176284C1

BOLT,Hex, 5/8" - 11 x 2 1/4"

BOLT, GATHERER IDLER SPROCKET

2шт.

1e

176304C2

KNIFE ASSY,457.2mm L x 71.12mm W x 5.46mm Thk

SECTION, S

8шт.

1f

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

BOLT

4шт.

1g

329-108

NUT,1/2"-13, G8

NUT, HEX 1/2 - 13 GR 8

4шт.

1h

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

BOLT, 1/2 - 20 X 1 FULL GR 5

16шт.

1i

86632556

JAM NUT,Jam, 5/8"-11, G5

NUT, JAM 5/8 - -11 GR 5

2шт.

1j

87023162

PIN,9.53mm OD x 44.45mm L

PIN, COILED 3/8 X 1 - 3/4 HVY

2шт.

1k

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

PIN, SLOTTED 7/32 X 1 - 3/4 PLN

2шт.

1l

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCKED REG 5/8 0.634 CST

2шт.

1m

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

WASHER, 0.531 X 1 .062X0.134 HTS ZND HDN

24шт.

2

176279C91

CHAIN,1987.3mm L

CONVEYOR ASSY, gatherer chain

2шт.

3

176280C1

ANGLE

GUIDE, gatherer chain

2шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

BOLT, 5/16 x 3/4 znd no. 3 plow

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

4

176281C3

BRACKET

SUPPORT, gatherer idler LH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT, 1/2 x 1-1/4 znd no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

176282C3

SUPPORT ASSY.

SUPPORT, gatherer idler RH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT, 1/2 z 1-1/4 znd no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

176283C91

DRIVE SPROCKET

SPROCKET, gatherer idler, 8 T

2шт.

176283C91B

IDLER

SPROCKET IDLER - BULK NON PLATED

1шт.

6

B94739

KIT

IDLER SPROCKET KIT-800-1000, INCLUDES 6A - 6D

1шт.

6a

176283C91

DRIVE SPROCKET

SPROCKET, GATHERER IDLER

1шт.

6b

176284C1

BOLT,Hex, 5/8" - 11 x 2 1/4"

BOLT, GATHER IDLER SPROCKET

1шт.

6c

86632556

JAM NUT,Jam, 5/8"-11, G5

NUT, JAM 5/8 - 11 GR 5

1шт.

6d

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK REG 5/8 0.63 CAST ZND

1шт.

7

176284C1

BOLT,Hex, 5/8" - 11 x 2 1/4"

gatherer idler sprocket

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 znd hex. jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

176285C1

BOLT,Sq Nk, 5/8" - 11 x 9"

gatherer idler adj

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 11 ga

1шт.

9

199829C1

BUSHING

SPACER, gatherer adj spring, also required 1306150C1 spring

1шт.

10

1306150C1

SPRING

gatherer idler adj, also required 199829C1 spacer

2шт.

11

176286C2

SUPPORT ASSY.

BRACKET ASSY, gatherer idler adj LH

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

12

176287C2

SUPPORT ASSY.

BRACKET ASSY, gatherer idler adj RH

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

13

176290C1

PLATE

gatherer adj spring

2шт.

14

176291C1

GUARD

SHIELD, stalk roll LH

1шт.

15

176292C1

GUARD

SHIELD, stalk roll RH

1шт.

16

176293C2

BRACKET

SUPPORT ASSY, gatherer chain guide LH

1шт.

Ref# 16 - spacer p/n# for bolts are 364410r1. CAM (db) 2-18-99

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap, above hardware used on outer gatherer only

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

176294C2

SUPPORT

ASSY, gatherer chain guide RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap, above hardware used on outer gatherer only

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 hdn

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18

199072C1

LINK,19.94mm Pitch

conveyor connecting

1шт.

19

199073C1

LINK,Chain, 41.4mm Pitch

conveyor roller

1шт.

20

B95214

KIT

CORNHEAD REAPIR KIT, INCLUDES 20A - 20J

1шт.

20a

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

SPECIAL KEY

2шт.

20b

176279C91

CHAIN,1987.3mm L

CONVEYOR ASSY. GATHERING CHAIN

2шт.

20c

176283C91

DRIVE SPROCKET

SPROCKET, GATHER IDLER

2шт.

20d

176284C1

BOLT,Hex, 5/8" - 11 x 2 1/4"

BOLT, GATHERER IDLER SPROCKET

2шт.

20e

199497C1

DRIVE SPROCKET

SPROCKET, GATHERER DRIVE

2шт.

20f

85700693

NUT,5/8" - 11, Gr C

NUT, PREV TORQ ALL MTL 5/8 - 11 GR C

2шт.

20g

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

WASHER

2шт.

20h

86632556

JAM NUT,Jam, 5/8"-11, G5

NUT, JAM 5/8 - 11 GR 5

2шт.

20i

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK REG 5/8 0.634 CST

2шт.

20j

937158R2

RING, SNAP

HOSE, TUBE SWIVEL LUB 22 IN.

2шт.
