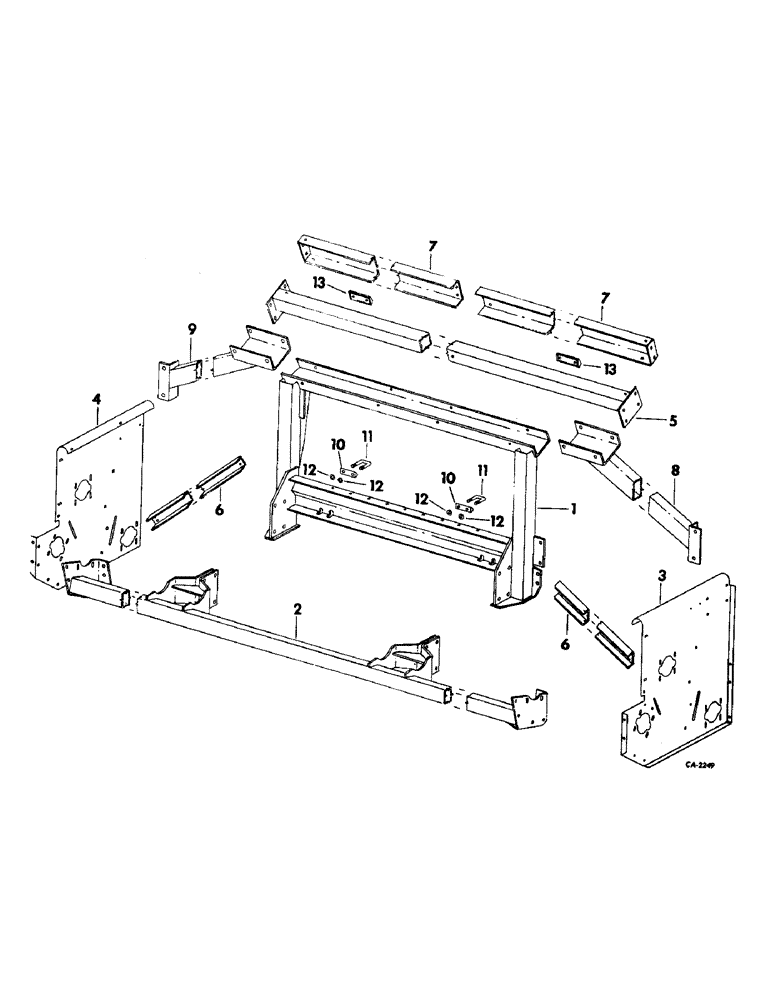

Запчасти Case IH 800 - SERIES (A-04) - MAIN FRAME AND SUPPORTS, 843, 844, 853, 854, 863, 864, 873, 874, 883, 884 CORN HEADS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
176029C3
FRAME
ASSY, main
1шт.
2
178652C1
TUBE ASSY, main frame lower, 843CH
1шт.
2
199469C1
SUPPORT TUBE
TUBE ASSY, main frame lower, 844CH
1шт.
2
176038C1
TUBE ASSY, main frame lower, 853CH
1шт.
2
176406C1
TUBE ASSY, main frame lower, 854CH
1шт.
2
176043C1
TUBE,167" Length
ASSY, main frame lower, 863CH
1шт.
2
176050C1
TUBE ASSY, main frame lower, 864CH
1шт.
2
179517C1
TUBE ASSY, main frame lower, 873CH
1шт.
2
179523C1
TUBE ASSY, main frame lower, 874CH
1шт.
2
176052C1
TUBE
ASSY, main frame lower, 883CH
1шт.
2
199223C1
SUPPORT ASSY, main frame lower, 884CH
1шт.
21434R1
NUT,5/8"-11, G8
5/8 znd hex.
1шт.
469805R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5/8 x 2 znd hex-hd cap
1шт.
3
176011C3
SECTION, main frame end LH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
4
176002C1
SHIELD
SECTION, main frame end RH, 843 and 844CH
1шт.
4
176012C3
SECTION, main frame end RH, 853, 854, 863, 864, 873, 874, 883 and 884CH
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
5
178653C1
TUBE ASSY, main frame upper, 843CH
1шт.
5
176054C1
TUBE ASSY, main frame upper, 844 and 853CH
1шт.
5
176409C1
TUBE ASSY, main frame upper, 854CH
1шт.
5
176057C1
TUBE ASSY, main frame upper, 863CH
1шт.
5
176059C1
TUBE ASSY, main frame upper, 864CH
1шт.
5
179519C1
TUBE ASSY, main frame upper, 873CH
1шт.
5
179525C1
TUBE ASSY, main framr upper, 874CH
1шт.
5
176061C1
TUBE ASSY, main frame upper, 883CH
1шт.
5
199204C1
SUPPORT ASSY, main frame upper, 884CH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
20546R1
SCREW,Hex, 1/2"-13 x 6", G5
1/2 x 6 znd hex-hd cap
1шт.
6
176064C1
CHANNEL, main frame support lower, 864CH
2шт.
6
179521C1
CHANNEL, main frame support lower, 873CH
2шт.
6
179527C1
CHANNEL, main frame support lower, 874CH
2шт.
6
176065C1
CHANNEL, main frame support lower, 883CH
2шт.
6
199207C1
CHANNEL, main frame support lower, 884CH
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2 x 1-1/4 hex-hd cap
1шт.
7
178654C2
BRACE, main frame end, 843CH
2шт.
7
176066C2
SUPPORT, main frame end, 844 and 853CH
2шт.
7
176408C2
SUPPORT, main frame end, 854CH
2шт.
7
176067C2
CHANNEL
SUPPORT, main frame end, 863CH
2шт.
7
176068C2
SUPPORT, main frame end, 864CH
2шт.
7
179522C1
BRACE, main frame end, 873CH
2шт.
7
179528C2
BRACE, main frame end, 874CH
2шт.
7
176069C2
BRACE, main frame end, 883CH
2шт.
7
199206C1
SUPPORT
main frame end, 884CH
2шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
1/2 znd hex.
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2 x 1-1/4 hex-hd cap
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
8
176070C1
SUPPORT
ASSY, main frame rear LH, 864, 873, 874 and 883CH
1шт.
8
199103C1
SUPPORT
ASSY, main frame rear LH, 884CH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
20546R1
SCREW,Hex, 1/2"-13 x 6", G5
1/2 x 6 znd hex-hd cap
1шт.
9
176071C1
SUPPORT
ASSY, main frame rear RH, 864, 873, 874 and 833CH
1шт.
9
199104C1
SUPPORT
ASSY, main frame rear RH, 884CH
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
20546R1
SCREW,Hex, 1/2"-13 x 6", G5
1/2 x 6 znd hex-hd cap
1шт.
10
177140C1
BAR
feeder latch u-bolt
2шт.
11
177134C3
U-BOLT,5/8" - 11 x 2.18" W x 4.60" L
feeder latch
2шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
1шт.
12
155960C1
BELLEVILLE WASHER
u-bolt spring steel
8шт.
13
175311C1
REFLECTOR
red
2шт.
