(A-03) - MAIN FRAME, 824, 833 AND 834 CORN HEADS

Запчасти Case IH 800 - SERIES (A-03) - MAIN FRAME, 824, 833 AND 834 CORN HEADS (58) - ATTACHMENTS/HEADERS

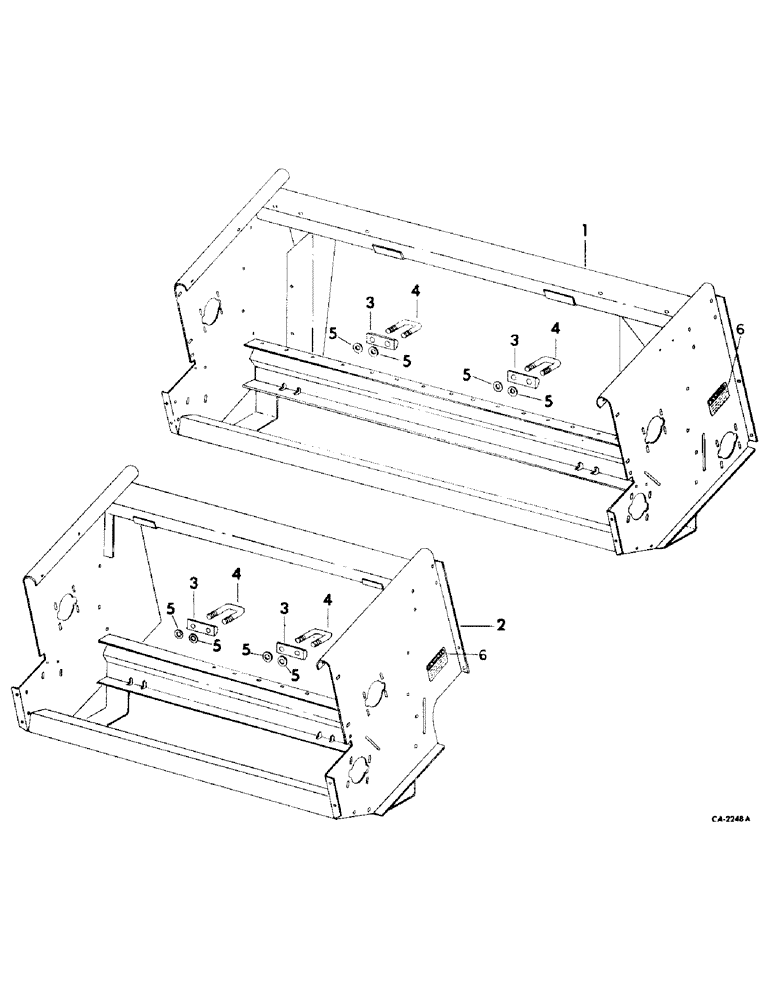

Схема запчастей Case IH 800 - SERIES - (A-03) - MAIN FRAME, 824, 833 AND 834 CORN HEADS (58) - ATTACHMENTS/HEADERS
5
5
5
2
5
5
4
3
5
4
5
4
6
1
4
3
6
3
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

199401C1

FRAME ASSY, main, 833CH

1шт.

1

199402C1

FRAME ASSY, main, 834CH, includes ref. no. 6

1шт.

2

199400C1

FRAME

ASSY, main, 824CH, includes ref. no. 6

1шт.

3

177140C1

BAR

feeder latch u-bolt

2шт.

4

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

5

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

6

176977C1

PRODUCT GRAPHIC

danger

2шт.
