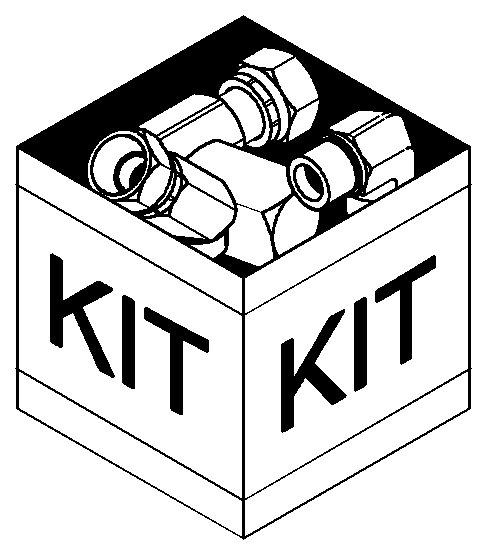

Запчасти Case IH 800 - SERIES (B-32) - KIT DELUXE REPAIR CIH 800 (58) - ATTACHMENTS/HEADERS

1

B94541

KIT

Incl 2 - 14

1шт.

2

176278C2

DRIVE SPROCKET

2шт.

3

176279C91

CHAIN,1987.3mm L

2шт.

4

47665065

BRACKET

2шт.

5

176284C1

BOLT,Hex, 5/8" - 11 x 2 1/4"

2шт.

6

176304C2

KNIFE ASSY,457.2mm L x 71.12mm W x 5.46mm Thk

8шт.

7

87632743

BOLT

4шт.

8

329-108

NUT,1/2"-13, G8

4шт.

9

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

16шт.

10

86632556

JAM NUT,Jam, 5/8"-11, G5

2шт.

11

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

12

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

13

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

24шт.
