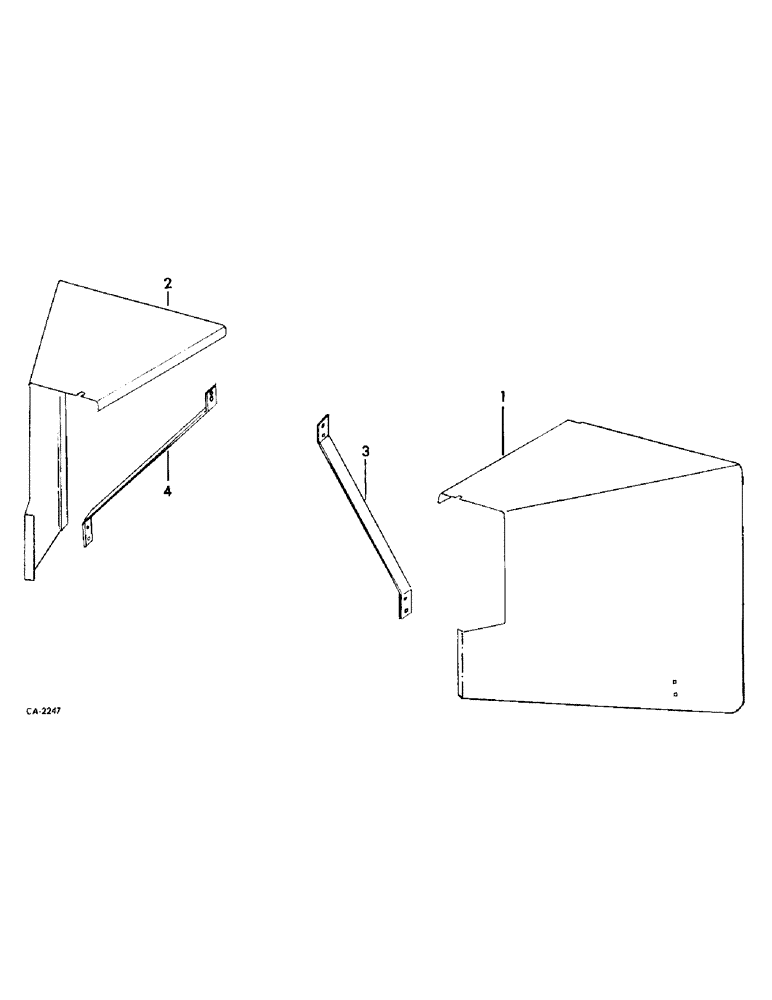

Запчасти Case IH 800 - SERIES (A-35) - WHEEL SHIELDS, 834 AND 843CH, FOR COMBINES W/108 OR 120 INCH TREAD (58) - ATTACHMENTS/HEADERS

1

176255C1

SHIELD ASSY, wheel LH, 843CH

1шт.

1

176485C1

SHIELD ASSY, wheel LH, 834CH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

2

176256C1

SHIELD ASSY, wheel RH, 843CH

1шт.

2

176486C1

SHIELD ASSY, wheel RH, 834CH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

3

176263C1

BRACKET

SUPPORT, wheel shield upper LH, 843CH

1шт.

3

176493C1

SUPPORT, wheel shield upper LH, 834CH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

1шт.

4

176264C1

BRACKET

SUPPORT, wheel shield upper RH, 843CH

1шт.

4

176494C1

SUPPORT, wheel shield upper RH, 834CH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

1шт.
