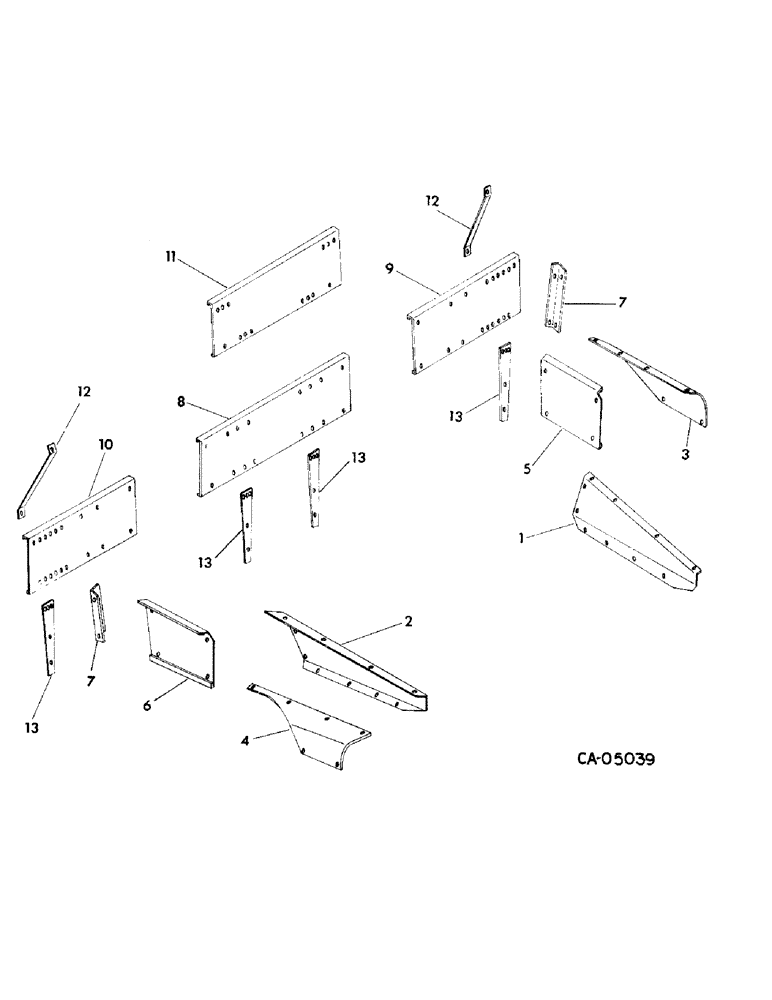

Запчасти Case IH 800 - SERIES (A-32) - GATHERER SIDE AND REAR EXTENSIONS (58) - ATTACHMENTS/HEADERS

1

199109C1

SUPPORT

side front inner RH, serial no. 26000 and below

1шт.

1

199301C1

SUPPORT

side front inner LH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

199110C1

SUPPORT

side front inner RH, serial no. 26000 and below

1шт.

2

199302C1

SUPPORT

side front inner RH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

199111C1

SUPPORT

side front outer LH, serial no. 26000 and below

1шт.

3

199303C1

SUPPORT

side front outer LH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

157523

SCREW

5/16 x 3/4 znp o/hdcr mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

4

199112C1

SUPPORT

side front outer RH, serial no. 26000 and below

1шт.

4

199304C1

SUPPORT

side front outer RH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

157523

SCREW

5/16 x 3/4 znp o/hdcr mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

199113C1

SUPPORT

side rear LH, serial no. 26000 and below

1шт.

5

199305C1

SUPPORT

side rear LH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

199114C1

SUPPORT

side rear RH, serial no. 26000 and below

1шт.

6

199306C1

SUPPORT

side rear RH, serial no. 26001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

199115C1

ANGLE

side extension

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 xlt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

199116C1

SUPPORT

rear center, not for 824 and 833CH

1шт.

9

199119C1

SUPPORT

outer LH, 834, 843, 844 & 853CH

1шт.

9

199168C1

SUPPORT

outer LH, 854, 863 and 873CH

1шт.

9

199170C1

SUPPORT

outer LH, 864, 874 and 883CH

1шт.

9

199172C2

SUPPORT

outer LH, 884CH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

199120C1

SUPPORT

outer RH, 834, 843, 844 & 853CH

1шт.

10

199169C1

SUPPORT

outer RH, 854, 863 and 873CH

1шт.

10

199171C1

SUPPORT

outer RH, 864, 874 and 883CH

1шт.

10

199173C2

SUPPORT

outer RH, 884CH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

199117C1

SUPPORT, rear, 824CH

1шт.

11

199118C1

SUPPORT, rear, 833CH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

199184C1

SUPPORT

rear extension

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

199121C2

LARGE PLATE

BAR, rear extension, 2 used 824 and 833CH, 4 used 834, 844, 853, 854, 863 and 873CH, 6 used 864, 874, 883 and 884CH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
