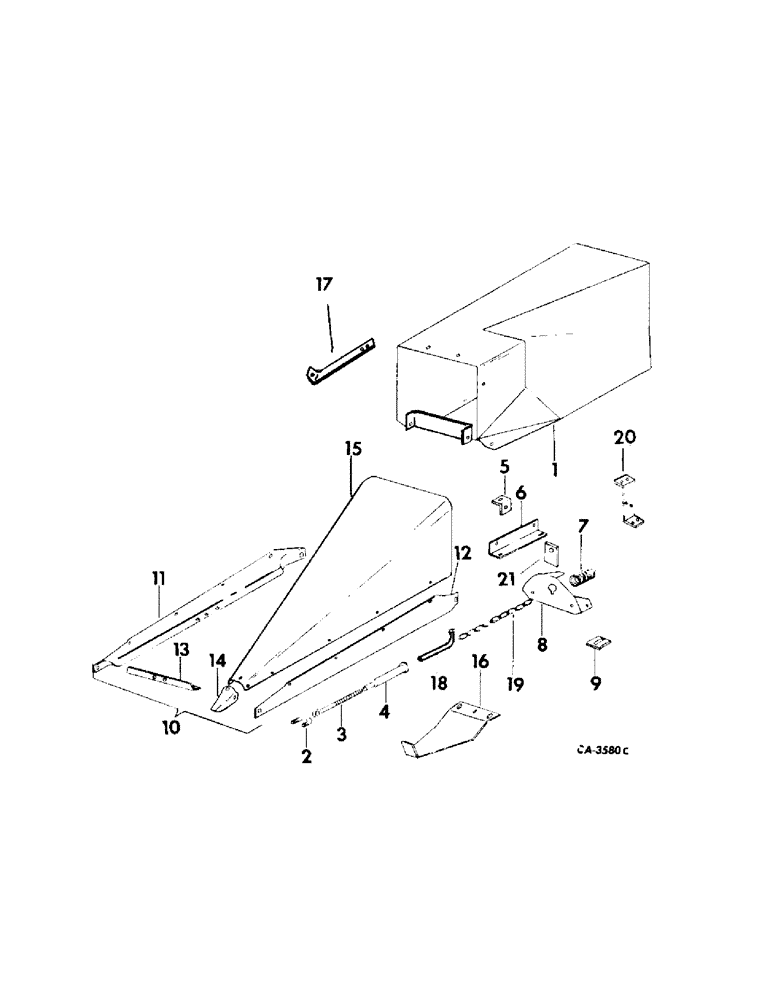

Запчасти Case IH 800 - SERIES (A-30) - OUTER GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
176191C3
SHIELD
ASSY, gatherer outer LH
1шт.
1
176192C3
SHIELD
ASSY, gatherer outer RH
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
2
18344K
BOLT,3/8" - 16 x 2 1/8", Steel
U-BOLT, divider adjusting, serial no. 23000 and below
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
3
163072C1
BOLT (SPREADER),7/16" - 14 x 12"
BOLT, divider adjusting, serial no. 23000 and below
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 znd hex
1шт.
4
163070C91
FITTING
PIPE ASSY, divider adjusting, welded assy, serial no. 23000 and below
1шт.
4
199208C1
FITTING
PIPE ASSY, divider adjusting, flared assy, serial no. 23000 and below
1шт.
21213R1
WASHER
1-1/32 x 2 x 11 ga znd
1шт.
5
176394C1
ANGLE
outer shield front, serial no. 23000 and below
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 znd hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
6
176190C1
ANGLE
outer gath shield support, not 874 and 884 CH w/36 in. rows
2шт.
6
179557C1
SUPPORT
outer gatherer shield LH, 874 and 884 CH w/36 in. rows
1шт.
6
179558C1
SUPPORT, outer gatherer shield RH, 874 and 884 CH w/36 in. rows
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
7
22147N
SPRING
divider adjustment bolt, serial no. 23000 and below
1шт.
8
176212C1
SUPPORT ASSY.
SUPPORT, outer divider pipe LH, serial no. 23000 and below
1шт.
8
176213C1
SUPPORT ASSY.
SUPPORT, outer divider pipe RH, serial no. 23000 and below
1шт.
8
180042C1
SUPPORT
outer divider chain LH, serial no. 23001 and above
1шт.
8
180043C1
SUPPORT
outer divider chain RH, serial no. 23001 and above
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 zn truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 zn flange lock
1шт.
9
176466C2
PLATE
outer gatherer shield lock
1шт.
12686R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
10
176233C93
DIVIDER ASSY.
DIVIDER ASSY, outer LH, includes ref nos. 11 thru 16
1шт.
10
176234C93
DIVIDER
ASSY, outer RH, includes ref nos. 11 thru 16
1шт.
20180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2
BOLT, 1/2 x 2 znd sq-nk crg
1шт.
18715R1
BOLT,1/2" x 5 1/2"
1/2 x 5-1/2 znd sq-nk crg
1шт.
19696R1
LOCK NUT,1/2"-13, GB
NUT, 1/2 znd nylon lock
1шт.
11
176240C1
SUPPORT
outer divider outer LH
1шт.
11
176241C1
SUPPORT
outer divider outer RH
1шт.
20180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2
BOLT, 1/2 x 2 znd sq-nk crg
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
12
176242C1
SUPPORT
outer divider inner LH
1шт.
12
176243C1
SUPPORT
outer divider inner RH
1шт.
18715R1
BOLT,1/2" x 5 1/2"
1/2 x 5-1/2 znd sq-nk crg
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 flange lock
1шт.
13
176239C3
ANGLE
BRACE, outer divider adj bolt
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
14
176237C1
POINT
outer divider
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
14
B94738
KIT
POINT OUTER - CORN HEADS, INCLUDES 14A - 14C
1шт.
14a
176237C1
POINT
POINT. PUTER DIVIDER
1шт.
14b
145458
SERRATED NUT,5/16"-18 GR 5 ZND
NUT, 5/16-18 GR 5
3шт.
14c
450-73112
SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"
SCREW, 5/16 X .75 SPL
3шт.
15
176235C2
SHEET
outer divider LH
1шт.
15
176236C2
SHEET
outer divider RH
1шт.
16
199068C2
HOLDER
SUPPORT, outer divider shoe
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt truss-hd
1шт.
17
199191C1
SUPPORT
outer gatherer shield LH, serial no. 23001 and above
1шт.
17
199192C1
SUPPORT
outer gatherer shield RH, serial no. 23001 and above
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 12 n slt truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
18
180040C1
BOLT,Hex, 1/2" - 13 x 4 1/4"
divider adjustment
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
231-1448
NUT,1/2"-13, GB
1/2 znd nylon insert hex
1шт.
19
199217C2
CHAIN (AG)
CHAIN, divider shield adj, serial no. 23001 and above
1шт.
20
199282C1
BRACE
SUPPORT, outer gatherer shield brace LH, serial no. 23001 and above
1шт.
20
199283C1
BRACE
SUPPORT, outer gatherer shield brace RH, serial no. 23001 and above
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt truss-hd
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 znd flange lock
1шт.
21
180037C1
RETAINER
outer divider chain, serial no. 23001 and above
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znd slt truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
22
B94845
KIT
SKID PAD OUTER KIT, INCLUDES 22A - 22C
1шт.
22a
199068C2
HOLDER
SUPPORT, SIDE SCREEN END RH
1шт.
22b
145458
SERRATED NUT,5/16"-18 GR 5 ZND
NUT, SERRATED 5/16 - 18 GR 5
2шт.
22c
450-73112
SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"
SCREW, XREC TRH SERRATED 5/16 X .75 SPL
2шт.
Выбрано товаров: 86
