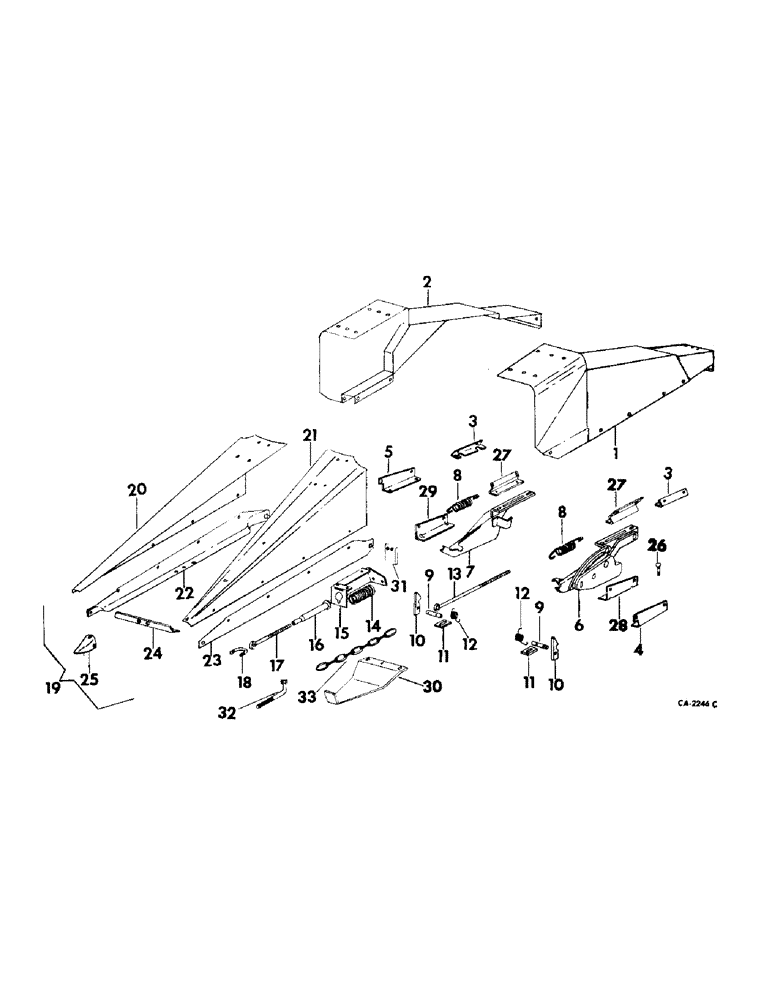

Запчасти Case IH 800 - SERIES (A-28) - CENTER GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

176163C2

SHIELD

ASSY, inner gatherer LH, 36, 38 and 40 inch rows

1шт.

1

176180C2

GUARD

SHIELD ASSY, inner gatherer LH, 28 and 30 inch rows

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 102 flange lock

1шт.

2

176164C2

SHIELD

ASSY, inner gatherer RH, 36, 38 and 40 inch rows

1шт.

2

176181C2

GUARD

SHIELD ASSY, inner gatherer RH, 28 and 30 inch rows

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

3

176217C1

ANGLE, inner gath shield hinge up

1шт.

824 serial number 12208 and below, 833 serial number 12071 and below, 834 serial number 12085 and below, 843 serial number 12303 and below, 844 serial number 13237 and below, 853 serial number 12024 and below, 854 serial number 12076 and below, 863 serial number 12322 and below, 864 serial number 12080 and below, 873 serial number 12024 and below, 874 serial number 12019 and below, 883 serial number 12092 and below, 884 serial number 30000 and below.

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

4

176219C1

ANGLE, inner gath shield hinge lower LH

1шт.

824 serial number 12208 and below, 833 serial number 12071 and below, 834 serial number 12085 and below, 843 serial number 12303 and below, 844 serial number 13237 and below, 853 serial number 12024 and below, 854 serial number 12076 and below, 863 serial number 12322 and below, 864 serial number 12080 and below, 873 serial number 12024 and below, 874 serial number 12019 and below, 883 serial number 12092 and below, 884 serial number 30000 and below.

1шт.

5

176200C1

ANGLE, inner gath shield hinge lower RH

1шт.

824 serial number 12208 and below, 833 serial number 12071 and below, 834 serial number 12085 and below, 843 serial number 12303 and below, 844 serial number 13237 and below, 853 serial number 12024 and below, 854 serial number 12076 and below, 863 serial number 12322 and below, 864 serial number 12080 and below, 873 serial number 12024 and below, 874 serial number 12019 and below, 883 serial number 12092 and below, 884 serial number 30000 and below.

1шт.

6

426487C91

HINGE

ASSY, inner gatherer shield LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

7

426488C91

HINGE

ASSY, inner gatherer shield RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

8

341941C2

SPRING

inner gatherer shield hinge

2шт.

9

176465C1

PIN

inner gatherer shield lock

2шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

176464C1

HOOK

LOCK, inner gatherer shield

2шт.

11

176216C1

PLATE

inner gatherer shield lock

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

12

176467C1

SPRING

inner gatherer shield lock LH

1шт.

12

176467C1

SPRING

inner gatherer shield lock RH

1шт.

13

199315C1

ROD

inner gatherer shield

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

14

22147N

SPRING

divider adjusting belt, serial no. 23000 and below

1шт.

15

176211C1

SUPPORT

center divider pipe, serial no. 23000 and below

1шт.

15

180038C1

SUPPORT

center divider chain, serial no. 23001 and above

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

16

163070C91

FITTING

PIPE ASSY, divider adjusting, welded assy, serial no. 23000 and below

1шт.

16

199208C1

FITTING

PIPE ASSY, divider adjusting, flared assy, serial no. 23000 and below

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga znd

1шт.

17

163072C1

BOLT (SPREADER),7/16" - 14 x 12"

BOLT, divider adjusting, serial no. 23000 and below

1шт.

271501

SOCKET

NUT, 7/16 znd hex

1шт.

18

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, divider adjusting, serial no. 23000 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

176221C94

DIVIDER ASSY.

DIVIDER ASSY, center, 36, 38 and 40 inch rows, includes ref nos. 20 thru 25 and 30

1шт.

19

176228C94

DIVIDER

ASSY, center, 28 and 30 inch rows, includes ref nos. 20 thru 25 and 30

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

20

176223C3

SUPPORT

SHEET, center divider RH, 36, 38 and 40 inch rows

1шт.

20

176230C3

SHEET

center divider RH, 28 and 30 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

21

176222C3

SUPPORT

SHEET, center divider LH, 36, 38 and 40 inch rows

1шт.

21

176229C3

SHEET

center divider LH, 28 and 30 inch rows

1шт.

22

176225C2

SUPPORT

center dividers side RH, 36, 38 and 40 inch rows

1шт.

22

176232C2

SUPPORT

center divider side RH, 28 and 30 inch rows

1шт.

18715R1

BOLT,1/2" x 5 1/2"

1/2 x 5-1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

23

176224C2

SUPPORT

center divider side LH, 36, 38 and 40 inch rows

1шт.

23

176231C2

SUPPORT

center divider side LH, 28 and 30 inch rows

1шт.

18715R1

BOLT,1/2" x 5 1/2"

1/2 x 5-1/2 znd sq-nk crg

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 flange lock

1шт.

24

176226C3

ANGLE

BRACE, center divider adj bolt, 36, 38 and 40 inch rows

1шт.

24

176484C3

ANGLE

BRACE, center divider adj bolt, 28 and 30 inch rows

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd flange lock

1шт.

25

176227C1

POINT

center divider

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

25

B94737

KIT

POINT INNER - CORN HEADS INCLUDES 25A-25C

1шт.

25a

176227C1

POINT

POINT CENTER DIVIDER

1шт.

25b

145458

SERRATED NUT,5/16"-18 GR 5 ZND

NUT, 5/16-18 GR5

3шт.

25c

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

SCREW, 5/16-1.0

3шт.

26

179644C1

BOLT

gatherer shield lower angle

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

27

180024C1

ANGLE

inner gatherer shield hinge upper

2шт.

824 serial number 12209 and above, 833 serial number 12072 and above, 834 serial number 12086 and above, 843 serial number 12304 and above, 844 serial number 13238 and above, 853 serial number 12025 and above, 854 serial number 12077 and above, 863 serial number 12323 and above, 864 serial number 12081 and above, 873 serial number 12025 and above, 874 serial number 12020 and above, 883 serial number 12093 and above, 884 serial number 30001 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

28

180022C1

ANGLE

inner gatherer shield hinge lower LH

1шт.

824 serial number 12209 and above, 833 serial number 12072 and above, 834 serial number 12086 and above, 843 serial number 12304 and above, 844 serial number 13238 and above, 853 serial number 12025 and above, 854 serial number 12077 and above, 863 serial number 12323 and above, 864 serial number 12081 and above, 873 serial number 12025 and above, 874 serial number 12020 and above, 883 serial number 12093 and above, 884 serial number 30001 and above

1шт.

29

180023C1

ANGLE

inner gatherer shield hinge lower RH

1шт.

824 serial number 12209 and above, 833 serial number 12072 and above, 834 serial number 12086 and above, 843 serial number 12304 and above, 844 serial number 13238 and above, 853 serial number 12025 and above, 854 serial number 12077 and above, 863 serial number 12323 and above, 864 serial number 12081 and above, 873 serial number 12025 and above, 874 serial number 12020 and above, 883 serial number 12093 and above, 884 serial number 30001 and above

1шт.

30

199069C2

SHOE (ASSY)

SUPPORT, center divider shoe, 36, 38 and 40 inch rows

1шт.

30

199070C2

SUPPORT

center divider shoe, 28 and 30 inch rows

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt truss-hd

1шт.

30

B94736

KIT

SKID PAD KIT - CH INNER 30, INCLUDES 30A-30C

1шт.

30a

199070C2

SUPPORT

SHIELD CARRAGE ROLLER LH

1шт.

30b

145458

SERRATED NUT,5/16"-18 GR 5 ZND

NUT 5/16-18 GR5

2шт.

30c

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

SCREW, 5/16-1.0

2шт.

31

180041C1

RETAINER

inner divider chain, serial no. 23001 and above

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

1шт.

32

180040C1

BOLT,Hex, 1/2" - 13 x 4 1/4"

divider adjustment, serial no. 23001 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd nylon insert

1шт.

33

199217C2

CHAIN (AG)

CHAIN, divider shield adj, serial no. 23001 and above

1шт.
