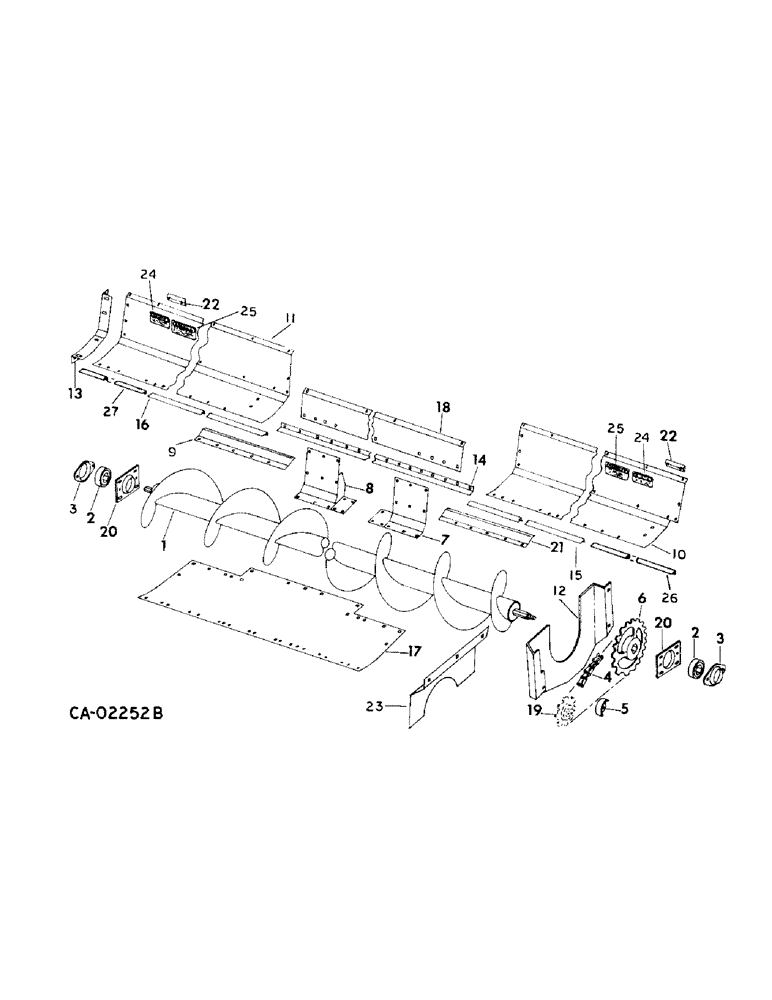

Запчасти Case IH 800 - SERIES (A-26) - AUGERS, STRIPPERS, SUPPORTS AND DRIVE, 843, 844, 853, 863, 864, 873, 874, 883 AND 884 CORN HEADS (58) - ATTACHMENTS/HEADERS

1

176092C1

AUGER ASSY, 843CH

1шт.

1

176096C1

AUGER

ASSY, 844 and 853CH

1шт.

1

176416C1

AUGER ASSY, 854CH

1шт.

1

176100C1

AUGER

ASSY, 863CH

1шт.

1

176104C1

AUGER

ASSY, 864CH

1шт.

1

179537C1

AUGER ASSY, 873CH

1шт.

1

199312C1

AUGER ASSY, 874CH

1шт.

1

176108C1

AUGER ASSY, 883CH

1шт.

1

199196C1

AUGER ASSY, 884CH

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, auger shaft ball

2шт.

3

599382R1

FLANGED BEARING

auger shaft bearing outer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

4

CHAIN ASSY, auger drive, use 35 links from 10 ft roll marked 569089R91 and 1 connecting link 587372R91

1шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.

5

176113C1

TIGHTENER

BLOCK, auger chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

176114C1

SPROCKET ASSY.

SPROCKET, auger driven 23T

1шт.

7

176121C1

TROUGH

ASSY, auger adapter LH, not for 884CH

1шт.

7

178657C1

TROUGH

ASSY, auger adapter LH, for 884CH

1шт.

8

176122C1

TROUGH

ASSY, auger adapter RH, not for 884CH

1шт.

8

178658C1

TROUGH

ASSY, auger adapter RH, for 884CH

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

176162C1

CABLE EXTENSION

EXTENSION, auger adapter RH, not for 884CH

1шт.

9

199220C1

SUPPORT

auger center RH, for 884CH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

10

179501C1

TROUGH

ASSY, auger LH, 843CH

1шт.

10

179503C1

TROUGH

ASSY, auger LH, 844 and 853CH

1шт.

10

179505C1

TROUGH

ASSY, auger LH, 854CH

1шт.

10

179507C1

TROUGH

ASSY, auger LH, 863CH

1шт.

10

179509C1

TROUGH

ASSY, auger LH, 864CH

1шт.

10

179511C1

TROUGH ASSY, auger outer LH, 873CH

1шт.

10

179513C1

TROUGH ASSY, auger outer LH, 874CH

1шт.

179515C1

TROUGH

ASSY, auger LH, 883CH

1шт.

10

199322C2

SUPPORT

ASSY, auger LH, 884CH, includes ref nos. 24 and 25

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

11

179502C1

TROUGH

ASSY, auger RH, 843CH

1шт.

11

179504C1

TROUGH

ASSY, auger RH, 844 and 853CH

1шт.

11

179506C1

TROUGH

ASSY, auger RH, 854CH

1шт.

11

179508C1

TROUGH

ASSY, auger RH, 863CH

1шт.

11

179510C1

TROUGH

ASSY, auger RH, 864CH

1шт.

11

179512C1

TROUGH ASSY, auger outer RH, 873CH

1шт.

11

179514C1

TROUGH ASSY, auger outer RH, 874CH

1шт.

11

179516C1

TROUGH

ASSY, auger RH, 883CH

1шт.

11

199323C2

SUPPORT

ASSY, auger RH, 884CH, includes ref nos. 24 and 25

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

12

176141C1

SUPPORT ASSY.

SUPPORT, auger trough left side, not for 884CH

1шт.

12

199202C1

SUPPORT

auger trough LH, for 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

13

176142C1

SUPPORT ASSY.

SUPPORT, auger trough right side

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

14

176144C1

ANGLE

auger stripper center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

15

176151C1

ANGLE, auger stripper LH, 843CH

1шт.

15

176153C1

ANGLE, auger stripper LH, 844 & 853CH

1шт.

15

176422C1

ANGLE, auger stripper LH, 854CH

1шт.

15

176155C1

ANGLE

auger stripper LH, 863CH

1шт.

15

176157C1

ANGLE, auger stripper LH, 864CH

1шт.

15

179549C1

ANGLE, auger stripper LH, 873CH

1шт.

15

179551C1

ANGLE, auger stripper LH, 874CH

1шт.

15

176159C1

ANGLE, auger stripper LH, 883CH

1шт.

15

199793C1

ANGLE, auger stripper LH, 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

16

176152C1

ANGLE, auger stripper RH, 843CH

1шт.

16

176154C1

ANGLE, auger stripper RH, 844 & 853CH

1шт.

16

176423C1

ANGLE, auger stripper RH, 854CH

1шт.

16

176156C1

ANGLE

auger stripper RH, 863CH

1шт.

16

176158C1

ANGLE, auger stripper RH, 864CH

1шт.

16

179550C1

ANGLE, auger stripper RH, 873CH

1шт.

16

179552C1

ANGLE, auger stripper RH, 874CH

1шт.

16

176160C1

ANGLE, auger stripper RH, 883CH

1шт.

16

199794C1

ANGLE, auger stripper RH, 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

17

176118C1

TROUGH

auger center lower, not for 884CH

1шт.

17

199218C1

SUPPORT

auger center lower, for 884CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

18

176115C1

TROUGH

auger center upper

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

19

SPROCKET, auger drive, refer to main drive and shields

1шт.

20

176338C1

FLANGED BEARING

FLANGE, auger shaft brg inner

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

21

176161C1

CABLE EXTENSION

EXTENSION, auger adapter LH, not for 884CH

1шт.

21

199219C1

SUPPORT

auger adapter LH, for 884CH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

22

174732C1

REFLECTOR

amber

2шт.

23

199176C1

SUPPORT

auger sprocket, not for 884CH

1шт.

23

199203C1

SUPPORT

auger sprocket, for 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

24

199297C1

PRODUCT GRAPHIC

caution, 1 used 843, 844 and 853CH, 2 used 854, 863, 864, 873, 874, 883 and 884CH

1шт.

25

176977C1

PRODUCT GRAPHIC

danger

2шт.

26

199795C1

ANGLE

auger stripper outer LH, 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

27

199796C1

ANGLE, auger stripper outer RH, 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.
