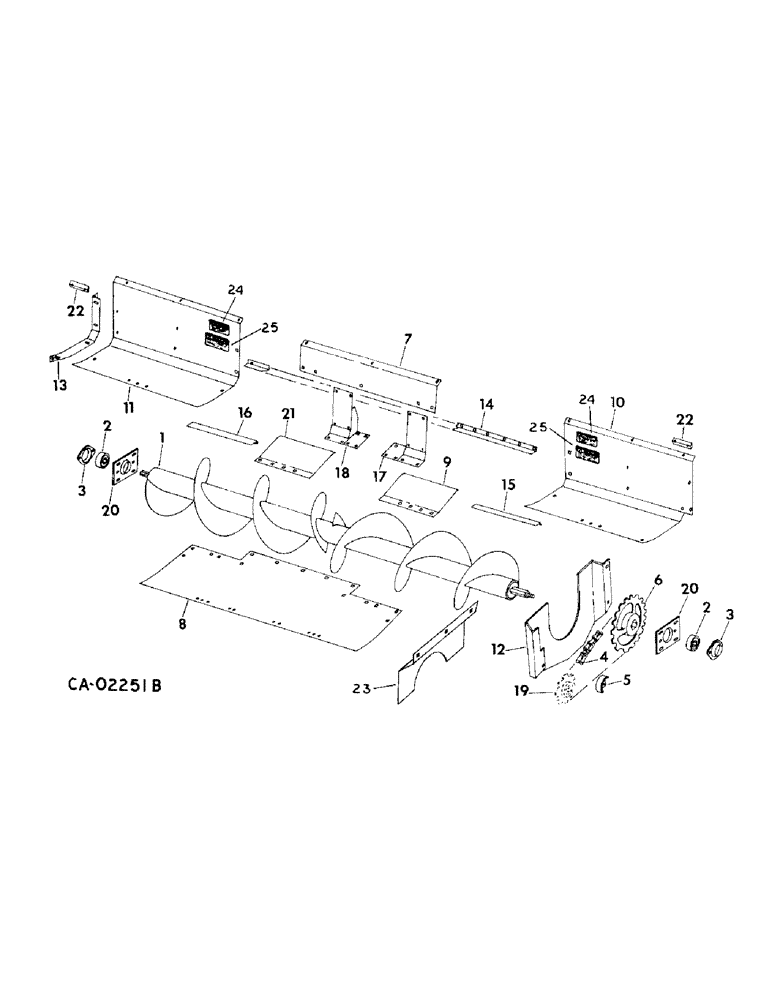

Запчасти Case IH 800 - SERIES (A-24) - AUGERS, STRIPPERS, SUPPORTS AND DRIVE, 824, 833 AND 834 CORN HEADS (58) - ATTACHMENTS/HEADERS

1

176076C1

AUGER ASSY, 824CH

1шт.

1

176084C1

AUGER ASSY, 833CH

1шт.

1

176088C1

AUGER ASSY, 834CH

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSY, auger shaft ball

2шт.

3

599382R1

FLANGED BEARING

auger shaft bearing outer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

4

CHAIN ASSY, auger drive, use 35 links from 10 ft roll marked 569089R91 and 1 connecting link 587372R91

1шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.

5

176113C1

TIGHTENER

BLOCK, auger drive chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

176114C1

SPROCKET ASSY.

SPROCKET, auger driven, 23T

1шт.

6

199298C1

SPROCKET ASSY.

SPROCKET ASSY, auger driven, 40T, optional

1шт.

7

179500C1

TROUGH ASSY, auger center upper

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

8

176117C1

TROUGH, auger center lower

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

9

178655C1

EXTENSION

auger trough adapter LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

10

176125C1

TROUGH

auger LH, 824CH

1шт.

10

176127C1

TROUGH, auger LH, 833CH

1шт.

10

176129C1

TROUGH, auger LH, 834CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

11

176126C1

TROUGH, auger RH, 824CH

1шт.

11

176126C1

TROUGH, auger RH, 833CH

1шт.

11

176130C1

TROUGH, auger RH, 834CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

1шт.

12

176141C1

SUPPORT ASSY.

SUPPORT, auger trough left side

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

13

176142C1

SUPPORT ASSY.

SUPPORT, auger trough right end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

14

176143C1

ANGLE, auger stripper center, 824CH

1шт.

14

176144C1

ANGLE

auger stripper center, 833 and 834CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

15

176145C1

ANGLE, auger stripper LH, 824CH

1шт.

15

176147C1

ANGLE, auger stripper LH, 833CH

1шт.

15

176149C1

ANGLE, auger stripper LH, 834CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

16

176146C1

ANGLE, auger stripper RH, 824CH

1шт.

16

176148C1

ANGLE, auger stripper RH, 833CH

1шт.

16

176150C1

ANGLE, auger stripper RH, 834CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

17

178657C1

TROUGH

ASSY, auger adapter LH

1шт.

18

178658C1

TROUGH

ASSY, auger adapter RH

1шт.

19

SPROCKET, auger drive, refer to main drive and shields

1шт.

20

176338C1

FLANGED BEARING

FLANGE, auger shaft bearing inner

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

21

178656C1

EXTENSION

auger adapter RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

22

174732C1

REFLECTOR

amber

2шт.

23

199176C1

SUPPORT

auger sprocket, 833 and 834CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

24

199297C1

PRODUCT GRAPHIC

caution

2шт.

25

176977C1

PRODUCT GRAPHIC

danger

2шт.
