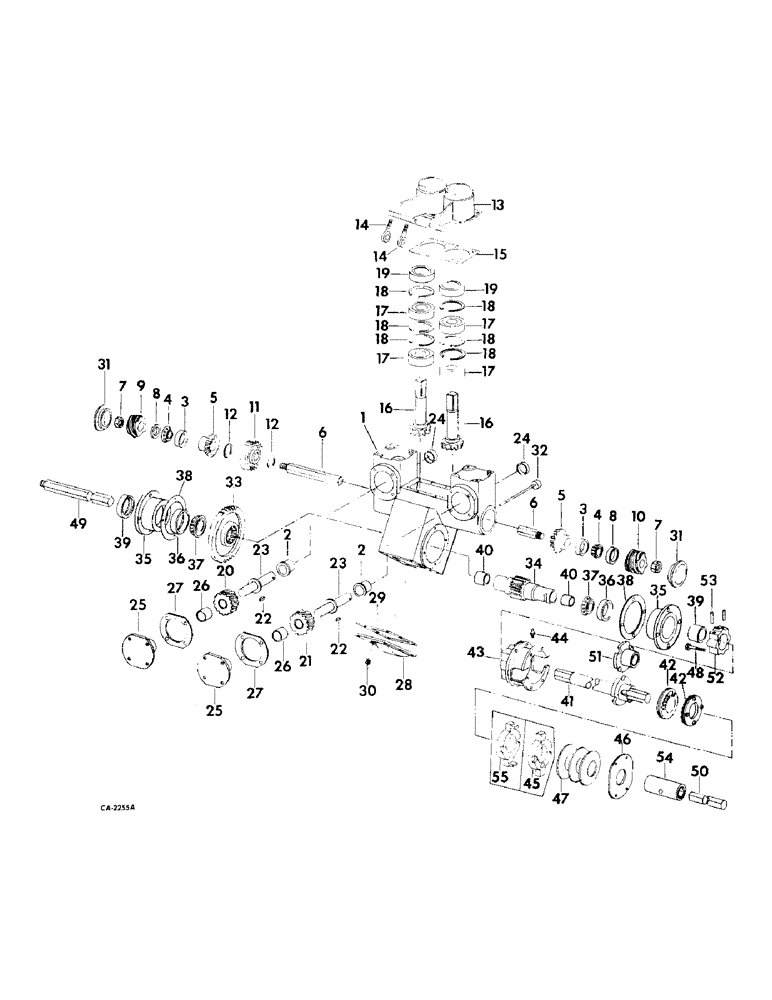

Запчасти Case IH 800 - SERIES (A-21) - STALK ROLL AND GATHERER DRIVE GEAR CASE AND SLIP CLUTCH (58) - ATTACHMENTS/HEADERS

176479C94

HOUSING

ASSY, stalk roll drive RH, includes ref nos. 1 thru 13 and 15 thru 40

1шт.

This is actually the LH according to other books.

1шт.

176480C94

HOUSING ASSY, stalk roll drive RH, includes ref nos. 1 thru 13 and 15 thru 40

1шт.

1

176355C92

HOUSING

ASSY, stalk roll drive gear, includes ref nos. 2 and 3

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

SCREW, 5/8 x 4-1/2 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

176357C1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

BEARING, gatherer drive upper shaft

2шт.

3

663558R1

BEARING CUP

CUP, stalk row drive gear brg

2шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, stalk row drive gear bearing

2шт.

5

199308C1

GEAR-SET

GEAR SET, stalk row drive, Qty [1] 16T & [1] 18T

1шт.

6

176359C1

SHAFT

stalk row driven

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

7

163307C1

JAM NUT

stalk row driven shaft

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

8

176360C1

SPACER

gatherer drive gear

2шт.

9

176361C1

PINION

GEAR, gatherer drive LH, 4T, has a R.H. spiral

1шт.

10

176362C1

PINION

GEAR, gatherer drive RH, 4T, has a L.H. spiral

1шт.

11

176363C1

GEAR

stalk row driven, 20 T

1шт.

12

21147R1

SNAP RING,#112, Ext, Crescent

Ring, Snap, , stalk row driven gear #112, Ext, Crescent

2шт.

13

176364C1

BEARING HOUSING,2.929" ID x 3.4" OD

HOUSING, stalk row drive brg

1шт.

601924C1

BOLT,3/8"

SCREW, 3/8 x 1 12 pt cap

1шт.

14

176365C1

BOLT,5/8" - 11 x 5.8"

EYEBOLT, stalk row drive gear housing

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

176366C1

GASKET

stalk row drive brg housing

1шт.

16

GEAR SET, not serviced separately, order 199308C gear set, Ref 5

1шт.

17

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, stalk row drive ball

4шт.

18

512889R1

RING

stalk row drive brg snap

6шт.

19

176368C91

PACKING RING

SEAL, stalk row driven gear oil

2шт.

20

176369C1

GEAR

gatherer drive LH, 15T

1шт.

21

176370C1

GEAR

gatherer drive RH, 15T

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

23

176371C2

SHAFT

gatherer drive

2шт.

24

381721R91

OIL SEAL

gatherer drive shaft oil

2шт.

25

199275C91

CASE

HOUSING ASSY, gatherer drive shaft, includes ref no. 26

2шт.

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

3/8 x 1 znd hex-hd flange type

1шт.

26

176374C1

BUSHING,25.58mm ID x 33.43mm OD x 31.75mm L

BEARING, gatherer drive shaft lower

2шт.

27

176375C1

GASKET,0.25mm Thk

gatherer drive shaft housing

2шт.

28

199279C1

CYLINDER END CAP

CAP, stalk row drive gear housing

1шт.

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

3/8 x 1 znd hex-hd flange type

1шт.

29

176377C2

GASKET

stalk row dr gear housing cap

1шт.

30

20958R1

PLUG,Sq Hd, 3/8"-18 NPTF

3/8-18 auto sq hd drain

1шт.

31

21280R1

PLUG,Cup, 3"

CAP, stalk row dr gear housing end

2шт.

32

176379C1

PLUG

ASSY, stalk roll gear hsg fill

1шт.

33

176381C1

GEAR

stalk row drive 39T

1шт.

34

176428C92

SHAFT

ASSY, stalk roll drive gear, includes ref no. 40

1шт.

35

199277C91

BEARING CAP,4.44" ID x 5.06" OD x 1.9"

HOUSING ASSY, stalk row drive gear shaft brg, includes ref no. 36

2шт.

459401C1

BOLT,Hex Flg, 3/8" - 16 x 1", Full Thd

3/8 x 1 znd hex-hd flange type

1шт.

36

376463C1

BEARING CUP

CUP, stalk row dr gear shaft brg

2шт.

37

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

CONE, stalk row dr gear shaft brg

2шт.

38

176385C1

GASKET

stalk row dr gear shaft brg housing

2шт.

39

176386C91

OIL SEAL,49.17mm ID x 68.38mm OD x 8.84mm Thk

stalk row dr gear shaft oil

2шт.

40

176429C1

BUSHING,33.47mm ID x 38.86mm OD x 31.75mm L

BEARING, stalk row dr gear shaft

2шт.

41

176424C1

SHAFT

ASSY, stalk row dr slip clutch

1шт.

42

168370C1

RATCHET

stalk row dr slip clutch

2шт.

43

176389C1

CASE

HOLDER, stalk row drive slip clutch

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

25784R1

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

3/8 x 4-1/4 PHC type 8

1шт.

44

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

45

176390C1

HOLDER

RETAINER, slip clutch ratchet, see note 1

1шт.

824 serial number 12208 and below, 833 serial number 12071 and below, 834 serial number 12085 and below, 843 serial number 12303 and below, 844 serial number 13237 and below, 853 serial number 12024 and below, 854 serial number 12076 and below, 863 serial number 12322 and below, 864 serial number 12080 and below, 873 serial number 12024 and below, 874 serial number 12019 and below, 883 serial number 12092 and below, 884 serial number 30000 and below.

1шт.

46

176391C2

RETAINER

stalk row dr slip clutch spring

1шт.

47

176392C1

LOCK WASHER

stalk row dr slip clutch spring

3шт.

48

176393C1

BOLT,Hex, 3/8" - 16 x 4 1/4", Drilled

stalk row dr slip clutch

4шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 znd hex slt

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 znd

1шт.

49

176470C2

SHAFT

main drive front outer, 20.5 in., 520.7 mm, 1 used 833 and 843CH w/30 in. row, 1 used 824, 834 and 844CH w/40 in. row, 2 used 853, 863, 873 and 883 CH w/ 30in. row, 2 used 854, 864, 874 and 884CH w/40 in. row

1шт.

49

176469C2

SHAFT

main drive front outer, 21.5 in., 546.1 mm, 824CH w/38 in. row

1шт.

49

176471C2

SHAFT

main drive front outer, 22.5 in. 571.5 mm, 833CH w/28 in. row, 824CH w/36 in. row, 834CH w/38 in. row

1шт.

49

176472C2

SHAFT

main drive front outer, 23.5 in., 596.9 77, 843CH w/28 in. row, 844CH w/38 in. row

1шт.

49

176478C2

SHAFT

main drive front outer, 24.5 in., 622.3 mm, 1 used 834CH w/36 in. row, 2 used 853CH w/28 in. row, 2 used 854CH w/38 in. row

1шт.

49

176473C2

SHAFT

main drive front outer, 25.5 in., 647.7 mm, 2 used 863CH w/28 in. row, 2 used 864CH w/38 in. row

1шт.

49

176476C2

SHAFT

main drive front outer, 26.5 in., 673.1 mm, 1 used 844CH w/36 in. row, 2 used 873CH w/28 in. row, 2 used 874CH w/38 in. row

1шт.

49

176474C2

SHAFT

main drive front outer, 27.5 in., 698.5 mm, 2 used 883CH w/28 in. row, 2 used 884CH w/38 in. row

1шт.

49

176477C2

SHAFT

main drive front outer, 28.5 in., 723.9 mm, 2 used 854CH w/36 in. row

1шт.

49

176475C2

SHAFT

main drive front outer, 30.5 in., 774.7 mm, 30.5 in., 2 used 864CH w/36 in. row

1шт.

49

176498C2

SHAFT

main drive front outer, 32.5 in., 825.5 mm, 2 used 874CH w/36 in. row

1шт.

49

199229C1

SHAFT

main drive front outer, 34.5 in., 876.3 mm, 2 used 884CH w/36 in. row

1шт.

50

176462C2

SHAFT, main drive center, 8.2 in., 208.3 mm, 833 and 843CH w/28 in. row

1шт.

50

176453C2

SHAFT

main drive center, 10.2 in., 259.1 mm, 833 and 843CH w/30 in. row

1шт.

50

176461C2

SHAFT

main drive center, 11.5 in., 292.1 mm, 1 used 833CH w/28 in. row, 2 used 843CH w/28 in. row, 3 used 853CH w/28 in. row, 4 used 863CH w/28 in. row, 5 used 873CH w/28 in. row, 6 used 883CH w/28 in. row

1шт.

50

176452C2

SHAFT

main drive center, 13. 5 in., 342.9 mm, 1 used 833CH w/30 in. row, 2 used 843CH w/30 in. row, 3 used 853CH w/30 in. row, 4 used 863CH w/30 in. row, 5 used 873CH w/30 in. row, 6 used 883CH w/30 in. row

1шт.

50

176460C2

SHAFT

main drive center, 16.2 in., 411.5 mm, 824, 834 and 844CH w/36 in. row

1шт.

50

176451C2

SHAFT

main drive center, 18.2 in., 462.3 mm, 824, 834 and 844CH w/38 in. row

1шт.

50

176459C2

SHIELD

SHAFT, main drive center, 19.5 in., 495.3 mm, 1 used 834CH w/36 in. row, 2 used 844CH w/36 in. row, 3 used 854CH w/36 in. row, 4 used 864CH w/36 in. row, 5 used 874CH w/36 in. row, 6 used 884CH w/36 in. row

1шт.

50

176458C2

SHAFT

main drive center, 20.2 in., 513.1 mm, 824, 834 and 844CH w/40 in. row

1шт.

50

176450C2

SHAFT

main drive center, 21.5 in., 546.1 mm, 1 used 834CH w/38 in. row, 2 used 844CH w/38 in. row, 3 used 854CH w/38 in. row, 4 used 864CH w/38 in. row, 5 used 874CH w/38 in. row, 6 used 884CH w/38 in. row

1шт.

50

176457C2

SHAFT

main drive center, 23.5 in., 596.9 mm, 1 used 834CH w/40 in. row, 2 used 844CH w/40 in. row, 3 used 854CH w/40 in. row, 4 used 864CH w/40 in. row, 5 used 874CH w/40 in. row, 6 used 884CH w/40 in. row

1шт.

51

NS

NOT SERVICED

HOLDER, stalk row drive slip clutch ratchet, no longer available

1шт.

52

176387C1

HUB

stalk row drive

1шт.

53

199177C1

SPACER

stalk row dr slip clutch

4шт.

25784R1

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

3/8 x 4-1/4 PHC type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

54

178647C2

COUPLING, BREAK AWAY

COUPLING, main drive center, 2 used 824CH, 4 used 833 and 834 CH, 6 used 843, 844, 853 and 854CH, 8 used 863 and 864CH, 10 used 873 and 874CH, 12 used 883 and 884CH

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd hex nylon insert

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd cap

1шт.

55

180032C1

HOLDER

RETAINER, slip clutch ratchet, see note 2

1шт.

824 serial number 12209 and above, 833 serial number 12072 and above, 834 serial number 12086 and above, 843 serial number 12304 and above, 844 serial number 13238 and above, 853 serial number 12025 and above, 854 serial number 12077 and above, 863 serial number 12323 and above, 864 serial number 12081 and above, 873 serial number 12025 and above, 874 serial number 12020 and above, 883 serial number 12093 and above, 884 serial number 30001 and above

1шт.

407364R2

LUBRICANT

LUBE, gear IH SAE 85w-140

1шт.

407367R1

SPARE PART

LUBE, gear IH SAE 85w-140

1шт.
