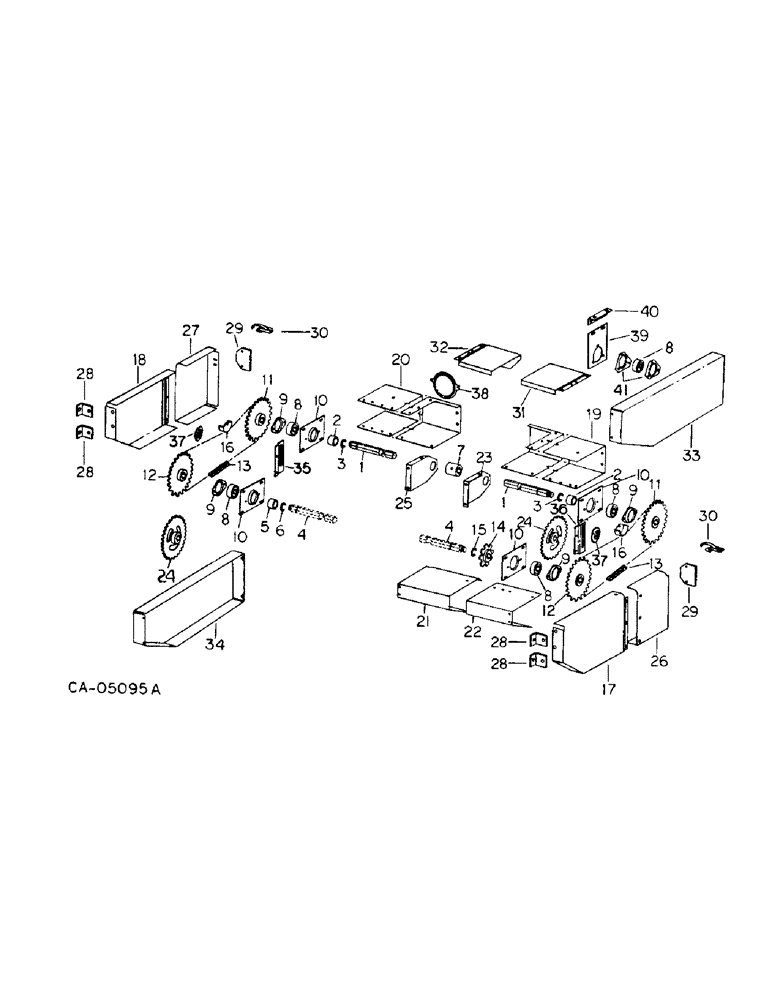

Запчасти Case IH 800 - SERIES (A-18) - MAIN DRIVE AND SHIELDING, 853, 854, 863, 864, 873, 874 AND 883 CORN HEADS (58) - ATTACHMENTS/HEADERS

1

176323C2

SHAFT

main drive rear, 853CH

2шт.

1

176413C2

SHAFT

main drive rear, 854CH

2шт.

1

176324C2

SHAFT

main drive rear, 863CH

2шт.

1

176325C2

SHAFT

main drive rear, 864CH

2шт.

1

179530C2

SHAFT, main drive rear, 873CH

2шт.

1

179534C2

SHAFT, main drive rear, 874CH

2шт.

1

176326C2

SHAFT

main drive rear, 883CH

2шт.

1

199230C1

SHAFT

main drive rear, 884CH

2шт.

2

176337C1

SPACER

main drive rear shaft

2шт.

3

575186R1

SNAP RING

RING, main drive rear shaft snap

2шт.

4

SHAFT, main drive front outer, refer to stalk roll and gatherer drive gear case and slip clutch

1шт.

5

176337C1

SPACER

main drive front RH shaft

1шт.

6

575186R1

SNAP RING

RING, main drive front RH shaft snap

1шт.

7

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, main drive rear RH

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd hex nylon insert

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

1шт.

8

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, main drive shaft ball, 4 used 853, 854, 863, 864, 873, 874 and 883CH, 6 used 884CH

1шт.

9

599382R1

FLANGED BEARING

main drive shaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

10

176338C1

FLANGED BEARING

FLANGE, main drive shaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

11

176340C1

DRIVE SPROCKET

SPROCKET, main drive 24T, standard for 853, 854, 863, 864, 873, 874 and 883CH

2шт.

11

199181C1

PINION

SPROCKET ASSY, main drive 28T, standard for 884CH

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

12

176340C1

DRIVE SPROCKET

SPROCKET, main driven 24T, standard for 853, 854, 863, 864, 873, 874 and 883CH

2шт.

12

199181C1

PINION

SPROCKET ASSY, main driven 28T, standard for 884CH, optional w/176340C, parts accessories, 940 RPM

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

13

CHAIN ASSY, main drive, not for 884CH, use 89 links from 10 ft roll marked 1793D and one connecting link 1786D

2шт.

1786D

LINK

#60H single pitch connecting

1шт.

13

CHAIN ASSY, main drive, for 884CH, use 93 links from 10 ft roll marked 1793D and one connecting link 1786D

1шт.

1786D

LINK

#60H single pitch connecting

1шт.

14

176342C1

SPROCKET,8T

SPROCKET, auger drive 8T

1шт.

15

575186R1

SNAP RING

RING, main drive shaft

1шт.

16

176343C1

TENSIONER

BLOCK, main drive tightener, serial no. 26000 and below

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

199132C1

SHIELD

ASSY, main drive frt RH, serial no. 23001 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

18

199133C1

SHIELD

ASSY, main drive frt RH, serial no. 23001 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

19

199037C1

CHANNEL

main drive rear shaft LH, 853CH

1шт.

19

199039C1

CHANNEL, main drive rear shaft LH, 854CH

1шт.

19

199041C1

CHANNEL

main drive rear shaft LH, 863CH

1шт.

19

199043C1

CHANNEL, main drive rear shaft LH, 864CH

1шт.

19

199047C1

CHANNEL, main drive rear shaft LH, 874CH

1шт.

19

199049C1

CHANNEL, main drive rear shaft LH, 883CH

1шт.

19

199051C1

CHANNEL, main drive rear shaft LH, 884CH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt hd

1шт.

20

199038C1

CHANNEL, main drive rear shaft RH, 853CH

1шт.

20

199040C1

CHANNEL, main drive rear shaft RH, 854CH

1шт.

20

199042C1

CHANNEL

main drive rear shaft RH, 863CH

1шт.

20

199044C1

CHANNEL, main drive rear shaft RH, 864CH

1шт.

20

199048C1

CHANNEL, main drive rear shaft RH, 874CH

1шт.

20

199050C1

CHANNEL, main drive rear shaft RH, 883CH

1шт.

20

199052C1

CHANNEL, main drive rear shaft RH, 884CH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

21

176275C1

SHIELD

main drive front shaft RH, 4 used 853CH, 5 used 863CH, 6 used 873CH, 7 used 883CH

1шт.

21

176276C1

SHIELD

main drive front shaft RH, 4 used 854CH, 5 used 864CH, 6 used 874CH, 7 used 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

22

176277C1

SHIELD

main drive front shaft RH, 4 used 853 and 854CH, 5 used 863 and 864CH, 6 used 873 and 874CH, 7 used 883 and 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt truss-hd

1шт.

23

199225C1

SUPPORT

ASSY, main drive rear shaft LH, 1 used 853, 854 and 863 CH, 2 used 864, 873, 874, 883 and 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

24

178666C1

DRIVE SPROCKET

SPROCKET, main drive driven 32T, intermediate speed for 884, slow speed for others

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

25

199226C1

SUPPORT

ASSY, main drive rear shaft RH, 1 used 853, 854 and 863 CH, 2 used 864, 873, 874, 883 and 884CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt truss-hd

1шт.

26

199137C1

SUPPORT

main drive chain rear LH, serial no. 23001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

27

199138C1

SUPPORT

main drive chain rear RH, serial no. 23001 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

28

180031C1

ANGLE

main drive chain shield support LH and RH, serial no. 23001 and above

2шт.

29

199286C1

BAR

main drive chain shield LH and RH, serial no. 23001 and above

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

30

168481C1

LATCH ASSY.

LATCH, main drive chain shield, serial no. 23001 and above

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znd slt pan-hd

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

607893R1

WASHER

.203 x .500 x .054 znd

1шт.

31

199062C2

GROMMET

SHIELD ASSY, main drive coupler LH, 853, 854, and 863CH

1шт.

31

199058C2

SHIELD

ASSY, main drive coupler LH, 864, 873, 874 and 883CH

1шт.

31

199215C1

SHIELD ASSY, main drive coupler LH, 884CH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

32

199063C2

SHIELD

main drive coupler RH, 853, 854 and 863CH

1шт.

32

199059C2

SHIELD ASSY, main drive coupler RH, 864, 873, 874 and 883CH

1шт.

32

199216C1

SHIELD ASSY, main drive coupler RH, 884CH

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd slt truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

33

176401C1

SHIELD

ASSY, main drive LH, serial no. 23000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

34

176402C1

SHIELD ASSY, main drive RH, serial no. 23000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

199152C1

SUPPORT

main drive chain tightener RH, serial no. 26001 and above

1шт.

36

199151C1

SUPPORT

main drive chain tightener LH, serial no. 26001 and above

1шт.

37

629972R91

DRIVE SPROCKET,15T

SPROCKET, main drive tightener, serial no. 26001 and above

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 crg type 1

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 x 1.500 x .090 sq hd

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

38

188315C1

DOOR

main drive rear shaft shield, 884CH

4шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

935735R1

WING NUT

1/4 wing

1шт.

39

199274C1

BAR, main drive rear shaft brg, 884CH

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange

1шт.

40

199273C1

ANGLE, main drive rear shaft brg, 884CH

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

41

180955C1

FLANGED BEARING,0.375"

FLANGE, main drive shaft inner bearing, 884CH

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
