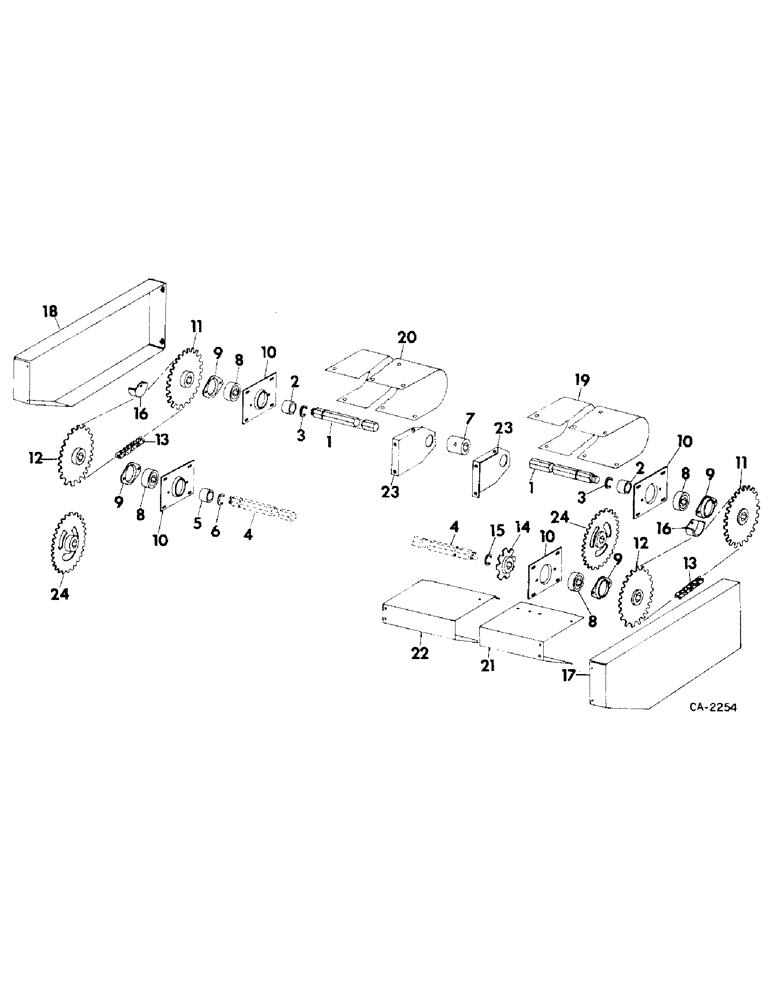

Запчасти Case IH 800 - SERIES (A-16) - MAIN DRIVE AND SHIELDING, 853, 854, 863, 864, 873, 874 AND 883 CORN HEADS (58) - ATTACHMENTS/HEADERS

1

176323C2

SHAFT

main drive rear, 853CH

2шт.

1

176413C2

SHAFT

main drive rear, 854CH

2шт.

1

176324C2

SHAFT

main drive rear, 863 CH

2шт.

1

176325C2

SHAFT

main drive rear, 864CH

2шт.

1

179530C2

SHAFT, main drive rear, 873CH

2шт.

1

179534C2

SHAFT, main drive rear, 874CH

2шт.

1

176326C2

SHAFT

main drive rear, 883CH

2шт.

2

176337C1

SPACER

main drive rear shaft

3шт.

3

575186R1

SNAP RING

RING, main drive rear shaft snap

3шт.

4

SHAFT, main drive front outer, refer to stalk roll and gatherer drive gear case and slip clutch

1шт.

5

176337C1

SPACER

main drive front RH shaft

1шт.

6

575186R1

SNAP RING

RING, main drive front RH shaft snap

1шт.

7

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, main drive rear RH

1шт.

231-1448

NUT,1/2"-13, GB

1/2 znd hex nylon insert

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

1шт.

8

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, main drive shaft ball

4шт.

9

599382R1

FLANGED BEARING

main drive shaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

10

176338C1

FLANGED BEARING

FLANGE, main drive shaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

11

176340C1

DRIVE SPROCKET

SPROCKET, main drive 24T

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

12

176340C1

DRIVE SPROCKET

SPROCKET, main driven 24T

2шт.

12

199181C1

PINION

SPROCKET ASSY, main driven 28T, 940 RPM, parts accessories

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.

13

CHAIN ASSY, main drive, use 89 links from 10 ft roll marked 1793D and one connecting link 1786D

2шт.

1786D

LINK

#60H single pitch connecting

1шт.

14

176342C1

SPROCKET,8T

SPROCKET, auger drive 8T

1шт.

15

575186R1

SNAP RING

RING, main drive shaft

1шт.

16

176343C1

TENSIONER

BLOCK, main drive tightener

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

176401C1

SHIELD

ASSY, main drive front LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

176402C1

SHIELD ASSY, main drive front RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

176348C1

CHANNEL, main drive rear shaft LH, 853CH

1шт.

19

176414C1

CHANNEL, main drive rear shaft LH, 854CH

1шт.

19

176349C1

SHIELD

CHANNEL, main drive rear shaft LH, 863CH

1шт.

19

176351C1

CHANNEL, main drive rear shaft LH, 864CH

1шт.

19

179531C1

SHIELD, main drive rear shaft LH, 873CH

1шт.

19

179535C1

CHANNEL, main drive rear shaft LH, 874CH

1шт.

19

176353C1

CHANNEL, main drive rear shaft LH, 883CH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt hd

1шт.

20

176348C1

CHANNEL, main drive rear shaft RH, 853CH

1шт.

20

176414C1

CHANNEL, main drive rear shaft RH, 854CH

1шт.

20

176349C1

SHIELD

main drive rear shaft RH, 863CH

1шт.

20

176352C1

CHANNEL, main drive rear shaft RH, 864CH

1шт.

20

179352C1

SHIELD, main drive rear shaft RH, 873CH

1шт.

20

176536C1

TUBE,60.325 mm OD

CHANNEL, main drive rear shaft RH, 874CH

1шт.

20

176354C1

CHANNEL, main drive rear shaft RH, 883CH

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd flange lock

1шт.

21

176275C1

SHIELD

main drive front shaft RH, 4 used 853CH, 5 used 863CH, 6 used 873CH, 7 used 883CH

1шт.

21

176276C1

SHIELD

main drive front shaft RH, 4 used 854CH, 5 used 864CH, 6 used 874CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

22

176277C1

SHIELD

main drive front shaft LH, 4 used 853 and 854CH, 5 used 863 and 864CH, 6 used 873 and 874CH, 7 used 883CH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

23

176403C1

SUPPORT

ASSY, main drive rear shaft LH, 1 used 853, 854 and 863CH 2 used 873, 874 and 883CH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

1шт.

24

178666C1

DRIVE SPROCKET

SPROCKET, main drive driven 32T, slow speed

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4 znd nylon insert

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga znd

1шт.
