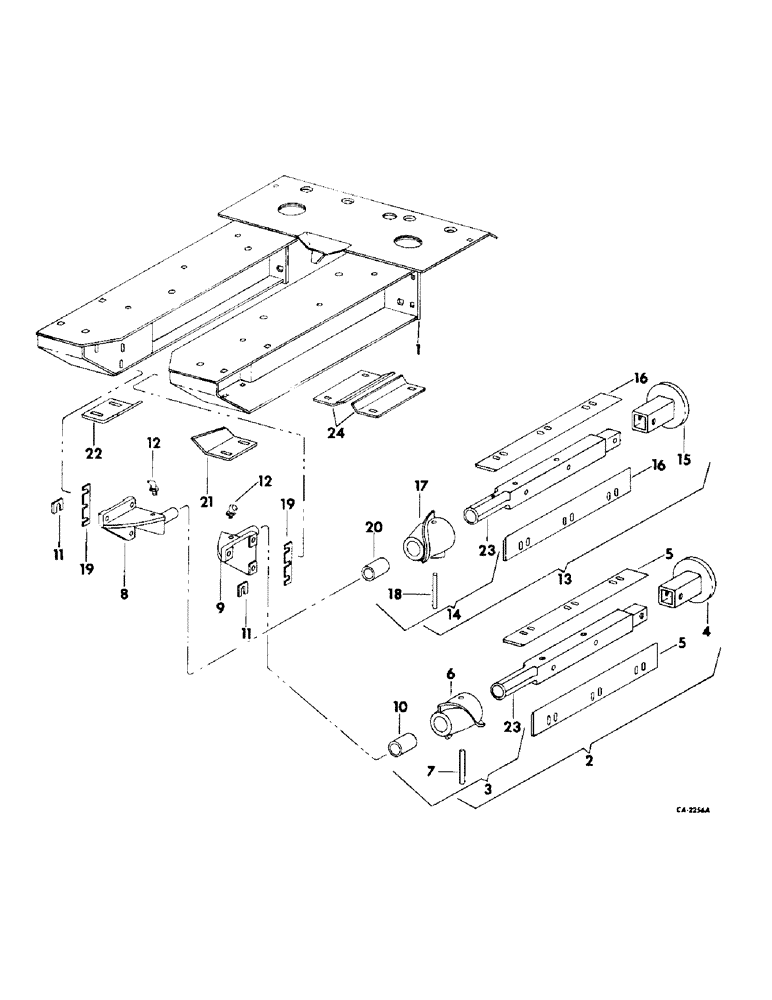

Запчасти Case IH 800 - SERIES (A-10) - STALK ROLL FRAMES, ROLLS AND SUPPORTS (58) - ATTACHMENTS/HEADERS

1

176265C3

FRAME

ASSY, stalk roll

1шт.

ref # 1 - triangular piece on top plate between the two arms is 1306207c1. bp 9/98

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

SCREW, 1/2 x 1 znd hex-hd cap

1шт.

938275R91

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 3/4"

SCREW W/LOCK WASHER, 3/8 x 3/4 hex-soc-f-hd mach

1шт.

2

176298C91

ROLL

ASSY, stalk LH, includes ref. nos. 3 thru 7, 10 and 23

1шт.

3

176482C91

SHAFT

ASSY, stalk roll LH, includes ref. nos. 6, 7, 10 and 23

1шт.

4

176301C1

CONNECTION

COUPLING ASSY, stalk roll shaft

1шт.

5

176304C2

KNIFE ASSY,457.2mm L x 71.12mm W x 5.46mm Thk

SECTION, stalk roll knife

4шт.

181696

1/2 x 1 znd hex-hd cap

1шт.

25710R1

WASHER

17/32 x 1-1/16 x 10 ga hard

1шт.

5

B94594

KIT

REPAIR KIT - 800 CORN HEAD

1шт.

6

176305C1

WORM

POINT, stalk roll LH

1шт.

7

176307C1

RIVET,9.53mm OD x 76.2mm L

PIN, stalk roll point

1шт.

8

176310C3

BRACKET

SUPPORT, stalk roll lower RH

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 znd hex-hd flange

1шт.

9

176309C3

BRACKET

SUPPORT, stalk roll lower LH

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 znd hex-hd flange

1шт.

10

176311C1

BUSHING,22.48mm ID x 30.28mm OD x 50.8mm L

BEARING, stalk roll support

1шт.

11

151670C1

SHIM

SHIM, stalk roll lower support

1шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 NPT 90 deg lub

2шт.

13

176299C91

ROLL

ASSY, stalk RH, includes ref. nos. 14, 15, 16, 17, 18, 20 and 23

1шт.

14

176483C91

SHAFT

ASSY, stalk roll RH, includes ref. nos. 17, 18, 20 and 23

1шт.

15

176301C1

CONNECTION

COUPLING ASSY, stalk roll shaft

1шт.

16

176304C2

KNIFE ASSY,457.2mm L x 71.12mm W x 5.46mm Thk

SECTION, stalk roll knife

4шт.

86837293

SHAFT

1/2 x 1 znd hex-hd cap

1шт.

25710R1

WASHER

17/32 x 1-1/16 x 10 ga hard

1шт.

17

176306C1

WORM

POINT, stalk roll RH

1шт.

18

176307C1

RIVET,9.53mm OD x 76.2mm L

PIN, stalk roll point

1шт.

19

176481C1

SHIM

stalk roll lower support

1шт.

20

176311C1

BUSHING,22.48mm ID x 30.28mm OD x 50.8mm L

BEARING, stalk roll support

1шт.

21

178667C1

KNIFE ASSY

KNIFE, front weed LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

22

178668C1

KNIFE

front weed RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

23

SHAFT, stalk roll, not serviced separately, order shaft assy, 176482C91 or 176483C91

1шт.

24

180034C92

PACKAGE

KNIFE PACKAGE, rear weed, one package per row

1шт.

1327126C1B

KNIFE

CORN HEAD KNIFE 800, 900, 1000

1шт.

B92766A

KIT

COMPLETE STALK ROLL - 1 ROW

1шт.
