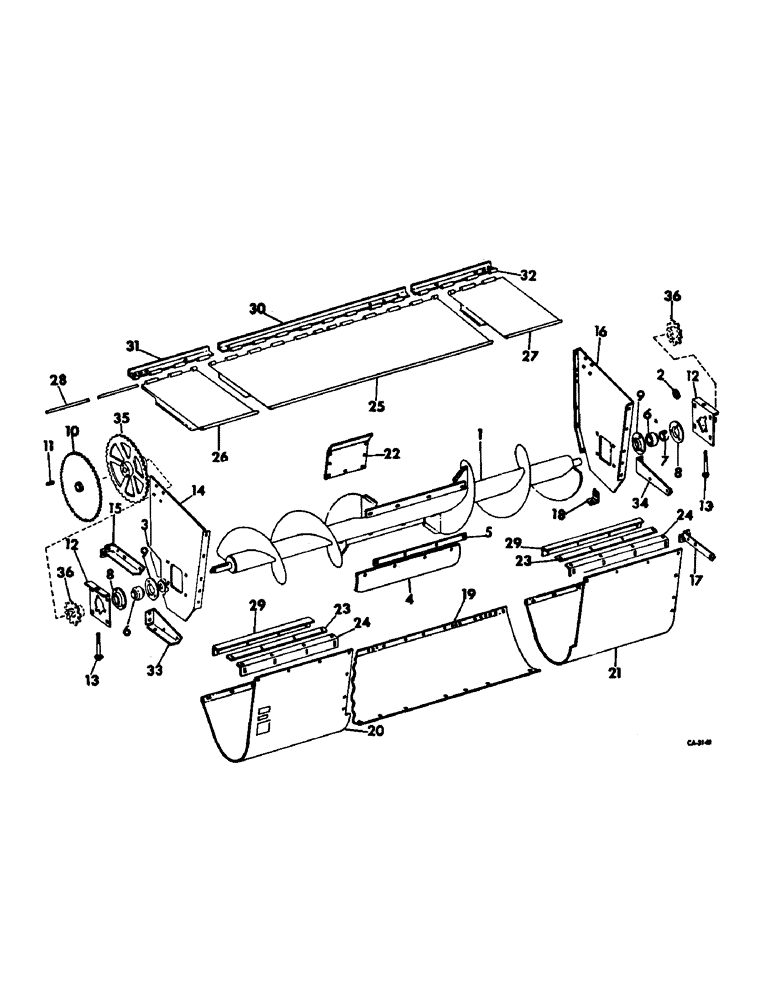

Запчасти Case IH 782 (P-08) - AUGER, DOORS, AND SHIELDS (58) - ATTACHMENTS/HEADERS

1

162985C91

AUGER, assy

1шт.

163307C1

JAM NUT

3/4-16 NF C-Z slt-hex jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

406908R1

WASHER, 17/32 x 1-1/2 x 11 ga C-Z

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

654283R1

THRUST WASHER

auger shaft

1шт.

3

632156R1

THRUST WASHER

auger shaft

5шт.

4

162993C1

STRIP

BAT, auger

2шт.

5

162992C1

RETAINER, auger bat

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

6

156011C91

BALL BEARING

BEARING ASSY, auger ball

2шт.

7

557995R11

COLLAR

W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

8

939460R91

FLANGE

ASSY, auger shaft bearing

2шт.

9

939461R1

FLANGE

auger shaft bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

10

162994C91

SPROCKET ASSY, auger driven, 60T, serial no. 512 and below

1шт.

11

577147R1

KEY

5/16 x 1-3/16 sq-parallel, serial no. 512 and below

1шт.

11

151257C1

KEY, 5/16 x 1-3/4 sq-parallel, serial no. 513 and above

1шт.

12

166046C2

BRACKET, auger bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

8шт.

13

455300R1

BOLT, auger bearing bracket

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

14

169071C2

SECTION, auger trough end LH

1шт.

15

167859C2

SUPPORT, auger trough end LH, serial no. 512 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

169072C2

SECTION, auger trough end RH

1шт.

17

167860C2

SUPPORT, auger trough end RH, serial no. 512 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

169073C1

ANGLE, auger end sheet

4шт.

19

163092C2

TROUGH, auger center, serial no. 512 and below

1шт.

19

173443C1

TROUGH, auger center, serial no. 513 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

9шт.

16508R1

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

9шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

5шт.

20

163106C11

TROUGH ASSY, auger outer LH, serial no. 512 and below

1шт.

20

173422C1

TROUGH ASSY, auger outer LH, serial no. 513 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

21

163107C11

TROUGH ASSY, auger outer RH, serial no. 512 and below

1шт.

21

173425C1

TROUGH ASSY, auger outer RH, serial no. 513 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

22

163256C11

SHIELD ASSY, auger front center, serial no. 512 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

2шт.

22

173439C1

SHIELD, auger front center, serial no. 513 and above

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd hex-hd mach

4шт.

150100C1

SPRING NUT

5/16 speed

4шт.

23

168176C1

STRIP, auger stripper, optional

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

10шт.

24

168183C1

ANGLE, auger stripper, optional

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

25

168328C11

DOOR ASSY, auger center, serial no. 512 and below

1шт.

25

173521C1

DOOR ASSY, auger center, serial no. 513 and above

1шт.

26

163143C92

DOOR ASSY, auger outer left

1шт.

27

163144C92

DOOR ASSY, auger outer right

1шт.

28

163150C1

ROD, auger door hinge

2шт.

29

163088C1

ANGLE, auger door, serial no. 512 and below

2шт.

29

173539C1

ANGLE, auger door LH, serial no. 513 and above

1шт.

29

173540C1

ANGLE, auger door RH, serial no. 513 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

30

156761C2

HINGE, auger door center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

31

163120C1

HINGE, auger door outer LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

32

163121C1

HINGE, auger door outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

33

173426C1

SUPPORT, auger trough end LH, serial no. 513 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

173427C1

SUPPORT, auger trough end RH, serial no. 513 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

174721C1

SPROCKET, auger driven 60T, serial no. 513 and above

1шт.

36

SPROCKET, beater drive 11T, refer to beater and beater drive unit for listing

2шт.
